B 530 - Shindaiwa Brush Cutter (SN: 20009784 - 20011623) Cylinder / Intake / Muffler Parts Diagram

Brush Cutter

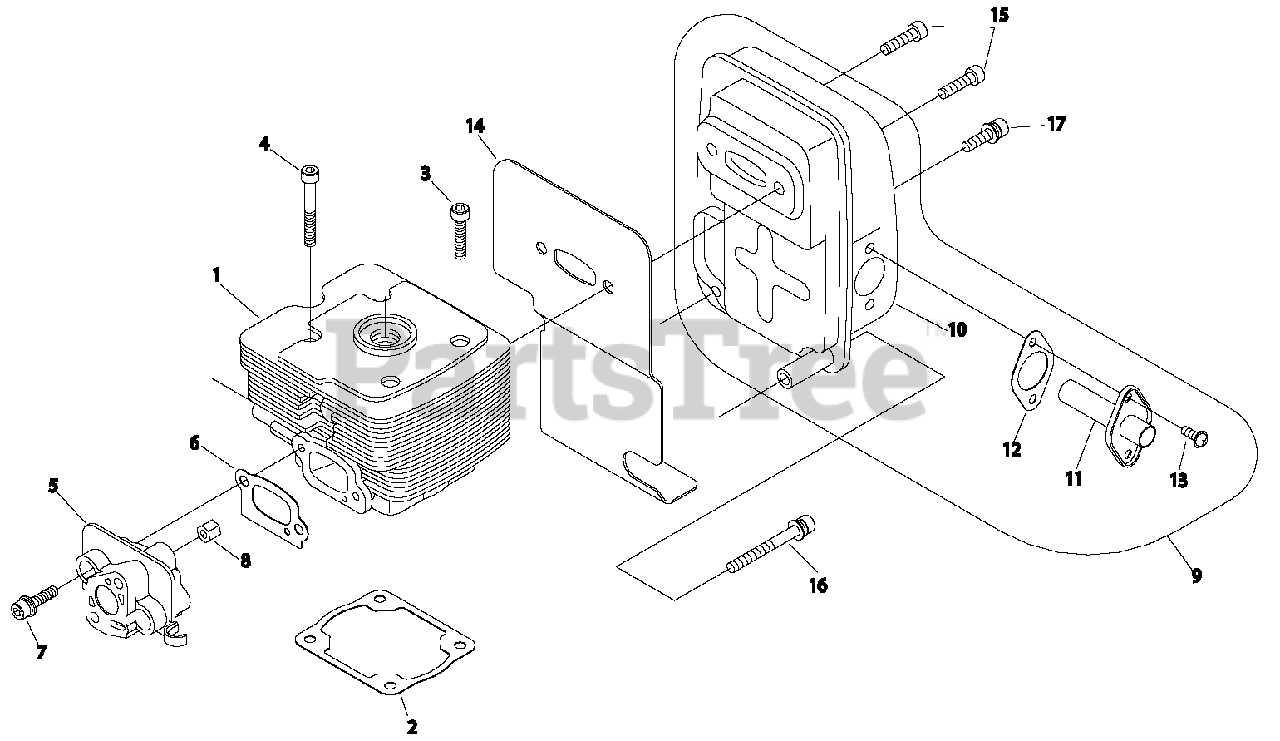

Cylinder / Intake / Muffler Parts Diagram

  • Title

1

Echo A130001350

CYLINDER

Note: 62035-12111

$

$

Currently unavailable

2

Echo V100000450

GASKET, CYLINDER

Note: 62035-12120

$1.99

$

Usually ships in 2-4 days

0

3

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 19

0

4

Echo 90010505035

SCREW - 5X35

Note: 01020-05350

$1.49

$

In Stock, only 1 left!

0

5

Echo A200000680

INSULATOR, INTAKE

Note: 62035-12210

$18.99

$

Usually ships in 2-4 days

0

6

Echo V103001020

GASKET, INTAKE

Note: 62035-12220

$1.49

$

Usually ships in 2-4 days

0

7

Echo V203000580

SCREW - 5X30
(Superseded to V203000581)

Note: 11022-05300

$

$

Not available

8

Echo V263000180

NUT

Note: 20024-12260

$0.99

$

In Stock, only 1 left!

0

9

Echo A030000270

MUFFLER ASSY

Note: 62035-15012

$54.99

$

Usually ships in 2-4 days

0

10

Echo A300001140

MUFFLER

Note: 62035-15111

$49.99

$

Usually ships in 2-4 days

0

11

Echo A313001300

GUIDE, EXHAUST

Note: 62035-15140

$7.49

$

Usually ships in 2-4 days

0

12

Echo V104001350

SHIELD, EXHAUST

Note: 62035-15150

$1.99

$

Usually ships in 2-4 days

0

13

Echo V252000180

SCREW - 4X12

Note: 11238-04120

$0.99

$

In Stock, Qty 16

0

14

Echo V104001360

SHIELD, EXHAUST

Note: 62035-15210

$8.49

$

Usually ships in 2-4 days

0

15

Echo 90010506025

SCREW - 6X25

Note: 01020-06250

$1.49

$

In Stock, only 4 left!

0

16

Echo V203000610

SCREW - 5X45

Note: 11022-05450

$1.99

$

In Stock, Qty 20+

0

17

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 15

0
