B 530 - Shindaiwa Brush Cutter (SN: 09018344 - 09099783) Fuel Tank Parts Diagram

Brush Cutter

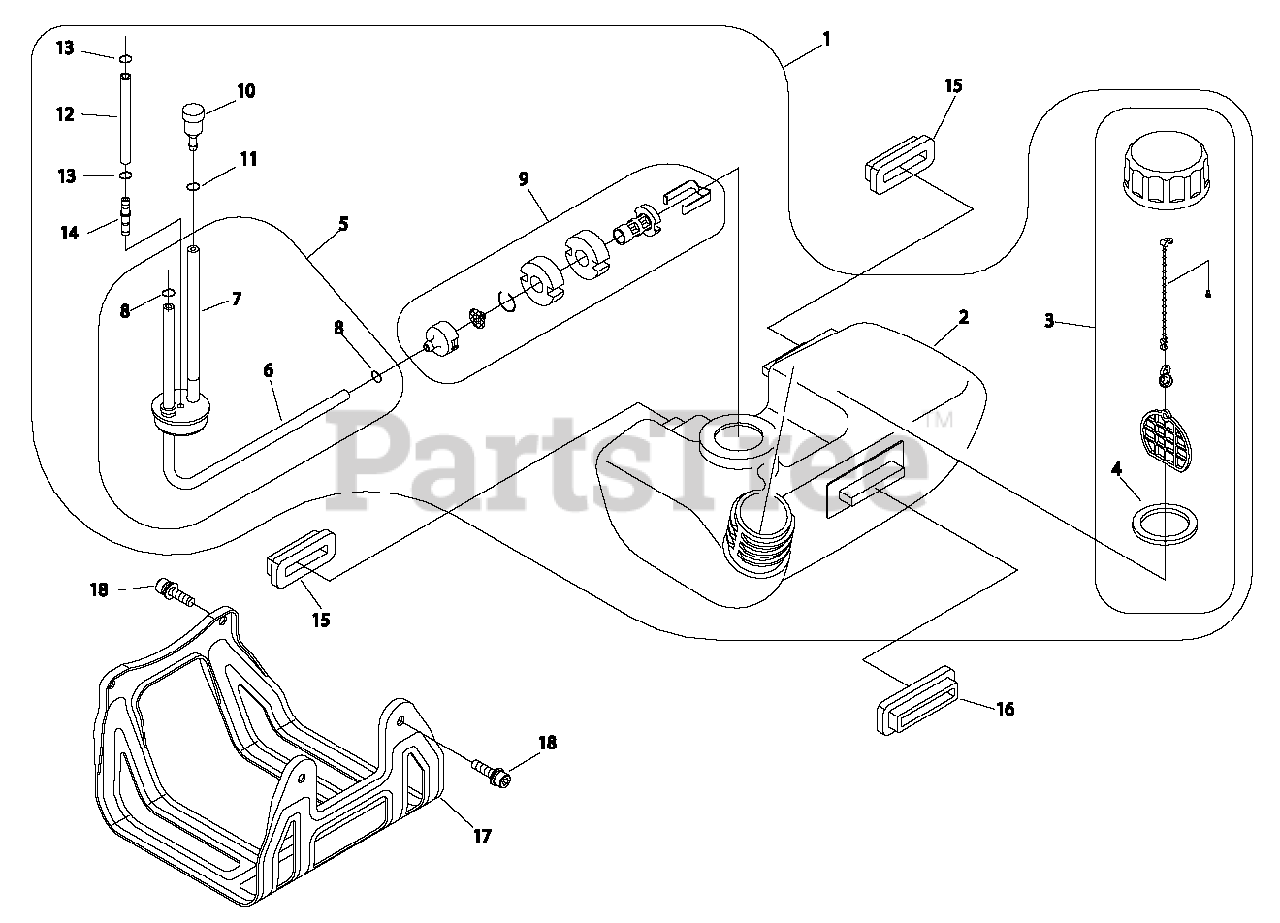

Fuel Tank Parts Diagram

  • Title

1

Echo A038000330

FUEL TANK ASSY
(Superseded to P021040561)

Note: 62035-85013

$56.99

$

Usually ships in 2-4 days

0

2

Echo A350001370

TANK, FUEL

Note: 62035-85111

$24.99

$

Usually ships in 2-4 days

0

3

Echo A033000330

CAP ASSY - RED

Note: 70168-85201

$7.49

$

In Stock, only 1 left!

0

4

Echo V107000010

GASKET, CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 20+

0

5

Echo P021034560

FUEL PIPE ASSY
(Superseded to P021034561)

Note: 62035-85031

$11.99

$

Usually ships in 2-4 days

0

6

Echo V471002480

PIPE - FUEL
(Superseded to V471002481)

Note: 62035-85310

$1.99

$

In Stock, Qty 14

0

7

Echo V137000090

PIPE - VENT
(Superseded to V137000091)

Note: 62035-85321

$6.49

$

Usually ships in 2-4 days

0

8

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

9

Echo A369000100

FUEL FILTER ASSY
(Superseded to A369000101)

Note: 22169-35400

$9.49

$

In Stock, Qty 20+

0

10

Echo A356000050

VENT, FUEL TANK

Note: 22197-33960

$8.49

$

In Stock, only 2 left!

0

11

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

12

Echo V471002490

PIPE - RETURN

Note: 20140-83311

$1.99

$

In Stock, Qty 11

0

13

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

14

Echo V186000210

CONNECTOR, PIPE

Note: 72933-85620

$1.99

$

In Stock, only 4 left!

0

15

Echo V420002510

CUSHION, FUEL TANK

Note: 62035-85341

$1.99

$

Usually ships in 2-4 days

0

16

Echo V420002520

CUSHION, FUEL TANK

Note: 62035-85351

$1.99

$

Usually ships in 2-4 days

0

17

Echo A175000210

GUARD, FUEL TANK

Note: 62035-85360

$56.99

$

Usually ships in 2-4 days

0

18

Echo V203000590

SCREW - 5X16
(Superseded to V203000591)

Note: 11022-05160

$0.99

$

In Stock, Qty 15

0
