B 530 - Shindaiwa Brush Cutter (Original Version) Crankcase, Cylinder, Muffler Parts Diagram

Brush Cutter

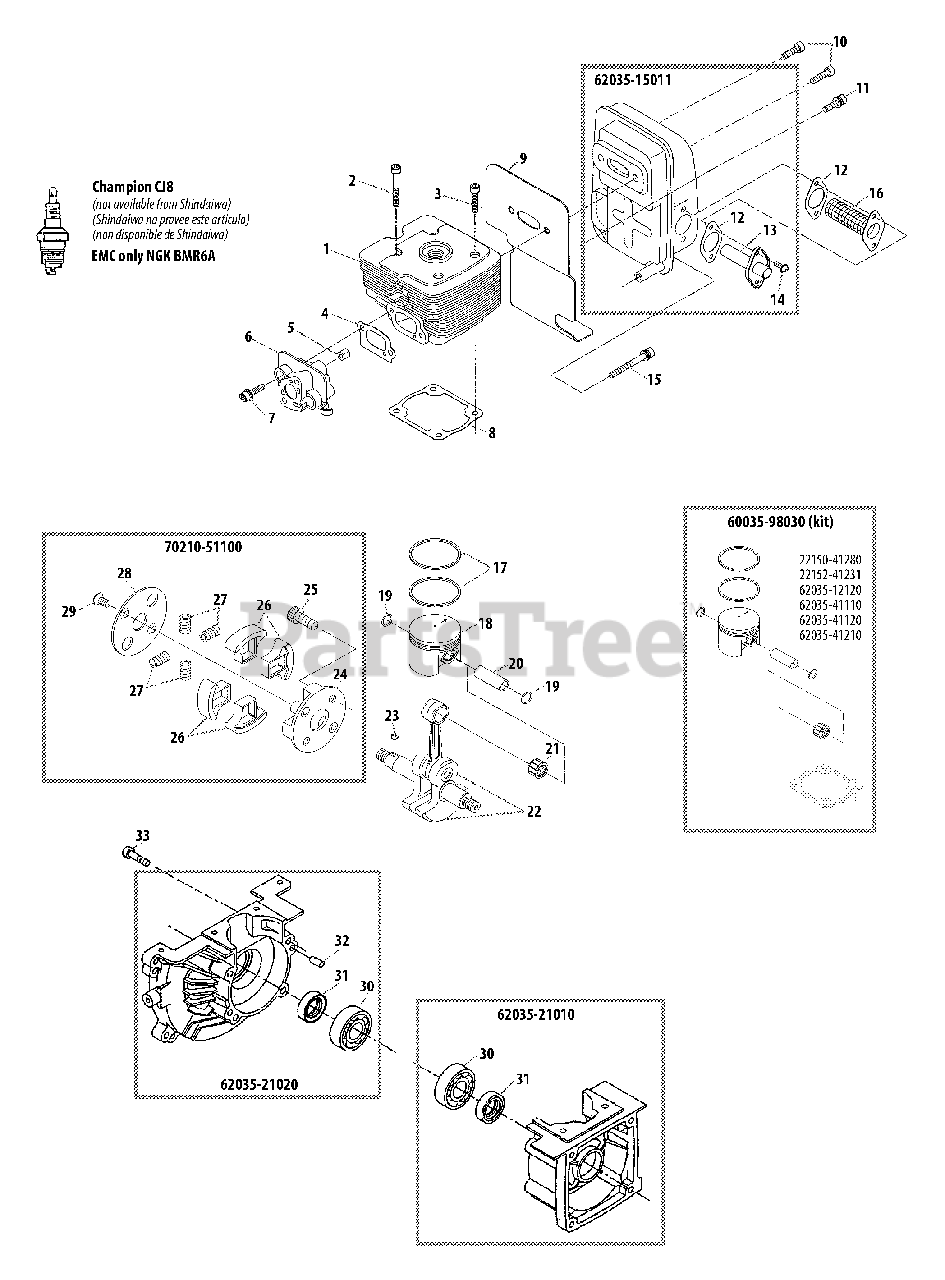

Crankcase, Cylinder, Muffler Parts Diagram

  • Title

1

Echo 62035-12110

CYLINDER
(Superseded to 62035-12111)

$172.99

$

Usually ships in 2-4 days

0

2

Echo 01020-05350

SCREW - 5X35
(Superseded to 90010505035)

$1.49

$

In Stock, only 1 left!

0

3

Echo 01020-05250

SCREW - 5X25
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 19

0

4

Echo 62035-12220

GASKET
(Superseded to V103001020)

$1.49

$

Usually ships in 2-4 days

0

5

Echo 20024-12260

NUT
(Superseded to V263000180)

$0.99

$

In Stock, only 1 left!

0

6

Echo 62035-12210

INSULATOR
(Superseded to A200000680)

$18.99

$

Usually ships in 2-4 days

0

7

Echo 11022-05250

SCREW - 5X25
(Superseded to V203000630)

$0.99

$

In Stock, Qty 20+

0

8

Echo 62035-12120

GASKET, CYLINDER
(Superseded to V100000450)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 62035-15210

GASKET, EXHAUST
(Superseded to V104001360)

$8.49

$

Usually ships in 2-4 days

0

10

Echo 01020-06250

SCREW - 6X25
(Superseded to 90010506025)

$1.49

$

In Stock, only 4 left!

0

11

Echo 11022-05160

SCREW - 5X16
(Superseded to V203000590)

$0.99

$

In Stock, Qty 15

0

62035-15011

Echo 62035-15011

MUFFLER ASSY
(Superseded to 62035-15012)

$54.99

$

Usually ships in 2-4 days

0

12

Echo 62035-15150

GASKET
(Superseded to V104001350)

$1.99

$

Usually ships in 2-4 days

0

13

Echo 62035-15140

TAIL PLATE
(Superseded to A313001300)

$7.49

$

Usually ships in 2-4 days

0

14

Echo 11207-04120

SCREW - 4X12
(Superseded to 11238-04120)

$0.99

$

In Stock, Qty 16

0

15

Echo 11022-05450

SCREW - 5X45
(Superseded to V203000610)

$1.99

$

In Stock, Qty 20+

0

16

Echo 64007-93011

SCREEN, SPARK ARRESTOR
(Superseded to Discontinued)

$

$

Not available

60035-98030

Echo 60035-98030

PISTON ASSY
(Superseded to P021027090)

$72.99

$

Usually ships in 2-4 days

0

8

Echo 62035-12120

GASKET, CYLINDER
(Superseded to V100000450)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 62035-41120

PISTON RING SET
(Superseded to A101000370)

$9.49

$

Usually ships in 2-4 days

0

18

Echo 62035-41110

PISTON
(Superseded to A100000680)

$35.99

$

Usually ships in 2-4 days

0

19

Echo 22152-41231

RING, RETAINING
(Superseded to V580000100)

$0.99

$

In Stock, only 1 left!

0

20

Echo 62035-41210

PIN, PISTON
(Superseded to V609000050)

$7.49

$

Usually ships in 2-4 days

0

21

Echo 22150-41280

BEARING, NEEDLE
(Superseded to V556000030)

$10.99

$

Usually ships in 2-4 days

0

22

Echo 62035-42010

CRANKSHAFT ASSY
(Superseded to A011000840)

$73.99

$

Usually ships in 2-4 days

0

23

Echo 02403-03100

KEY - 3X10
(Superseded to 9311503010)

$0.99

$

In Stock, Qty 20+

0

70210-51100

Echo A056000450

CLUTCH ASSY
(Superseded to A056000451)

$55.99

$

In Stock, only 1 left!

0

24

Echo 20020-51112

HUB, CLUTCH

$

$

Not available

25

Echo 20020-51150

BOLT, CLUTCH
(Superseded to A557000120)

$2.49

$

In Stock, only 2 left!

0

26

Echo 20020-51121

SHOE, CLUTCH
(Superseded to A555000130)

$4.49

$

In Stock, only 1 left!

0

27

Echo 20020-51131

SPRING, CLUTCH
(Superseded to A566000150)

$1.99

$

In Stock, only 1 left!

0

28

Echo 20020-51140

PLATE, CLUTCH
(Superseded to A551000120)

$6.99

$

Usually ships in 2-4 days

0

29

Echo V203000880

SCREW

$0.99

$

In Stock, Qty 9

0

62035-21020

Echo 62035-21020

CRANKCASE ASSY - FRONT
(Superseded to P021027770)

$52.99

$

Usually ships in 2-4 days

0

30

Echo 02030-06202

BEARING, BALL - 6202
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 6

0

31

Echo 20010-21211

SEAL, OIL
(Superseded to V508000050)

$7.49

$

In Stock, Qty 12

0

32

Echo 12492-50100

PIN - LOCATING

$2.49

$

Usually ships in 2-4 days

0

33

Echo 01020-05300

SCREW - 5X30
(Superseded to 90010505030)

$1.49

$

In Stock, only 3 left!

0

62035-21010

Echo 62035-21010

CRANKCASE ASSY - REAR
(Superseded to P021027760)

$47.99

$

Usually ships in 2-4 days

0

30

Echo 02030-06202

BEARING, BALL - 6202
(Superseded to 90081036202)

$9.99

$

In Stock, Qty 6

0

31

Echo 20010-21211

SEAL, OIL
(Superseded to V508000050)

$7.49

$

In Stock, Qty 12

0
