B 530 - Shindaiwa Brush Cutter (Original Version) Accessories Parts Diagram

Brush Cutter

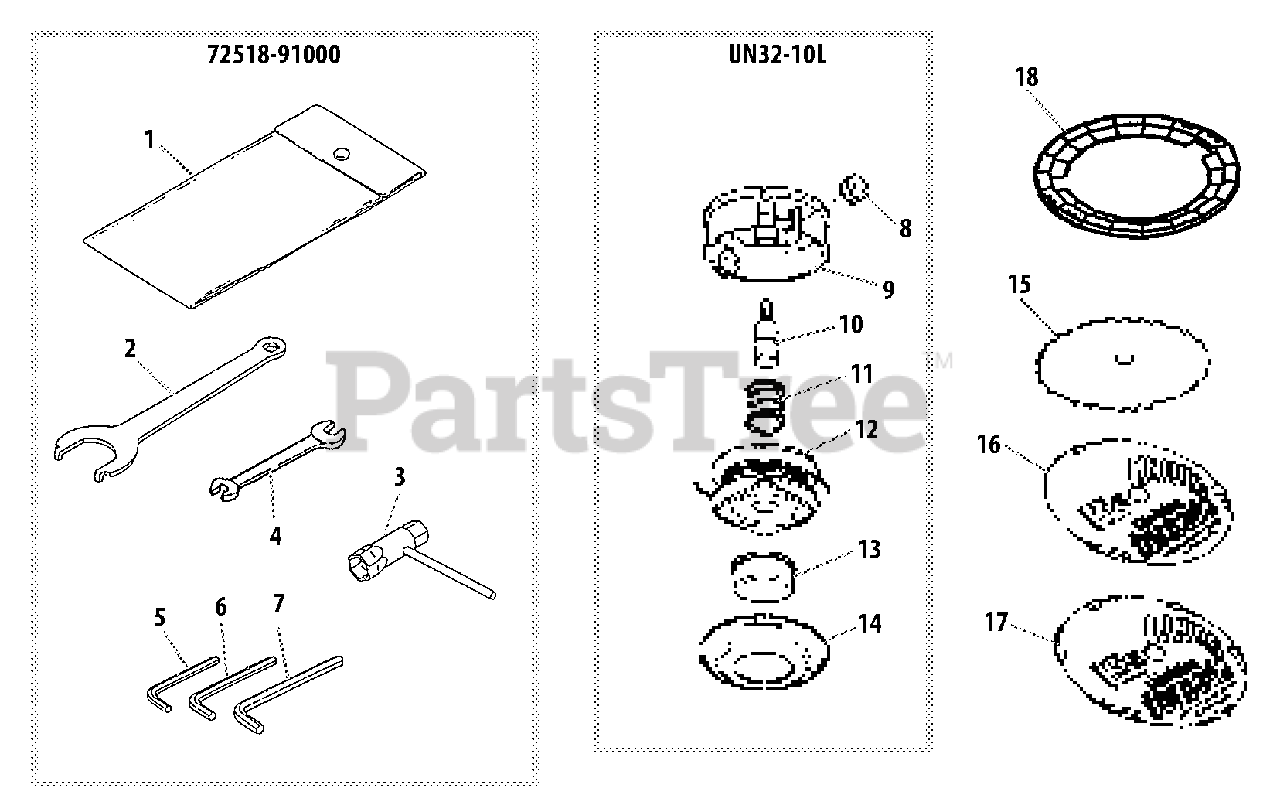

Accessories Parts Diagram

  • Title

72518-91000

Echo 72518-91000

TOOL KIT
(Superseded to Discontinued)

$

$

Not available

1

Echo 19610-02600

BAG, TOOL
(Superseded to 19639-01700)

$2.99

$

Usually ships in 2-4 days

0

2

Echo 22011-97130

SPANNER
(Superseded to X600000000)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 72518-91180

T-WRENCH
(Superseded to X602000140)

$3.49

$

In Stock, Qty 20+

0

4

Echo 22000-91120

SPANNER - 8X10mm
(Superseded to X600000020)

$0.99

$

In Stock, only 3 left!

0

5

Echo 09026-03001

HEX KEY - 3mm
(Superseded to X605000090)

$0.99

$

In Stock, only 3 left!

0

6

Echo 09026-04001

HEX KEY - 4mm
(Superseded to X605000100)

$1.99

$

In Stock, Qty 7

0

7

Echo 09026-05001

HEX KEY - 6mm
(Superseded to X605000070)

$1.49

$

Usually ships in 2-4 days

0

UN32-10L

Echo UN32-10L

TRIMMER HEAD ASSY

Note: OPTIONAL

$

$

Currently unavailable

8

Echo 72005-92630

EYELET

$1.99

$

In Stock, Qty 20+

0

9

Echo 99909-15700

HOUSING

$16.99

$

Usually ships in 2-4 days

0

10

Echo 99909-15740

SHAFT BOLT 10MM LH

Note: 10mm, LH

$6.99

$

Usually ships in 2-4 days

0

11

Echo 99909-15520

SPRING

$1.99

$

In Stock, only 2 left!

0

12

Echo 99909-15580

SPOOL

$11.99

$

In Stock, Qty 5

0

13

Echo 99909-15590

BUTTON

$4.99

$

In Stock, only 4 left!

0

14

Echo 99909-15610

COVER

$13.99

$

Usually ships in 2-4 days

0

15

Echo 22000-92167

BLADE - 30 TOOTH -- 9" (22cm)

$

$

Currently unavailable

16

Echo LP6-9

BLADE - 6 TOOTH -- 9" (22cm)

$

$

Currently unavailable

17

Echo LP12-9

BLADE - 12 TOOTH -- 9" (22cm)

$

$

Currently unavailable

18

Echo 19601-00900

COVER, BLADE
(Superseded to 64007-93310)

$

$

Not available
