B 460 - Shindaiwa Brush Cutter (SN: U08026001001 - U08026999999) RECOIL STARTER Parts Diagram

Brush Cutter

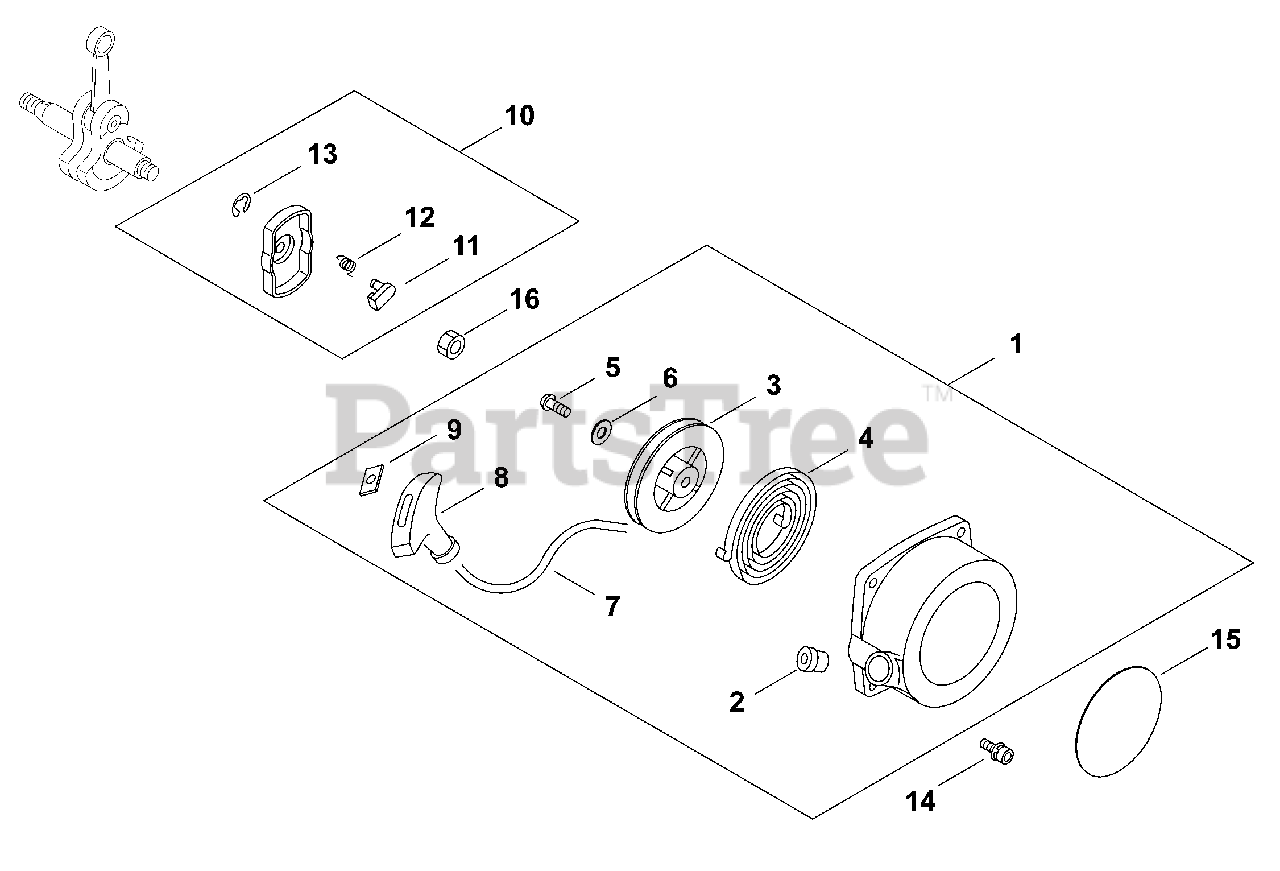

RECOIL STARTER Parts Diagram

  • Title

1

Echo A051000160

STARTER ASSY

Note: Includes Items 2-9

$73.99

$

Usually ships in 2-4 days

0

2

Echo P022045770

GUIDE, ROPE

$3.49

$

Usually ships in 2-4 days

0

3

Echo 17721543130

REEL, ROPE

$15.99

$

In Stock, only 1 left!

0

4

Echo 17722040630

SPRING, RECOIL

$14.99

$

In Stock, Qty 11

0

5

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

6

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

7

Echo 17722601110

ROPE, STARTER 4.0×880

$5.99

$

In Stock, only 1 left!

0

8

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

9

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

10

Echo A052000370

PULLEY ASSY, STARTER

Note: Includes Items 11-13

$13.99

$

In Stock, only 2 left!

0

11

Echo A514000080

PAWL, STARTER
(Superseded to 17721840630)

$3.49

$

In Stock, Qty 6

0

12

Echo V452000520

SPRING, RETURN
(Superseded to 17723440630)

$3.49

$

In Stock, only 2 left!

0

13

Echo V583000140

E-RING 4
(Superseded to P022002100)

$0.99

$

In Stock, Qty 6

0

14

Echo 9111804020

BOLT 4×20

$1.49

$

Usually ships in 2-4 days

0

15

Echo X562000220

LABEL, STARTER - SHINDAIWA

$3.99

$

Usually ships in 2-4 days

0

16

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, only 2 left!

0
