B 460 - Shindaiwa Brush Cutter (SN: U08026001001 - U08026999999) FUEL SYSTEM Parts Diagram

Brush Cutter

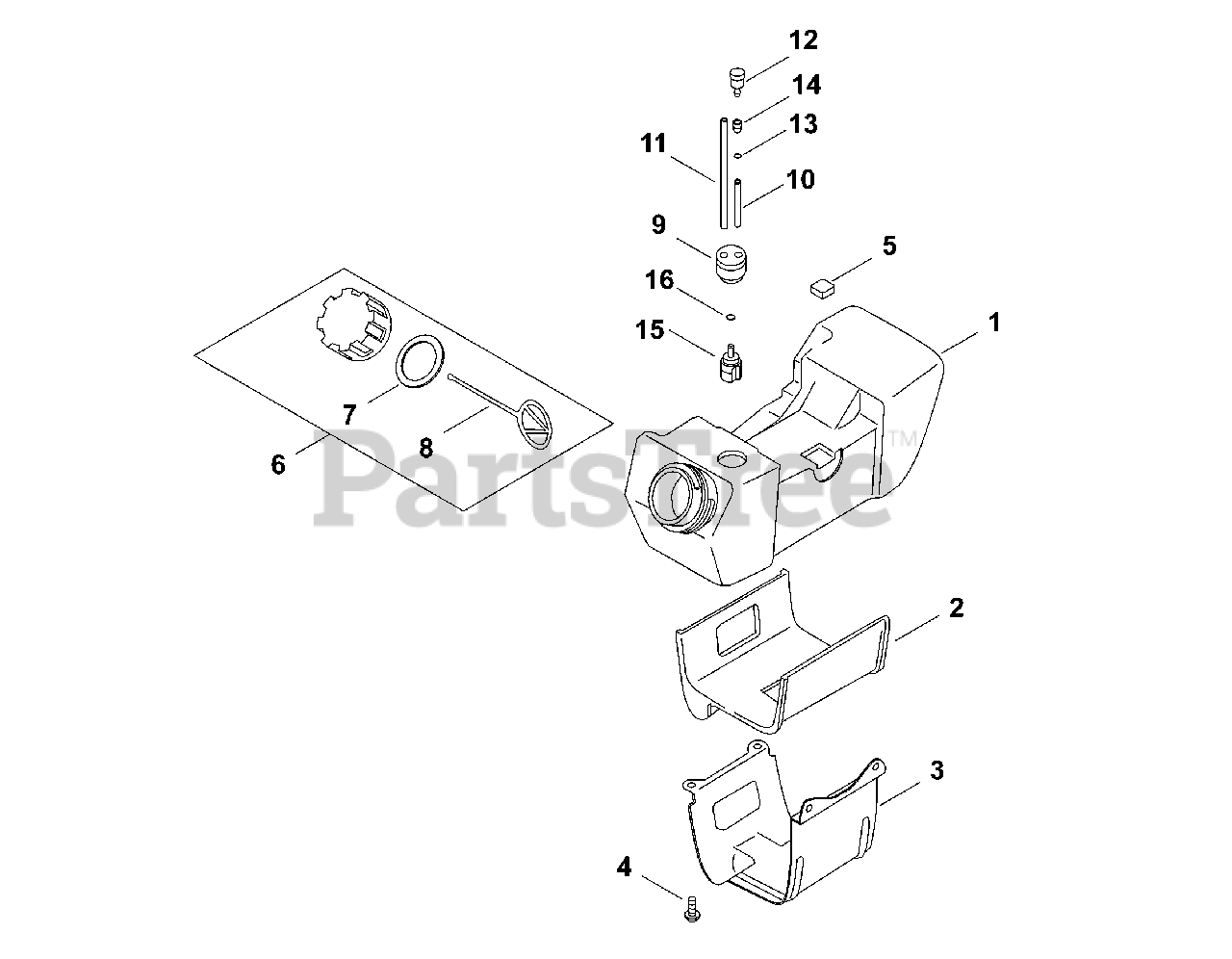

FUEL SYSTEM Parts Diagram

  • Title

1

Echo 13101046931

TANK, FUEL

$25.99

$

In Stock, only 1 left!

0

2

Echo 13192443130

CUSHION

$4.49

$

Usually ships in 2-4 days

0

3

Echo 13191043130

BRACKET, FUEL TANK

$10.99

$

Usually ships in 2-4 days

0

4

Echo 90023805014

SCREW 5×14

$0.99

$

In Stock, Qty 12

0

5

Echo 13192311120

CUSHION

$1.49

$

Usually ships in 2-4 days

0

6

Echo P021014060

CAP ASSY, FUEL
(Superseded to P021014061)

Note: Includes Items 7-8

$9.99

$

Usually ships in 2-4 days

0

7

Echo 13101655830

GASKET, FUEL CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

8

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 20+

0

9

Echo 13211544330

GROMMET, FUEL
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

10

Echo V471000760

PIPE 3×6×90 MM
(Superseded to V471000761)

$1.49

$

In Stock, Qty 11

0

11

Echo V471002130

PIPE, FUEL 3×5×210

$3.99

$

Usually ships in 2-4 days

0

12

Echo 13130056431

VENT ASSY

$7.49

$

In Stock, Qty 11

0

13

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

14

Echo 13132840630

HOLDER, VENT

$6.49

$

In Stock, Qty 13

0

15

Echo 13120519832

FILTER, FUEL
(Superseded to A369000460)

$9.49

$

In Stock, Qty 20+

0

16

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0
