B 452 - Shindaiwa Brush Cutter (SN: U42429001001 - U42429999999) STARTER Parts Diagram

Brush Cutter

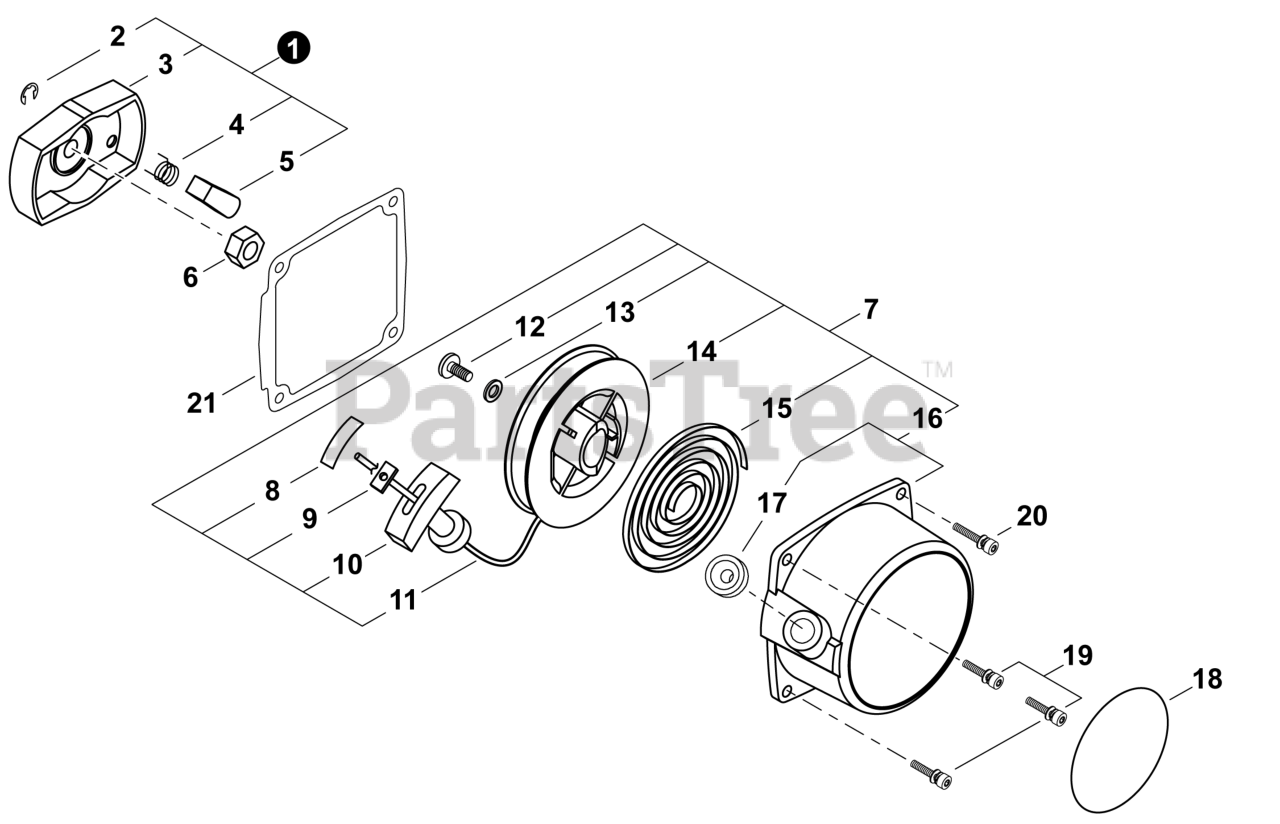

STARTER Parts Diagram

  • Title
1

Echo A052000370

PAWL ASSY, STARTER

Note: Includes items 2-5

$13.99

$

In Stock, only 2 left!

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 6

0

3

Echo A520000150

PULLEY, STARTER

$12.99

$

Usually ships in 2-4 days

0

4

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

5

Echo P022003120

PAWL, STARTER

$3.49

$

In Stock, Qty 8

0

6

Echo V265000170

NUT M8xH5

$0.99

$

Usually ships in 2-4 days

0

7

Echo P021035720

STARTER ASSY, RECOIL

Note: Includes items 8-17

$63.99

$

Usually ships in 2-4 days

0

$1.99

$

Usually ships in 2-4 days

0

9

Echo P022037670

RETAINER, ROPE

$2.49

$

In Stock, Qty 7

0

10

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

11

Echo A509000190

ROPE, STARTER

$8.49

$

Usually ships in 2-4 days

0

12

$3.99

$

In Stock, Qty 14

0

13

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17721543130

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

15

Echo 17722040630

SPRING, RECOIL

$14.99

$

In Stock, Qty 12

0

16

Echo A500000840

CASE, RECOIL STARTER

Note: Includes item 17

$32.99

$

Usually ships in 2-4 days

0

17

Echo P022045770

GUIDE, ROPE

$3.49

$

In Stock, only 1 left!

0

18

Echo X562001440

LABEL - RECOIL STARTER

$4.49

$

Usually ships in 2-4 days

0

19

Echo V202000581

BOLT M4x16

$0.99

$

In Stock, Qty 6

0

20

Echo V202000310

BOLT M4x20

$0.99

$

Usually ships in 2-4 days

0

21

Echo V105000031

GASKET, RECOIL STARTER

$1.99

$

In Stock, Qty 7

0
