B 450 - Shindaiwa Brush Cutter (SN: T83626001001 - T83626999999) GEAR CASE Parts Diagram

Brush Cutter

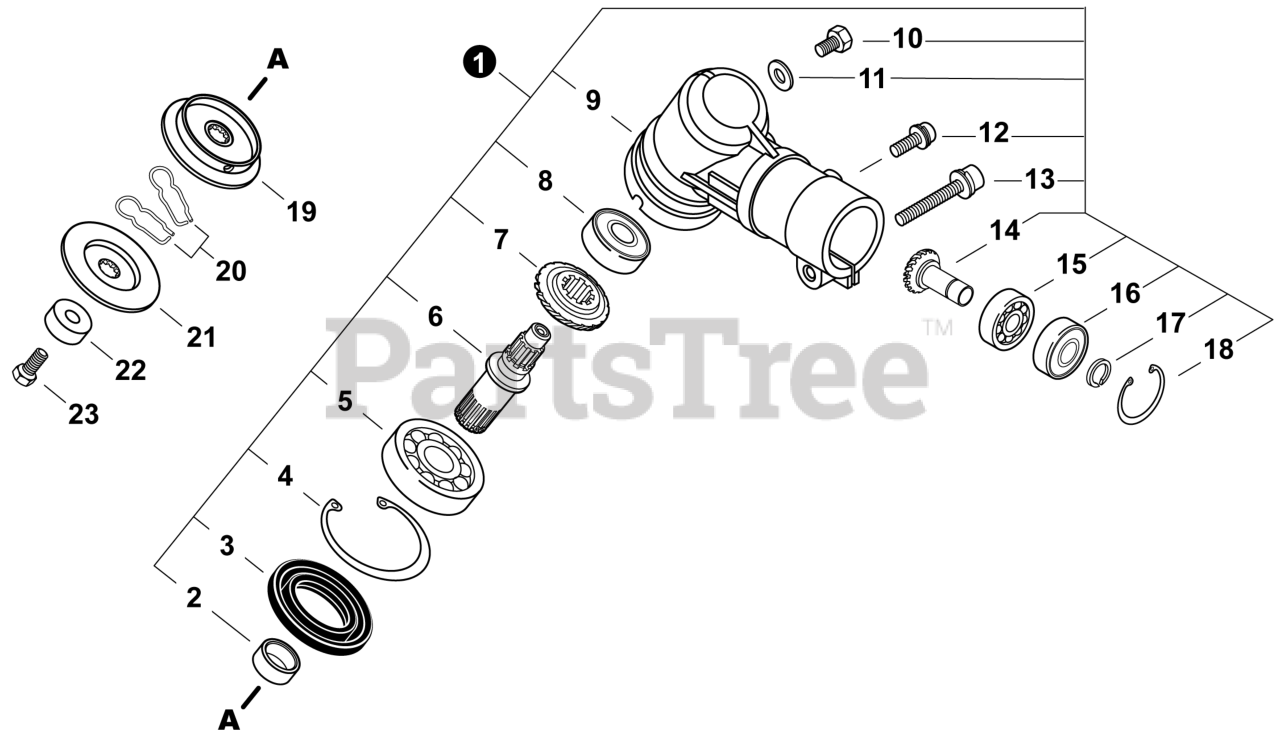

GEAR CASE Parts Diagram

  • Title

1

Echo C051000614

GEAR CASE ASSY

Note: Includes items 2-18

$183.99

$

Usually ships in 2-4 days

0

2

Echo V358000130

COLLAR

$3.99

$

Usually ships in 2-4 days

0

3

Echo V513000000

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

4

Echo 90070200035

RING, SNAP 35

$1.99

$

In Stock, Qty 15

0

5

Echo 90081006202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

6

Echo C534000910

SHAFT, GEAR

$41.99

$

Usually ships in 2-4 days

0

7

Echo V651000540

GEAR, BEVEL

$27.99

$

Usually ships in 2-4 days

0

8

Echo 90080206000

BEARING, BALL 6000DDU

$13.99

$

In Stock, Qty 20+

0

9

Echo C531000603

HOUSING, GEAR CASE

$33.99

$

In Stock, only 1 left!

0

10

Echo V206000250

BOLT M6x10

$1.49

$

In Stock, Qty 19

0

11

Echo V307000230

WASHER

$0.99

$

In Stock, only 4 left!

0

12

Echo V204000740

BOLT M6x14

$1.99

$

Usually ships in 2-4 days

0

13

Echo V204000450

BOLT M6x40

$1.99

$

In Stock, only 2 left!

0

14

Echo V651000550

PINION ASSY, BEVEL

$26.99

$

Usually ships in 2-4 days

0

15

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 3 left!

0

16

Echo 90080406001

BEARING, BALL 6001ZZ

$11.99

$

In Stock, Qty 5

0

17

Echo 90070600012

RING, SNAP 12

$1.49

$

In Stock, Qty 6

0

18

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

19

Echo C535000770

PLATE, ADAPTOR - UPPER

$35.99

$

Usually ships in 2-4 days

0

20

Echo V641000240

PIN, SLIDE

$2.49

$

In Stock, only 3 left!

0

21

Echo C535000800

PLATE, ADAPTOR - LOWER

$30.99

$

Usually ships in 2-4 days

0

22

Echo C535000790

GUARD, BOLT

$5.99

$

In Stock, only 1 left!

0

23

Echo V206000530

BOLT 10

$4.49

$

Usually ships in 2-4 days

0

24

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

25

Echo 90060300006

WASHER 6.5x13x1

$0.99

$

In Stock, Qty 20+

0

26

Echo C551000110

CLAMP, LOWER

$3.99

$

In Stock, Qty 6

0
