B 450 R - Shindaiwa Brush Cutter (SN: T24225001001 - T24225999999) GEAR CASE Parts Diagram

Brush Cutter

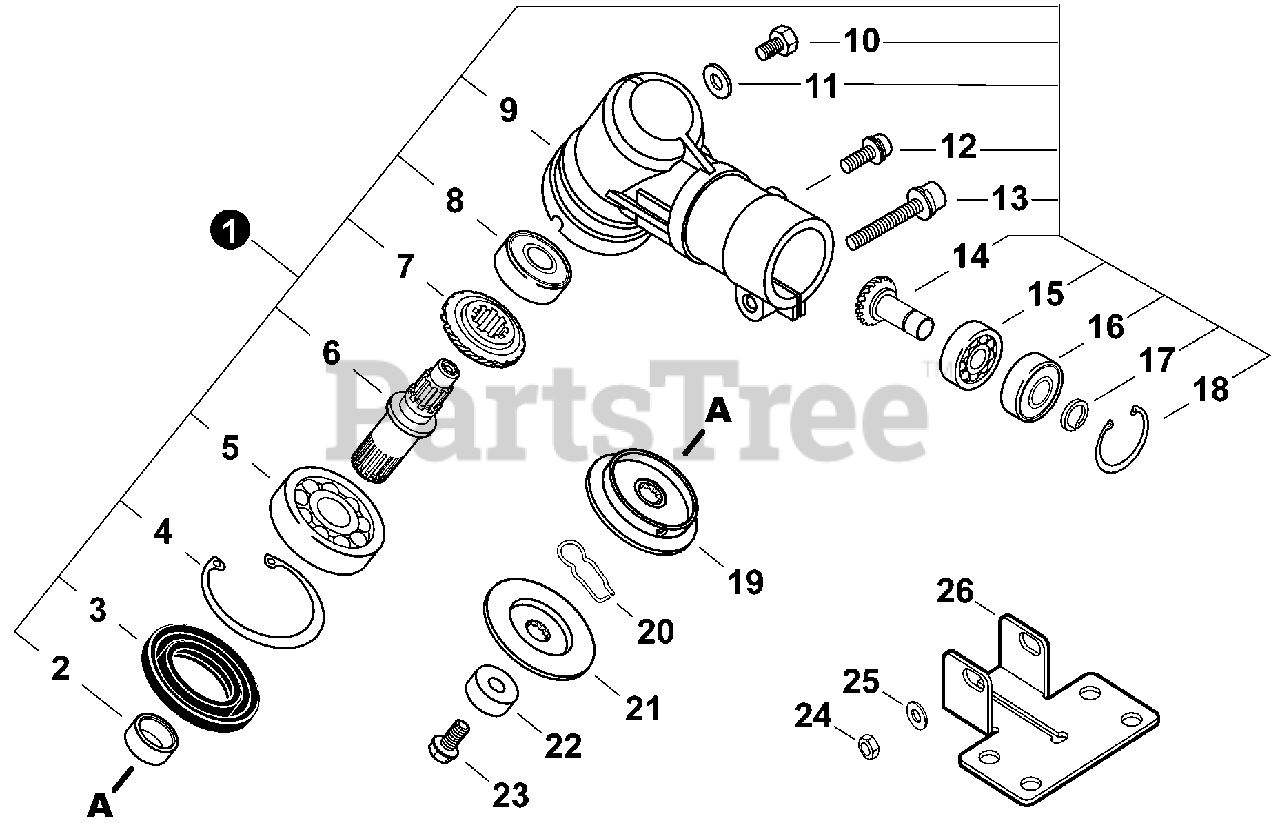

GEAR CASE Parts Diagram

  • Title

1

Echo C051000621

GEAR CASE ASSY
(Superseded to C051000622)

Note: Includes items 2-18

$154.99

$

Usually ships in 2-4 days

0

2

Echo V358000130

COLLAR

Note: 22015-13230

$3.99

$

Usually ships in 2-4 days

0

3

Echo V513000000

SEAL, OIL

Note: 72447-13121

$4.99

$

Usually ships in 2-4 days

0

4

Echo 9242435000

RING, SNAP ?35
(Superseded to 90070200035)

Note: 02432-35150

$1.99

$

In Stock, Qty 15

0

5

Echo 90081006202

BEARING, BALL 6202

Note: 02000-06202

$9.99

$

In Stock, Qty 6

0

6

Echo C534000920

SHAFT, GEAR

$41.99

$

Usually ships in 2-4 days

0

7

Echo V651000540

GEAR, BEVEL

Note: 22015-13220

$27.99

$

Usually ships in 2-4 days

0

8

Echo 90080206000

BEARING, BALL 6000DDU

Note: 02006-06000

$13.99

$

In Stock, Qty 20+

0

9

Echo C531000601

HOUSING, GEAR CASE
(Superseded to C531000602)

$33.99

$

Usually ships in 2-4 days

0

10

Echo V206000250

BOLT M6x10

Note: 22015-13410

$1.49

$

In Stock, Qty 19

0

11

Echo V307000230

WASHER

Note: 22015-13420

$0.99

$

In Stock, only 4 left!

0

12

Echo V204000740

BOLT M6x14

Note: 11022-06140

$1.99

$

Usually ships in 2-4 days

0

13

Echo V204000450

BOLT M6x40

Note: 11022-06400

$1.99

$

In Stock, only 2 left!

0

14

Echo V651000550

PINION ASSY, BEVEL

Note: 22021-13390

$26.99

$

Usually ships in 2-4 days

0

15

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

Note: 02000-06001

$9.49

$

In Stock, only 3 left!

0

16

Echo 90080406001

BEARING, BALL 6001ZZ

Note: 02002-06001

$11.99

$

In Stock, Qty 5

0

17

Echo 90070600012

RING, SNAP 12

Note: 20000-31140

$1.49

$

In Stock, Qty 6

0

18

Echo 9242428000

RING, SNAP ?28
(Superseded to 90070200028)

Note: 02432-28120

$1.49

$

In Stock, Qty 13

0

19

Echo C535000770

PLATE, ADAPTOR - UPPER

Note: 72447-13240

$35.99

$

Usually ships in 2-4 days

0

20

Echo V641000140

PIN, SLIDE
(Superseded to V641000240)

Note: 22015-13290

$2.49

$

In Stock, only 3 left!

0

21

Echo C535000780

PLATE, ADAPTOR - LOWER
(Superseded to C535000781)

Note: 72017-63170

$35.99

$

In Stock, Qty 7

0

22

Echo C535000790

GUARD, BOLT

Note: 22015-13270

$5.99

$

In Stock, only 1 left!

0

23

Echo V206000230

BOLT 10x37

Note: 63019-63310

$2.49

$

Usually ships in 2-4 days

0

24

Echo 90050000006

NUT, HEX M6

Note: 01500-06051

$0.99

$

In Stock, Qty 20+

0

25

Echo 90060300006

WASHER 6.5x13x1

Note: 01613-06100

$0.99

$

In Stock, Qty 20+

0

26

Echo C551000110

CLAMP, LOWER

Note: 72017-16130

$3.99

$

In Stock, Qty 6

0
