B 450 F - Shindaiwa Brush Cutter (SN: U16026001001 - U16026999999) FUEL SYSTEM Parts Diagram

Brush Cutter

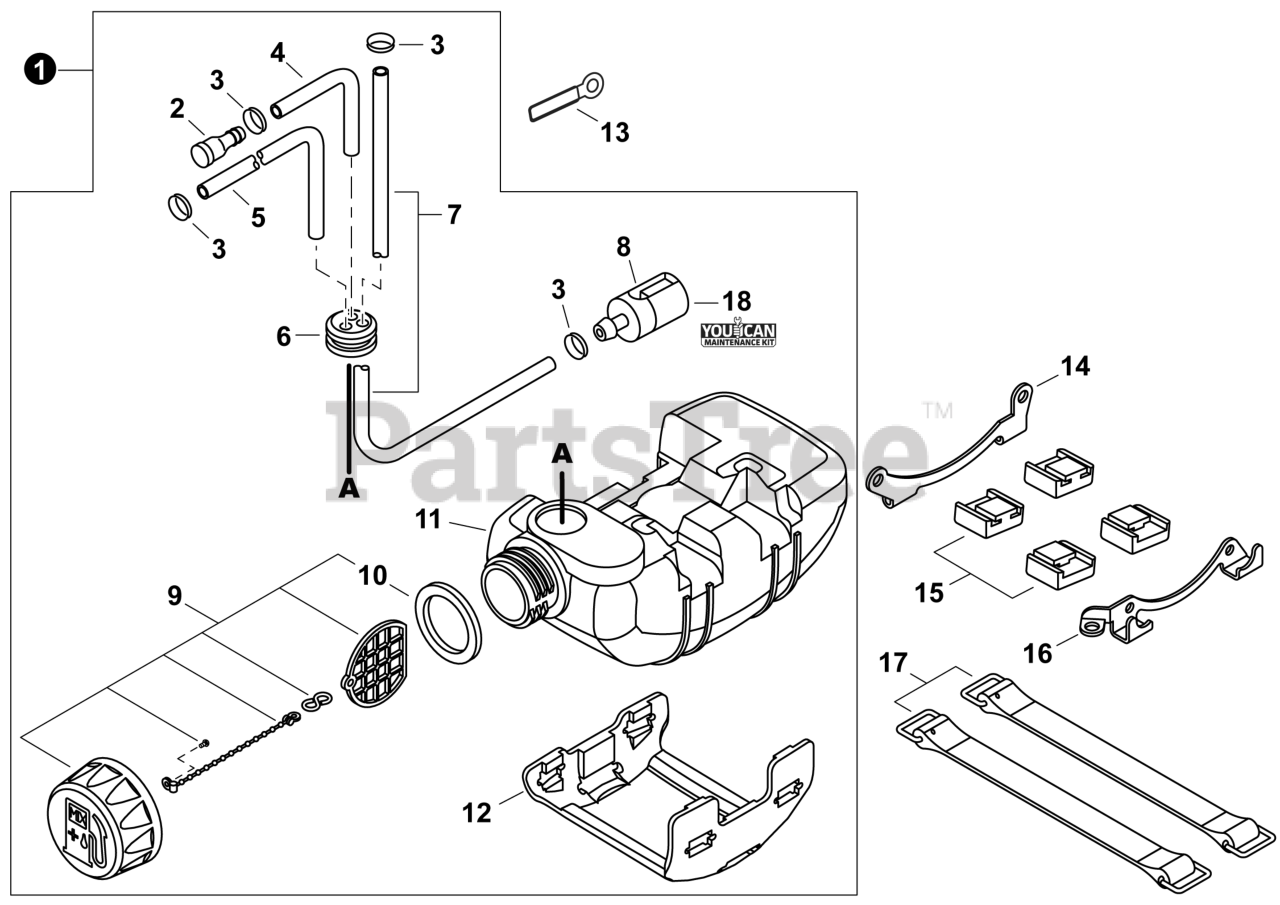

FUEL SYSTEM Parts Diagram

  • Title

1

Echo P021036463

TANK ASSY, FUEL
(Superseded to P021036464)

Note: Includes items 2-12

$47.99

$

Usually ships in 2-4 days

0

2

Echo A356000050

VENT ASSY

$8.49

$

In Stock, only 2 left!

0

3

Echo V490000500

CLIP Ø6

$0.99

$

In Stock, Qty 20+

0

4

Echo V471000760

PIPE 3×6×90 MM
(Superseded to V471000761)

$1.49

$

In Stock, Qty 11

0

5

Echo 13201049030

PIPE, FUEL 3×6×50

$1.99

$

In Stock, Qty 7

0

6

Echo 13211555931

GROMMET, FUEL

$2.49

$

In Stock, Qty 16

0

7

Echo V471000750

PIPE, FUEL
(Superseded to V471000751)

$7.99

$

In Stock, only 1 left!

0

8

Echo A369000101

FILTER, FUEL
(Superseded to A369000460)

Note: Included in Tune-up Kit

$9.49

$

In Stock, Qty 20+

0

9

Echo A033000330

CAP ASSY, FUEL

Note: Includes item 10

$7.49

$

In Stock, only 1 left!

0

10

Echo V107000010

GASKET, FUEL CAP

$1.99

$

In Stock, Qty 16

0

11

Echo A350001361

TANK, FUEL

$24.99

$

Usually ships in 2-4 days

0

12

Echo A175000200

GUARD, FUEL TANK

$8.99

$

In Stock, only 1 left!

0

13

Echo 15911222131

CLIP

$1.49

$

Usually ships in 2-4 days

0

14

Echo A393000190

BRACKET M

$2.49

$

Usually ships in 2-4 days

0

15

Echo V420002390

CUSHION, FUEL TANK

$0.99

$

In Stock, Qty 6

0

16

Echo A393000180

BRACKET S

$3.49

$

In Stock, only 2 left!

0

17

Echo A392000060

STRAP, FUEL TANK

$4.49

$

In Stock, Qty 7

0

18

Echo 81001Y

TUNE-UP KIT - YOUCANT

Note: See maintenance kits

$21.99

$

Usually ships in 2-4 days

0
