B 450 F - Shindaiwa Brush Cutter (SN: U16026001001 - U16026999999) CARBURETOR Parts Diagram

Brush Cutter

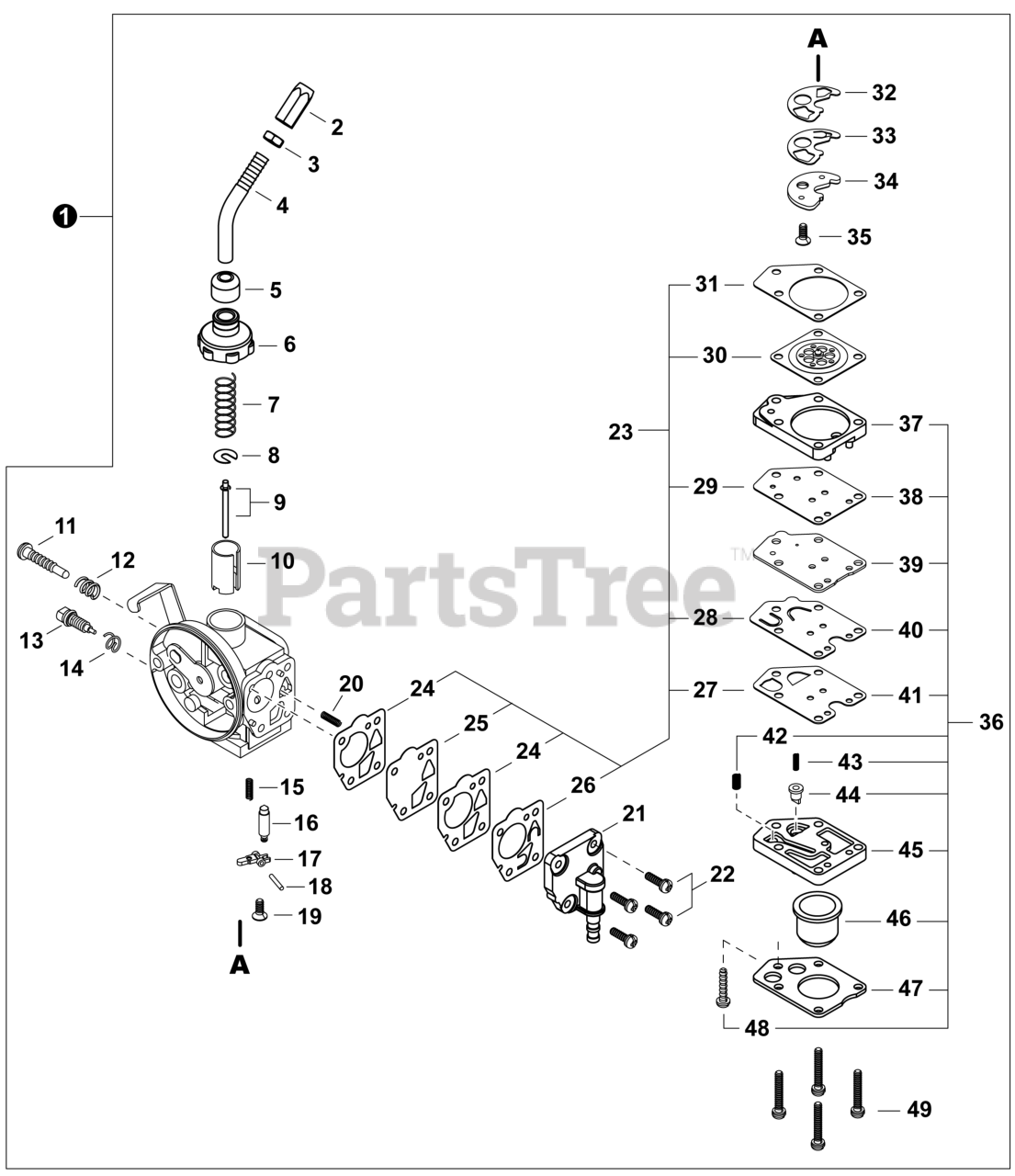

CARBURETOR Parts Diagram

  • Title

1

Echo A021002530

CARBURETOR DPV11W-18B

Note: Includes items 2-49

$97.99

$

Usually ships in 2-4 days

0

2

Echo 12415846630

ADJUSTER, CABLE

$13.99

$

Usually ships in 2-4 days

0

3

Echo 12411105810

NUT, LOCK

$3.49

$

In Stock, only 2 left!

0

4

Echo P004002870

PIPE, CABLE ADJUSTER

$14.99

$

Usually ships in 2-4 days

0

5

Echo P004002180

CAP, DUST

$3.99

$

In Stock, only 1 left!

0

6

Echo P004000700

CAP, CARBURETOR

$8.99

$

Usually ships in 2-4 days

0

7

Echo 12411450330

SPRING, THROTTLE

$1.99

$

Usually ships in 2-4 days

0

8

Echo 12411505530

WASHER, SPRING SUPPORT

$1.99

$

In Stock, Qty 12

0

9

Echo P004002940

NEEDLE, JET

$10.99

$

Usually ships in 2-4 days

0

10

Echo P004002900

VALVE, SLIDE

$28.99

$

In Stock, only 1 left!

0

11

Echo 12415905530

SCREW, IDLE ADJUST

$2.49

$

In Stock, only 4 left!

0

12

Echo 12416011120

SPRING

$2.49

$

In Stock, only 1 left!

0

13

Echo P004003490

SCREW, MAIN ADJUST
(Superseded to 12435412710)

$15.99

$

Usually ships in 2-4 days

0

14

Echo 12435521330

SPRING

$1.99

$

In Stock, Qty 10

0

15

Echo 12433149930

SPRING

$1.99

$

In Stock, only 1 left!

0

16

Echo P004000930

VALVE, INLET NEEDLE

$10.99

$

In Stock, only 4 left!

0

17

Echo P004001340

LEVER, METERING

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12433221330

PIN, METERING LEVER

$1.99

$

In Stock, only 3 left!

0

19

Echo P004001350

SCREW M3×8

$0.99

$

Usually ships in 2-4 days

0

20

Echo 12435550130

SPRING

$1.99

$

In Stock, Qty 5

0

21

Echo P004003230

PUMP BODY

$18.99

$

In Stock, Qty 7

0

22

Echo P004001030

SCREW

$0.99

$

In Stock, Qty 20+

0

23

Echo 99909-451

GASKET / DIAPHRAGM KIT

Note: Includes items 24-31

$56.99

$

In Stock, only 1 left!

0

24

Echo 12436321330

GASKET, DIAPHRAGM

$1.99

$

In Stock, Qty 7

0

25

Echo P004001430

DIAPHRAGM, METERING

$5.99

$

In Stock, only 3 left!

0

26

Echo P004002550

VALVE, PUMP

$13.99

$

Usually ships in 2-4 days

0

27

Echo 12435949930

GASKET

$2.49

$

Usually ships in 2-4 days

0

28

Echo P004002530

VALVE, CHECK

$10.99

$

Usually ships in 2-4 days

0

29

Echo P004002600

GASKET

$2.49

$

In Stock, only 2 left!

0

30

Echo 12434149930

DIAPHRAGM, METERING

$23.99

$

In Stock, only 2 left!

0

31

Echo 12435849930

GASKET, METERING DIAPHRAGM

$1.49

$

In Stock, Qty 7

0

32

Echo P004002510

PACKING
(Superseded to 12437512710)

$6.99

$

Usually ships in 2-4 days

0

33

Echo P004002500

VALVE, CHECK

$7.99

$

Usually ships in 2-4 days

0

34

Echo P004002950

PLATE

$7.49

$

Usually ships in 2-4 days

0

35

Echo P004001350

SCREW M3×8

$0.99

$

Usually ships in 2-4 days

0

36

Echo P004002520

PURGE PUMP KIT

Note: Includes items 37-48

$43.99

$

Usually ships in 2-4 days

0

37

Echo 12437949930

COVER, PUMP

$20.99

$

Usually ships in 2-4 days

0

38

Echo P004002600

GASKET

$2.49

$

In Stock, only 2 left!

0

39

Echo 12436049930

PLATE, PUMP

$3.49

$

Usually ships in 2-4 days

0

40

Echo P004002530

VALVE, CHECK

$10.99

$

Usually ships in 2-4 days

0

41

Echo 12435949930

GASKET

$2.49

$

Usually ships in 2-4 days

0

42

Echo 12435550130

SPRING

$1.99

$

In Stock, Qty 5

0

43

Echo P004002580

SPRING

$2.49

$

In Stock, only 2 left!

0

44

Echo P004002590

VALVE, CHECK

$18.99

$

Usually ships in 2-4 days

0

45

Echo P004002570

BODY, PURGE

$7.49

$

In Stock, only 1 left!

0

46

Echo 12438012710

BULB, PURGE

$9.99

$

In Stock, only 1 left!

0

47

Echo 12434249930

RETAINER, PURGE BULB

$3.49

$

Usually ships in 2-4 days

0

48

Echo 12431049930

SCREW

$0.99

$

Usually ships in 2-4 days

0

49

Echo 90024103020

SCREW 3×20

$0.99

$

Usually ships in 2-4 days

0
