B 450 EMC - Shindaiwa Brush Cutter (SN: 09016415 - 09098884) Outer Tube Parts Diagram

Brush Cutter

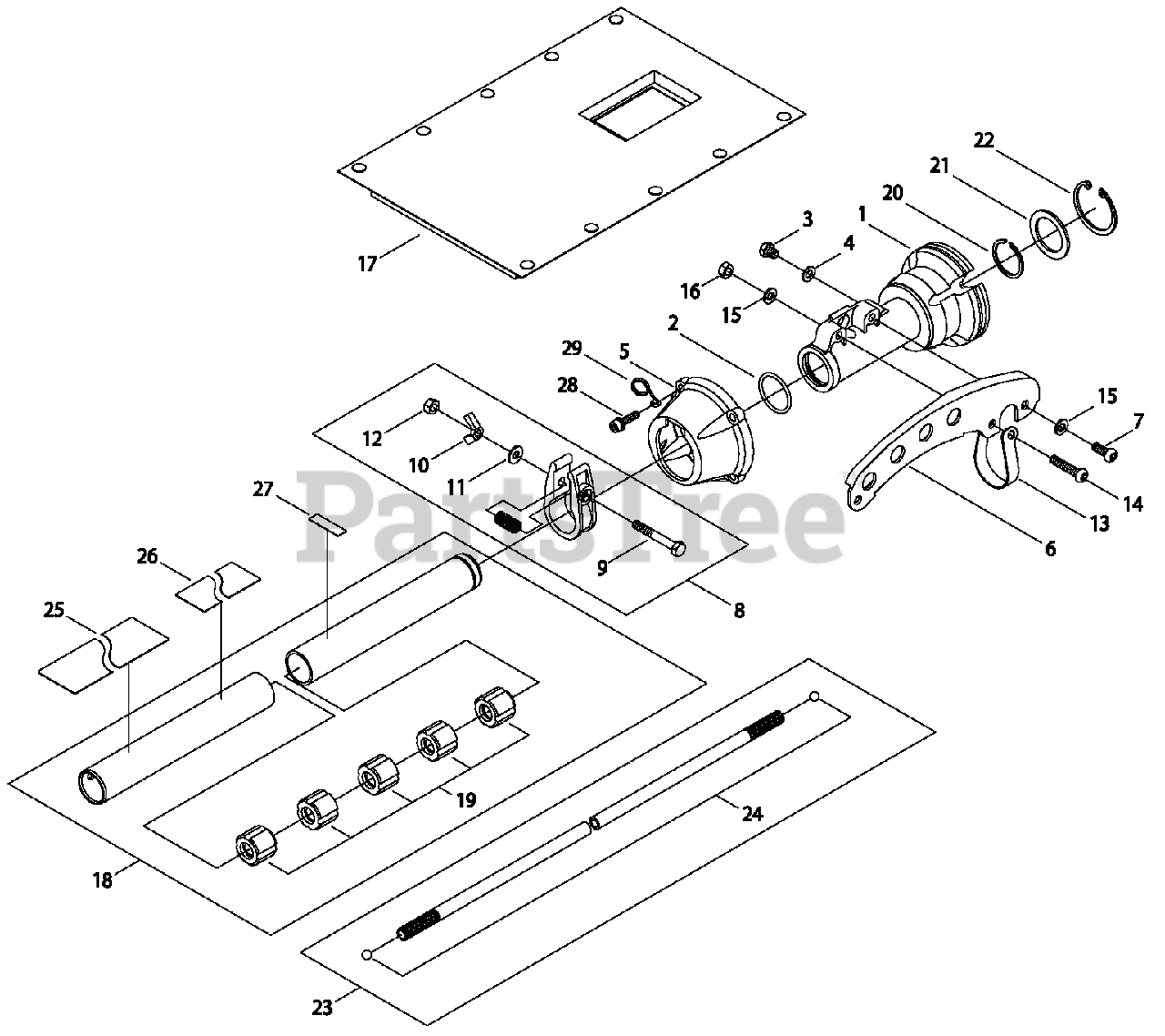

Outer Tube Parts Diagram

  • Title

1

Echo A575000380

SWIVEL JOINT

Note: 22020-11110

$49.99

$

Usually ships in 2-4 days

0

2

Echo V581000220

O-RING

Note: 22015-11120

$0.99

$

Usually ships in 2-4 days

0

3

Echo V204000430

BOLT - 6X8

Note: 01010-06080

$0.99

$

Usually ships in 2-4 days

0

4

Echo V304000180

WASHER - 8

Note: 22000-13410

$0.99

$

In Stock, only 4 left!

0

5

Echo A575000390

CONNECTOR, CAP
(Superseded to A575000630)

Note: 72020-11120

$18.99

$

Usually ships in 2-4 days

0

6

Echo C624000070

HANGER

Note: 22019-11313

$10.99

$

Usually ships in 2-4 days

0

7

Echo 9114206016

SCREW - 6X16

Note: 11210-06160

$0.99

$

Usually ships in 2-4 days

0

8

Echo P021021240

SWIVEL LOCK ASSY

Note: 22015-11501

$5.99

$

Usually ships in 2-4 days

0

9

Echo V204000420

BOLT

Note: 22011-97821

$0.99

$

Usually ships in 2-4 days

0

10

Echo 9219106000

WINGNUT - 6

Note: 01520-10630

$0.99

$

Usually ships in 2-4 days

0

11

Echo V304000150

WASHER - 6

Note: 22100-71430

$0.99

$

Usually ships in 2-4 days

0

12

Echo V264000150

LOCKNUT - 6
(Superseded to 43302206460)

Note: 22011-97840

$1.49

$

In Stock, Qty 20+

0

13

Echo V495001500

CLAMP

Note: 22011-11320

$1.49

$

Usually ships in 2-4 days

0

14

Echo 9114206030

SCREW - 6X30

Note: 11210-06300

$0.99

$

Usually ships in 2-4 days

0

15

Echo 90060500006

LOCKWASHER - 6

Note: 01600-05131

$0.99

$

In Stock, only 2 left!

0

16

Echo 90050000006

LOCKNUT - 6

Note: 01500-06051

$0.99

$

In Stock, Qty 20+

0

17

Echo V420002400

PROTECTOR
(Superseded to V420002401)

Note: 22019-17110

$19.99

$

Usually ships in 2-4 days

0

18

Echo C050001880

MAIN PIPE ASSY
(Superseded to C050001881)

Note: 72550-12102

$123.99

$

Usually ships in 2-4 days

0

19

Echo C501000080

BUSHING
(Superseded to C501000090)

Note: 22021-12120

$5.49

$

Usually ships in 2-4 days

0

20

Echo V582000100

RING, RETAINING

Note: 22015-12130

$0.99

$

Usually ships in 2-4 days

0

21

Echo V314000110

STOPPER

Note: 22020-12210

$0.99

$

Usually ships in 2-4 days

0

22

Echo 9242440000

RING, RETAINING - 40

Note: 02432-40170

$1.99

$

In Stock, only 4 left!

0

23

Echo C504000740

DRIVESHAFT ASSY
(Superseded to C504001290)

Note: 72550-12400

$72.99

$

Usually ships in 2-4 days

0

24

Echo V585000040

STOPPER

Note: 22021-12420

$0.99

$

Usually ships in 2-4 days

0

25

Echo X504002780

LABEL - SHINDAIWA PROFESSIONAL

Note: 19420-00084

$3.49

$

In Stock, only 2 left!

0

26

Echo X505005890

LABEL - CAUTION

Note: 19422-00029

$5.49

$

In Stock, only 1 left!

0

27

Echo X505002850

LABEL - HANDLE LOCATION

Note: 19401-00269

$0.99

$

In Stock, only 2 left!

0

28

Echo V203000350

SCREW - 5X20
(Superseded to V203000351)

Note: 11022-05200

$0.99

$

In Stock, Qty 12

0

29

Echo C487000270

HOLDER, CABLE

Note: 70229-83150

$3.49

$

Usually ships in 2-4 days

0
