B 450 EMC - Shindaiwa Brush Cutter (SN: 09016415 - 09098884) Fuel Tank Parts Diagram

Brush Cutter

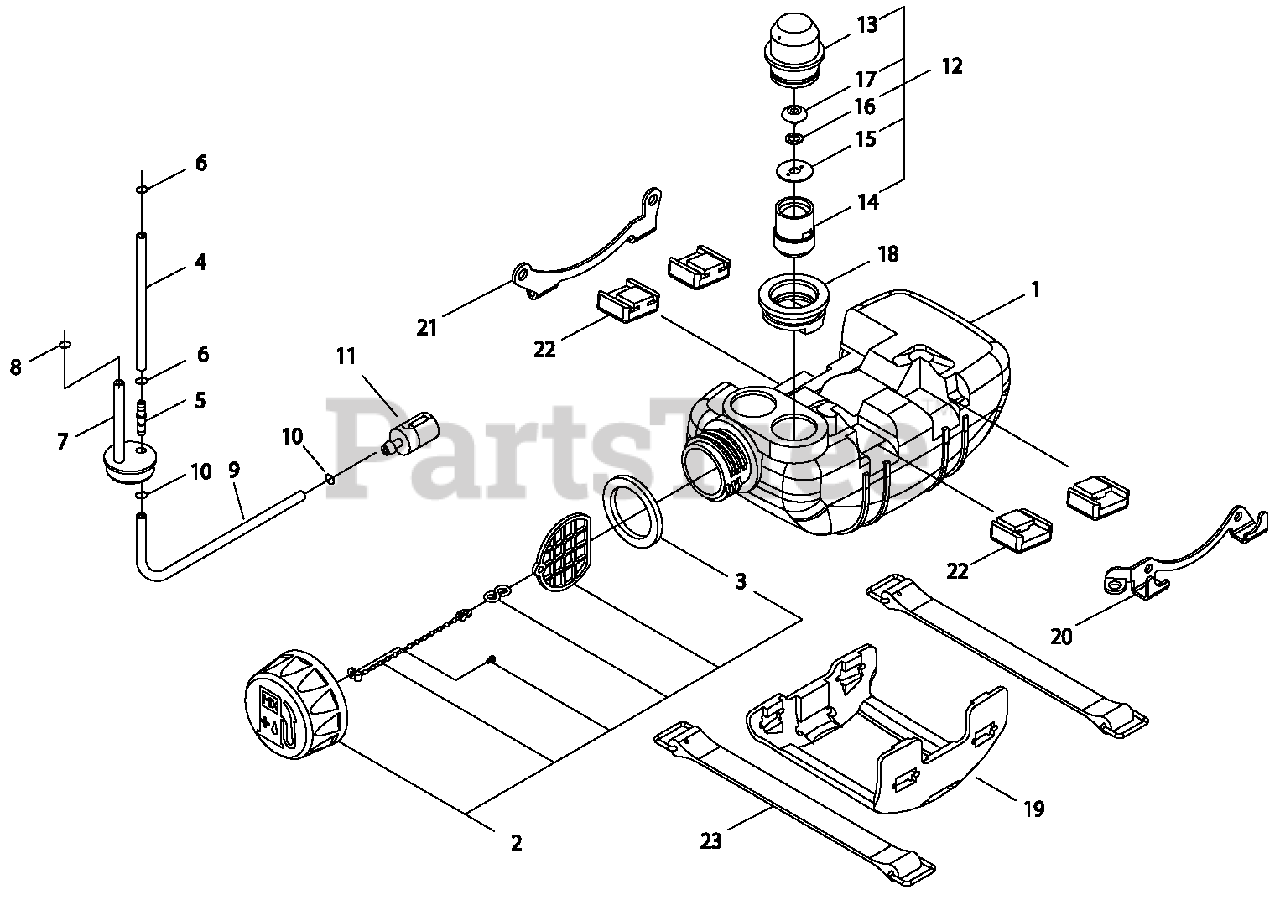

Fuel Tank Parts Diagram

  • Title
1

Echo A350001360

TANK, FUEL
(Superseded to P021036463)

Note: 70200-85110

$47.99

$

In Stock, only 1 left!

0

2

Echo A033000330

CAP ASSY - RED

Note: 70168-85201

$7.49

$

In Stock, only 1 left!

0

3

Echo V107000010

GASKET, CAP

Note: 20000-85221

$1.99

$

In Stock, Qty 20+

0

4

Echo V471002650

PIPE - FUEL

Note: 70200-85310

$1.99

$

In Stock, only 4 left!

0

5

Echo V186000230

CONNECTOR, PIPE

Note: 72935-85330

$3.49

$

In Stock, Qty 6

0

6

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

7

Echo V137000080

GROMMET

Note: 70200-85350

$6.49

$

In Stock, Qty 9

0

8

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

9

Echo V471002660

PIPE - BLACK

Note: 70200-85320

$1.99

$

In Stock, only 1 left!

0

10

Echo V490000500

CLIP - 6

Note: 20020-85540

$0.99

$

In Stock, Qty 19

0

11

Echo A369000100

FUEL FILTER ASSY
(Superseded to A369000101)

Note: 22169-35400

$9.49

$

In Stock, Qty 20+

0

12

Echo A039000020

VENT ASSY

Note: 20000-85500

$8.99

$

In Stock, only 1 left!

0

13

Echo A362000000

CAP, BREATHER

Note: 20000-85511

$1.99

$

Usually ships in 2-4 days

0

14

Echo A358000030

HOLDER, VENT

Note: 20000-85521

$1.99

$

Usually ships in 2-4 days

0

15

Echo A359000010

RETAINER

Note: 22100-85240

$0.99

$

Usually ships in 2-4 days

0

16

Echo V303000170

WASHER

Note: 22100-85250

$0.99

$

Usually ships in 2-4 days

0

17

Echo A356000090

VENT, FUEL TANK

Note: 22100-85260

$4.99

$

In Stock, only 4 left!

0

18

Echo V138000020

GROMMET

Note: 20000-85579

$19.99

$

In Stock, Qty 16

0

19

Echo A175000200

GUARD, FUEL TANK

Note: 70005-86131

$8.99

$

In Stock, only 1 left!

0

20

Echo A393000180

BRACKET - OUTER

Note: 20021-86110

$3.49

$

Usually ships in 2-4 days

0

21

Echo A393000190

BRACKET - INNER

Note: 20011-86120

$2.49

$

Usually ships in 2-4 days

0

22

Echo V420002390

CUSHION

Note: 20010-86130

$0.99

$

In Stock, Qty 6

0

23

Echo A392000070

STRAP, FUEL TANK

Note: 20010-86140

$5.49

$

In Stock, only 4 left!

0
