B 450 EMC - Shindaiwa Brush Cutter (SN: 09016415 - 09098884) Cylinder / Intake / Muffler Parts Diagram

Brush Cutter

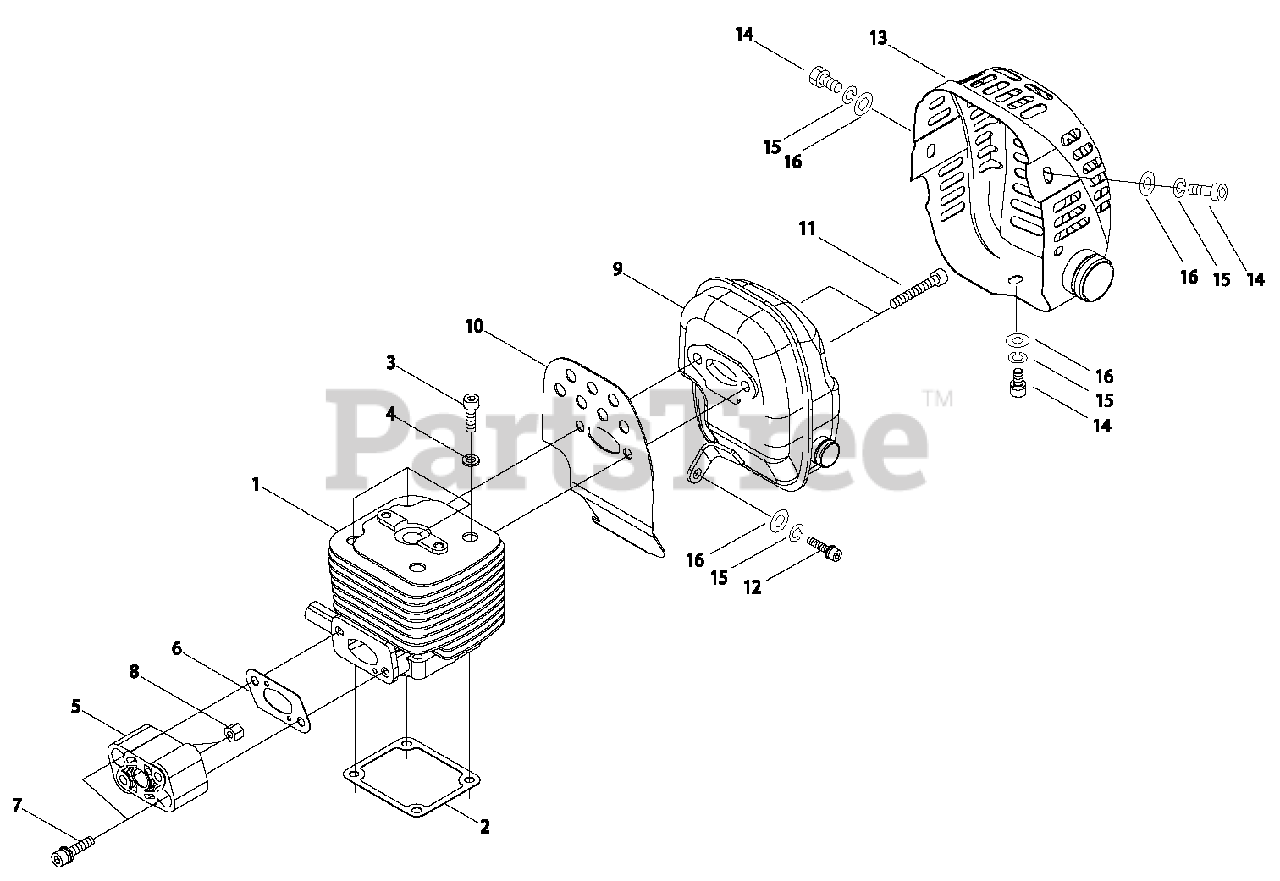

Cylinder / Intake / Muffler Parts Diagram

  • Title

1

Echo A130001340

CYLINDER

Note: 70210-12111

$69.99

$

In Stock, only 3 left!

0

2

Echo V100000470

GASKET, CYLINDER

Note: 20010-12121

$1.99

$

In Stock, Qty 5

0

3

Echo 90010505025

SCREW - 5X25

Note: 01020-05250

$1.49

$

In Stock, Qty 20+

0

4

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 10

0

5

Echo A200000640

INSULATOR, INTAKE

Note: 20060-12210

$16.99

$

Usually ships in 2-4 days

0

6

Echo V103000950

GASKET, INTAKE

Note: 20011-12221

$0.99

$

In Stock, Qty 8

0

7

Echo V203000630

SCREW - 5X25

Note: 11022-05250

$0.99

$

In Stock, Qty 20+

0

8

Echo V263000180

NUT

Note: 20024-12260

$0.99

$

In Stock, only 1 left!

0

9

Echo A030000250

MUFFLER ASSY

Note: 70210-15102

$69.99

$

Usually ships in 2-4 days

0

10

Echo V104001330

SHIELD, EXHAUST

Note: 70210-15212

$8.99

$

In Stock, only 1 left!

0

11

Echo V204000440

BOLT

Note: 70210-15320

$1.99

$

Usually ships in 2-4 days

0

12

Echo V203000900

SCREW

Note: 70210-15330

$0.99

$

Usually ships in 2-4 days

0

13

Echo A320000760

COVER, EXHAUST

Note: 70210-15311

$45.99

$

Usually ships in 2-4 days

0

14

Echo 90010905010

SCREW - 5X10

Note: 01020-05105

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 10

0

16

Echo 90060300005

WASHER - 5

Note: 01613-05080

$0.99

$

In Stock, Qty 20+

0
