B 450 AUS - Shindaiwa Brush Cutter (SN: 20003851 - 20004630) Starter Parts Diagram

Brush Cutter

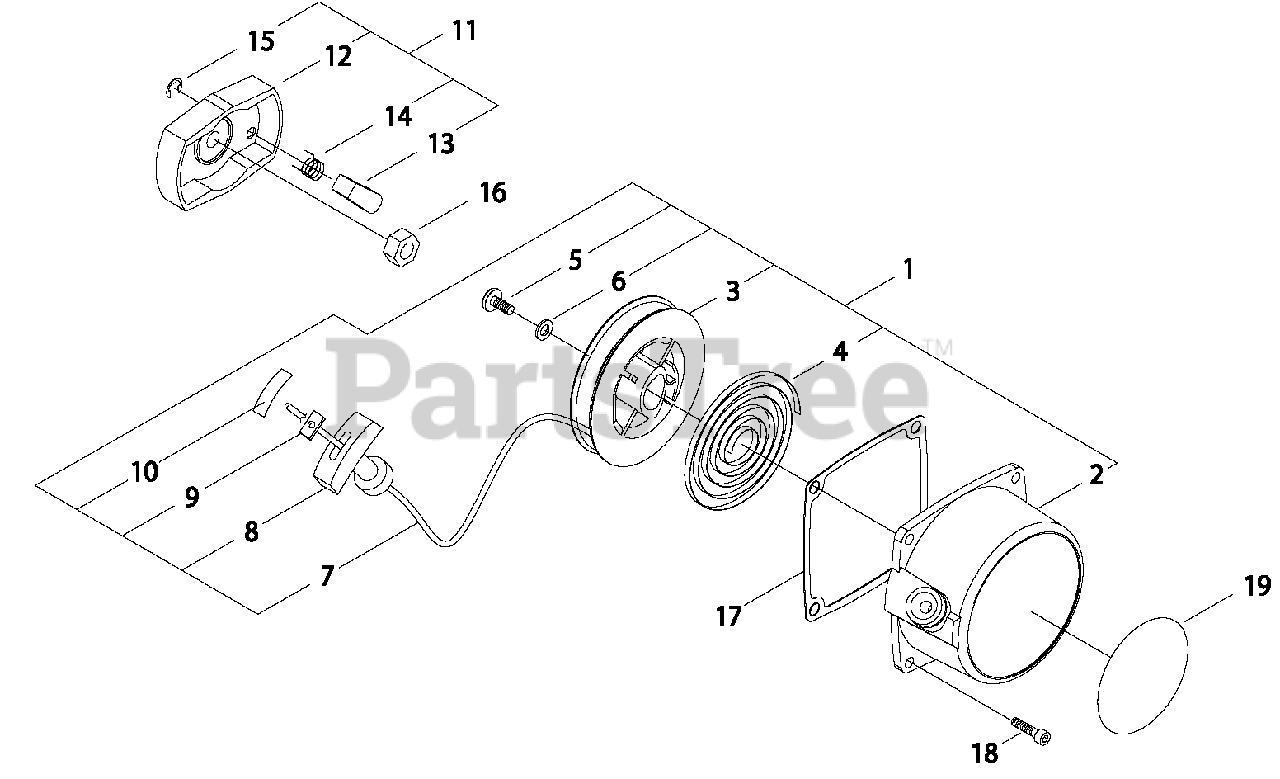

Starter Parts Diagram

  • Title

1

Echo 7020075100

STARTER ASSY

Note: 70131-75100

$

$

Currently unavailable

2

Echo A500000840

CASE, STARTER

Note: 70131-75110

$32.99

$

Usually ships in 2-4 days

0

3

Echo A506000150

REEL, ROPE
(Superseded to 17721543130)

Note: 70131-75120

$15.99

$

In Stock, only 1 left!

0

4

Echo A504000060

SPRING, REWIND
(Superseded to 17722040630)

Note: 20024-75130

$14.99

$

In Stock, Qty 11

0

5

Echo V253000560

SCREW - 5
(Superseded to 17723640630)

Note: 20035-75170

$3.99

$

In Stock, Qty 14

0

6

Echo V303000190

WASHER
(Superseded to 17721441030)

Note: 70131-75140

$1.49

$

Usually ships in 2-4 days

0

7

Echo A509000190

ROPE, STARTER

Note: 20020-75180

$8.49

$

Usually ships in 2-4 days

0

8

Echo A511000160

GRIP, STARTER
(Superseded to 17722827030)

Note: 20010-75190

$5.99

$

In Stock, Qty 20+

0

9

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

Note: 20010-75210

$2.49

$

In Stock, Qty 7

0

10

Echo X707000050

TAPE, ADHESIVE

Note: 20010-75230

$1.99

$

Usually ships in 2-4 days

0

11

Echo A052000370

STARTER PAWL ASSY

Note: 70131-75200

$13.99

$

In Stock, only 2 left!

0

12

Echo A520000150

REEL, ROPE

Note: 70131-75211

$12.99

$

Usually ships in 2-4 days

0

13

Echo A514000080

PAWL, STARTER
(Superseded to 17721840630)

Note: 20024-75220

$3.49

$

In Stock, Qty 6

0

14

Echo V452000520

SPRING, RETURN
(Superseded to 17723440630)

Note: 20024-75230

$3.49

$

In Stock, only 2 left!

0

15

Echo V583000140

RING, RETAINING
(Superseded to P022002100)

Note: 20024-75240

$0.99

$

In Stock, Qty 6

0

16

Echo V265000170

NUT - 8

Note: 20000-76210

$0.99

$

Usually ships in 2-4 days

0

17

Echo V105000030

GASKET, STARTER
(Superseded to V105000031)

Note: 20020-76111

$1.99

$

In Stock, Qty 7

0

18

Echo V202000580

SCREW - 4X16
(Superseded to V202000581)

Note: 11022-04160

$0.99

$

In Stock, only 2 left!

0

19

Echo X504002770

LABEL - MODEL

Note: 19420-00027

$2.49

$

In Stock, only 2 left!

0
