B 450 AUS - Shindaiwa Brush Cutter (SN: 20003851 - 20004630) Gearcase Parts Diagram

Brush Cutter

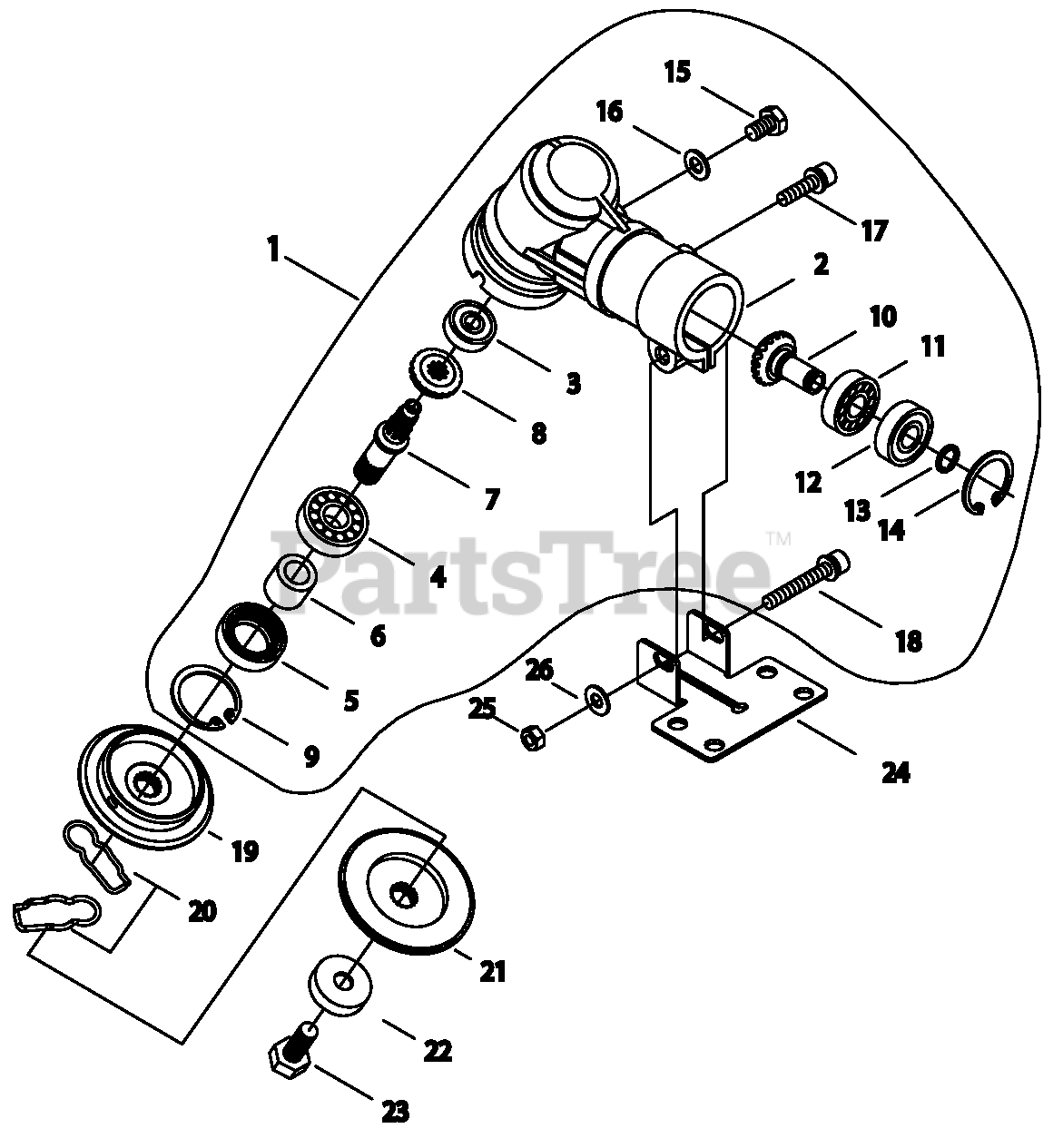

Gearcase Parts Diagram

  • Title
1

Echo C051000610

GEAR CASE ASSY
(Superseded to P021039300)

Note: 63020-63020

$155.99

$

Usually ships in 2-4 days

0

2

Echo C531000600

CASE, GEAR
(Superseded to C531000601)

Note: 63020-63111

$33.99

$

Usually ships in 2-4 days

0

3

Echo 90080206000

BEARING, BALL - 6000

Note: 02006-06000

$13.99

$

In Stock, Qty 20+

0

4

Echo 90081006202

BEARING, BALL - 6202

Note: 02000-06202

$9.99

$

In Stock, Qty 6

0

5

Echo V513000000

SEAL, OIL

Note: 72447-13121

$4.99

$

Usually ships in 2-4 days

0

6

Echo V358000130

COLLAR

Note: 22015-13230

$3.99

$

Usually ships in 2-4 days

0

7

Echo C534000600

GEAR - SHAFT
(Superseded to P021039370)

Note: 63019-63130

$44.99

$

Usually ships in 2-4 days

0

8

Echo V651000540

GEAR - BEVEL

Note: 22015-13220

$27.99

$

Usually ships in 2-4 days

0

9

Echo 9242435000

RING, RETAINING - 35
(Superseded to 90070200035)

Note: 02432-35150

$1.99

$

In Stock, Qty 15

0

10

Echo V651000550

GEAR - SHAFT

Note: 22021-13390

$26.99

$

Usually ships in 2-4 days

0

11

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

Note: 02000-06001

$9.49

$

In Stock, Qty 6

0

12

Echo 9402406001

BEARING, BALL - 6001ZZ
(Superseded to 90080406001)

Note: 02002-06001

$11.99

$

In Stock, Qty 5

0

13

Echo V583000170

RING, RETAINING
(Superseded to 90070600012)

Note: 20000-31140

$1.49

$

In Stock, Qty 10

0

14

Echo 9242428000

RING, RETAINING - 28
(Superseded to 90070200028)

Note: 02432-28120

$1.49

$

In Stock, Qty 15

0

15

Echo V206000250

BOLT - 6X10

Note: 22015-13410

$1.49

$

In Stock, Qty 19

0

16

Echo V307000230

WASHER

Note: 22015-13420

$0.99

$

In Stock, only 4 left!

0

17

Echo V204000740

BOLT - 6X14

Note: 11022-06140

$1.99

$

Usually ships in 2-4 days

0

18

Echo V204000450

SCREW - 6X40

Note: 11022-06400

$1.99

$

In Stock, only 3 left!

0

19

Echo C535000770

ADAPTOR, BLADE - UPPER

Note: 72447-13240

$35.99

$

Usually ships in 2-4 days

0

20

Echo V641000140

CLIP
(Superseded to V641000240)

Note: 22015-13290

$2.49

$

In Stock, only 3 left!

0

21

Echo C535000800

ADAPTOR, BLADE - LOWER

Note: 63020-63171

$30.99

$

Usually ships in 2-4 days

0

22

Echo C535000790

GUARD

Note: 22015-13270

$5.99

$

In Stock, only 1 left!

0

23

Echo V206000230

BOLT - 10 -- LEFT HAND

Note: 63019-63310

$2.49

$

Usually ships in 2-4 days

0

24

Echo C551000110

CLAMP - LOWER

Note: 72017-16130

$3.99

$

In Stock, Qty 6

0

25

Echo 90050000006

LOCKNUT - 6

Note: 01500-06051

$0.99

$

In Stock, Qty 20+

0

27

Echo 90063000006

WASHER - 6

Note: 01613-06100

$0.99

$

In Stock, Qty 10

0
