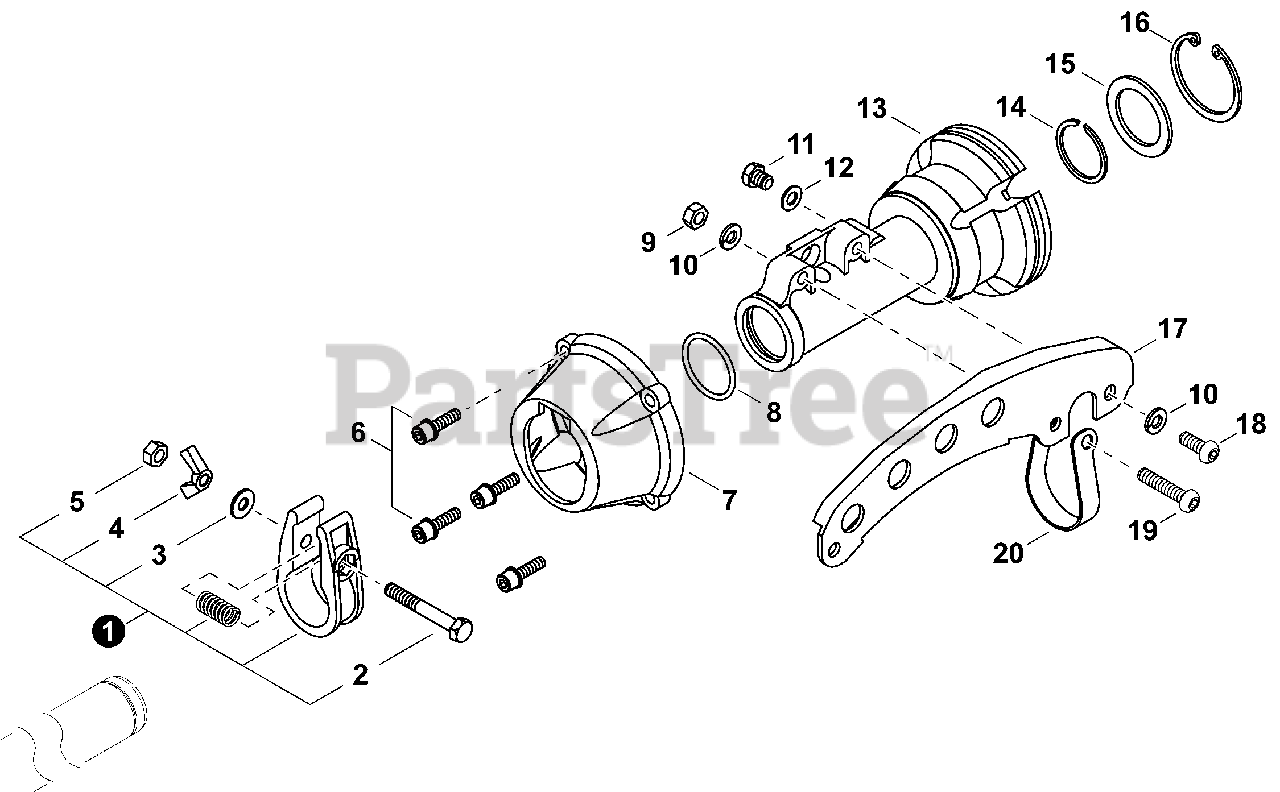

B 45 - Shindaiwa Brush Cutter (SN: 20001001 - 20999999) Swivel Parts Diagram

Brush Cutter

Swivel Parts Diagram

  • Title

1

Echo P021021240

SWIVEL ASSY

Note: Includes ITEMS 2-5

$5.99

$

Usually ships in 2-4 days

0

2

Echo V204000420

BOLT

$0.99

$

Usually ships in 2-4 days

0

3

Echo V304000150

WASHER 6MM

$0.99

$

Usually ships in 2-4 days

0

4

Echo 9219106000

NUT, WING M6

$0.99

$

Usually ships in 2-4 days

0

5

Echo V264000150

NUT, LOCK M6
(Superseded to 43302206460)

$1.49

$

In Stock, Qty 20+

0

6

Echo V203000350

BOLT M5×20
(Superseded to V203000351)

$0.99

$

In Stock, Qty 12

0

7

Echo A575000390

CAP, CUSHION
(Superseded to A575000630)

$18.99

$

Usually ships in 2-4 days

0

8

Echo V581000220

O-RING

$0.99

$

Usually ships in 2-4 days

0

9

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

10

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, only 2 left!

0

11

Echo V204000430

BOLT M6×8

$0.99

$

Usually ships in 2-4 days

0

12

Echo V304000180

WASHER

$0.99

$

In Stock, only 4 left!

0

13

Echo A575000380

CUSHION, AV

$49.99

$

Usually ships in 2-4 days

0

14

Echo V582000100

RING, SNAP

$0.99

$

Usually ships in 2-4 days

0

15

Echo V314000110

STOPPER

$0.99

$

Usually ships in 2-4 days

0

16

Echo 9242440000

RING, SNAP Ø40

$1.99

$

In Stock, only 4 left!

0

17

Echo C624000070

HANGER

$10.99

$

Usually ships in 2-4 days

0

18

Echo 9114206016

BOLT M6×16

$0.99

$

Usually ships in 2-4 days

0

19

Echo 9114206030

BOLT M6×30

$0.99

$

Usually ships in 2-4 days

0

20

Echo V495001500

CLAMP

$1.49

$

Usually ships in 2-4 days

0
