B 45 - Shindaiwa Brush Cutter (Original Version) Outer Tube Parts Diagram

Brush Cutter

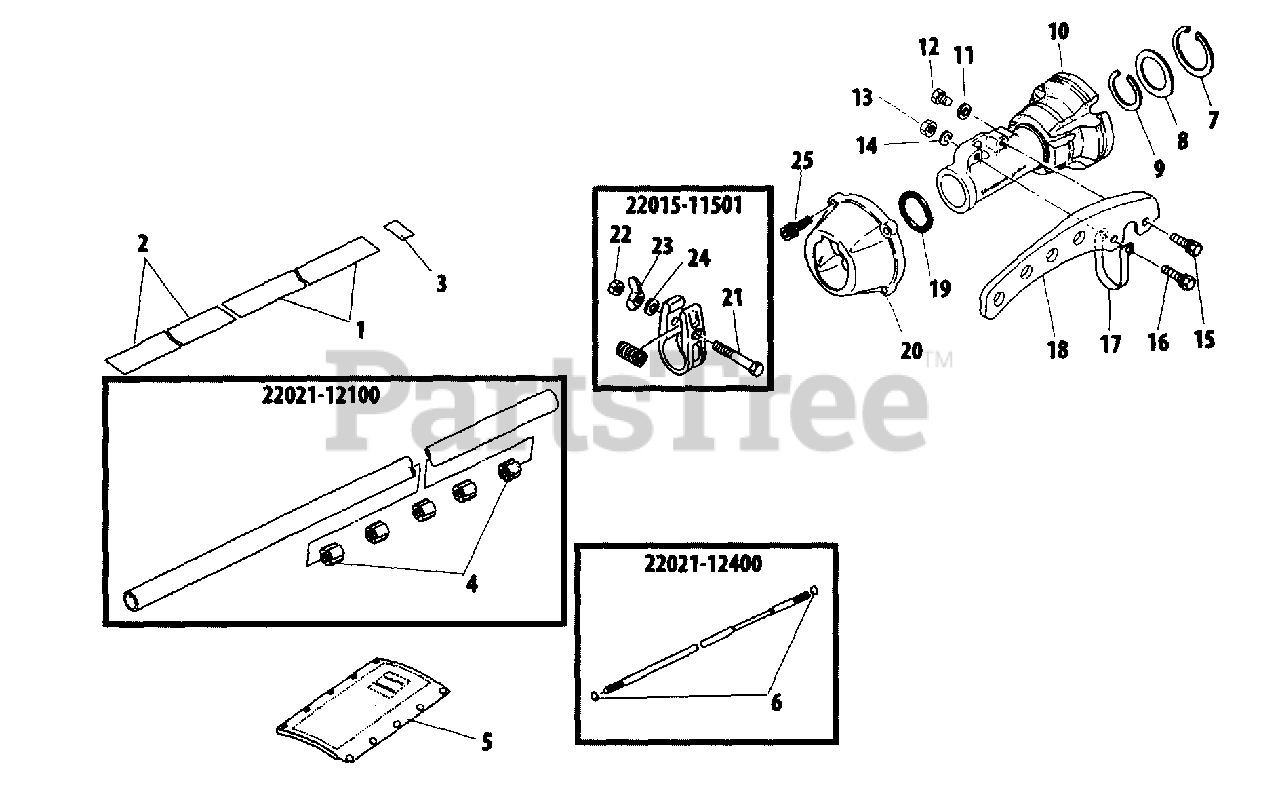

Outer Tube Parts Diagram

  • Title

1

Echo 19420-00028

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 72460-12530

LABEL - CAUTION
(Superseded to 19422-00029)

$5.49

$

Usually ships in 2-4 days

0

3

Echo 72017-12150

LABEL - ALIGNMENT
(Superseded to X524002380)

$0.99

$

Usually ships in 2-4 days

0

22021-12100

Echo 22021-12100

MAIN PIPE ASSY
(Superseded to C050001870)

$138.99

$

Usually ships in 2-4 days

0

4

Echo 22021-12120

BUSHING
(Superseded to C501000080)

$5.49

$

Usually ships in 2-4 days

0

5

Echo 22019-17110

PROTECTOR
(Superseded to V420002400)

$19.99

$

Usually ships in 2-4 days

0

22021-12400

Echo 22021-12400

SHAFT, MAIN
(Superseded to C504000720)

$92.99

$

In Stock, only 1 left!

0

6

Echo 22021-12420

STOPPER
(Superseded to V585000040)

$0.99

$

Usually ships in 2-4 days

0

7

Echo 02432-40170

RING, RETAINING - 40
(Superseded to 9242440000)

$1.99

$

In Stock, only 4 left!

0

8

Echo 22020-12210

STOPPER
(Superseded to V314000110)

$0.99

$

Usually ships in 2-4 days

0

9

Echo 22015-12130

RING, RETAINING
(Superseded to V582000100)

$0.99

$

Usually ships in 2-4 days

0

10

Echo 22020-11110

SWIVEL JOINT
(Superseded to A575000380)

$49.99

$

Usually ships in 2-4 days

0

11

Echo 22000-13410

WASHER
(Superseded to V304000180)

$0.99

$

In Stock, only 4 left!

0

12

Echo 01010-06080

BOLT - 6X8
(Superseded to V204000430)

$0.99

$

Usually ships in 2-4 days

0

13

Echo 01500-06051

NUT - 6
(Superseded to 90050000006)

$0.99

$

In Stock, Qty 20+

0

14

Echo 01600-06151

LOCKWASHER - 6
(Superseded to 90060500006)

$0.99

$

In Stock, only 4 left!

0

15

Echo 11210-06160

SCREW - 6X16
(Superseded to 9114206016)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 11210-06300

SCREW - 6X30
(Superseded to 9114206030)

$0.99

$

Usually ships in 2-4 days

0

17

Echo 22011-11320

CLAMP
(Superseded to V495001500)

$1.49

$

Usually ships in 2-4 days

0

18

Echo 22019-11313

HANGER
(Superseded to C624000070)

$10.99

$

Usually ships in 2-4 days

0

19

Echo 22015-11120

O-RING
(Superseded to V581000220)

$0.99

$

Usually ships in 2-4 days

0

20

Echo 72020-11120

CONNECTOR, CAP
(Superseded to A575000390)

$18.99

$

Usually ships in 2-4 days

0

22015-11501

Echo 22015-11501

SWIVEL LOCK ASSY
(Superseded to P021021240)

$5.99

$

Usually ships in 2-4 days

0

21

Echo 22011-97821

BOLT
(Superseded to V204000420)

$0.99

$

Usually ships in 2-4 days

0

22

Echo 22011-97840

LOCKNUT - 6
(Superseded to V264000150)

$1.49

$

In Stock, Qty 20+

0

23

Echo 01520-10630

WINGNUT
(Superseded to 9219106000)

$0.99

$

Usually ships in 2-4 days

0

24

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0

25

Echo 11022-05200

SCREW - 5X20
(Superseded to V203000350)

$0.99

$

In Stock, Qty 20+

0
