B 45 LA - Shindaiwa Brush Cutter (SN: T04820001001 - T04820999999) STARTER Parts Diagram

Brush Cutter

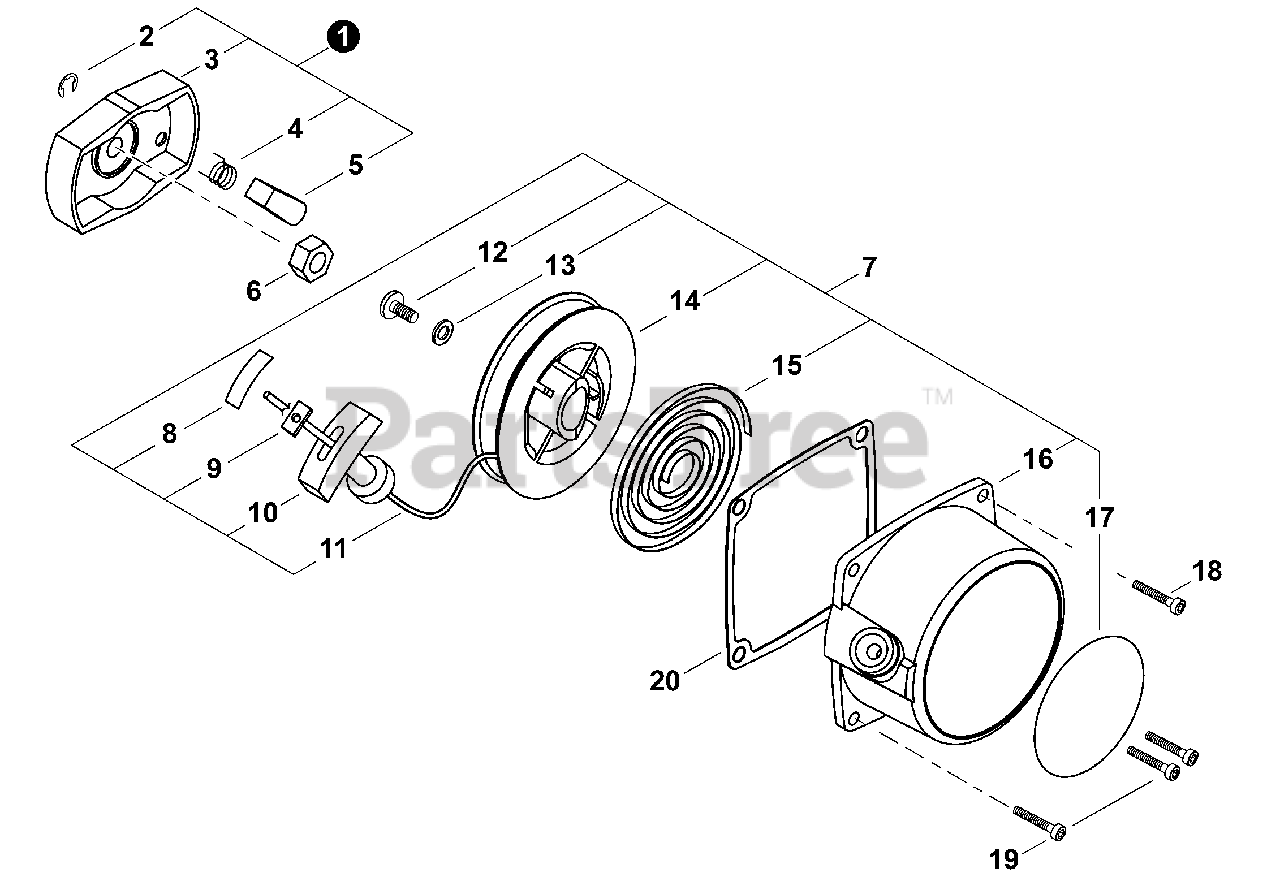

STARTER Parts Diagram

  • Title

1

Echo A052000370

PULLEY ASSY, STARTER

Note: Includes ITEMS 2-5

$13.99

$

In Stock, only 2 left!

0

2

Echo V583000140

E-RING 4
(Superseded to P022002100)

$0.99

$

In Stock, Qty 6

0

3

Echo A520000150

PULLEY, STARTER

$12.99

$

Usually ships in 2-4 days

0

4

Echo V452000520

SPRING, RETURN
(Superseded to 17723440630)

$3.49

$

In Stock, only 2 left!

0

5

Echo A514000080

PAWL, STARTER
(Superseded to 17721840630)

$3.49

$

In Stock, Qty 6

0

6

Echo V265000170

NUT M8×H5

$0.99

$

Usually ships in 2-4 days

0

7

Echo P021035720

STARTER ASSY, RECOIL

Note: Includes ITEMS 8-17

$63.99

$

In Stock, only 1 left!

0

8

Echo X707000050

TAPE

$1.99

$

Usually ships in 2-4 days

0

9

Echo A522000040

RETAINER, ROPE
(Superseded to 17724611120)

$2.49

$

In Stock, Qty 7

0

10

Echo A511000160

GRIP, STARTER
(Superseded to 17722827030)

$5.99

$

In Stock, Qty 20+

0

11

Echo A509000190

ROPE, STARTER

$8.49

$

Usually ships in 2-4 days

0

12

Echo V253000560

SCREW 5
(Superseded to 17723640630)

$3.99

$

In Stock, Qty 14

0

13

Echo V303000190

WASHER
(Superseded to 17721441030)

$1.49

$

Usually ships in 2-4 days

0

14

Echo A506000150

REEL, ROPE
(Superseded to 17721543130)

$15.99

$

In Stock, only 1 left!

0

15

Echo A504000060

SPRING, RECOIL
(Superseded to 17722040630)

$14.99

$

In Stock, Qty 11

0

16

Echo A500000840

CASE, RECOIL STARTER

$32.99

$

Usually ships in 2-4 days

0

17

Echo X504002770

LABEL, TRADE

$2.49

$

In Stock, only 2 left!

0

18

Echo V202000310

BOLT M4×20

$0.99

$

Usually ships in 2-4 days

0

19

Echo V202000581

BOLT M4×16

$0.99

$

In Stock, only 2 left!

0

20

Echo V105000031

GASKET, RECOIL STARTER

$1.99

$

In Stock, Qty 7

0
