B 45 LA - Shindaiwa Brush Cutter (SN: T04820001001 - T04820999999) IGNITION Parts Diagram

Brush Cutter

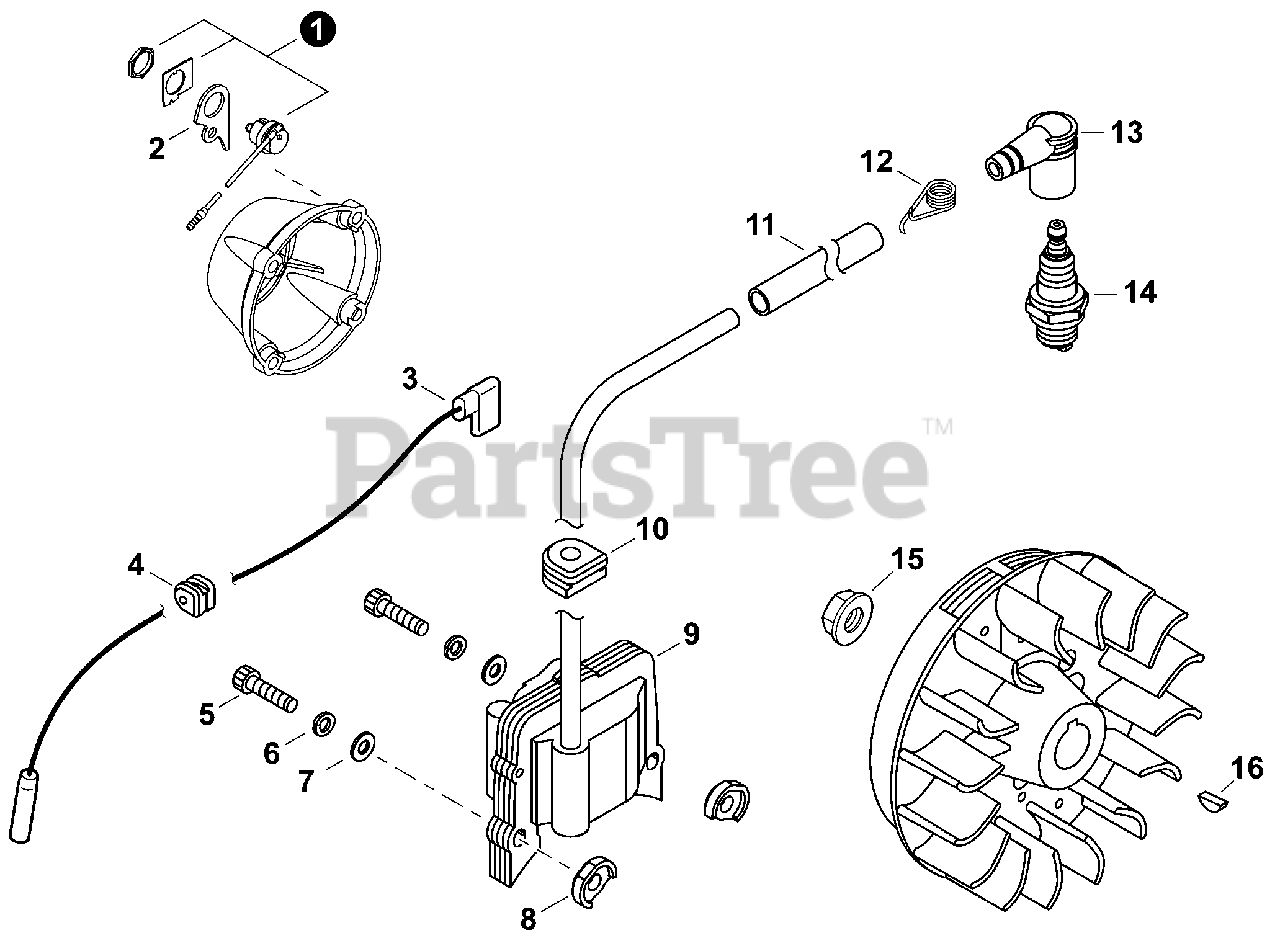

IGNITION Parts Diagram

  • Title
1

Echo A045000340

SWITCH, ON-OFF

$11.99

$

Usually ships in 2-4 days

0

2

Echo A439000510

BRACKET

$2.49

$

Usually ships in 2-4 days

0

3

Echo A412000030

LEAD - IGNITION

$2.49

$

Usually ships in 2-4 days

0

4

Echo V136000060

GROMMET, LEAD

$0.99

$

Usually ships in 2-4 days

0

5

Echo 9110004024

BOLT M4×24

$0.99

$

In Stock, Qty 8

0

6

Echo 90060500004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo V302000010

WASHER 4.3×9.6×0.8

$0.99

$

In Stock, Qty 6

0

8

Echo V352000140

COLLAR 4

$1.99

$

In Stock, only 1 left!

0

9

Echo A411000780

COIL, IGNITION

$67.99

$

Usually ships in 2-4 days

0

10

Echo V135000080

GROMMET

$1.99

$

Usually ships in 2-4 days

0

11

Echo V475004880

TUBE, INSULATOR

$0.99

$

Usually ships in 2-4 days

0

12

Echo A426000050

TERMINAL, SPARK PLUG

$1.49

$

In Stock, Qty 7

0

13

Echo A427000100

CAP, SPARK PLUG

$2.49

$

In Stock, Qty 19

0

14

Echo 15902603930

SPARK PLUG - CJ8
(Superseded to CJ8)

$3.99

$

In Stock, Qty 20+

0

15

Echo V266000110

NUT, FLANGE M10

$0.99

$

Usually ships in 2-4 days

0

16

Echo 9311503010

KEY, WOODRUFF 3×10

$0.99

$

In Stock, Qty 20+

0
