B 45 LA - Shindaiwa Brush Cutter (SN: T04820001001 - T04820999999) GEAR CASE S/N: (Main Pipe) 36035011 - 36999999 Parts Diagram

Brush Cutter

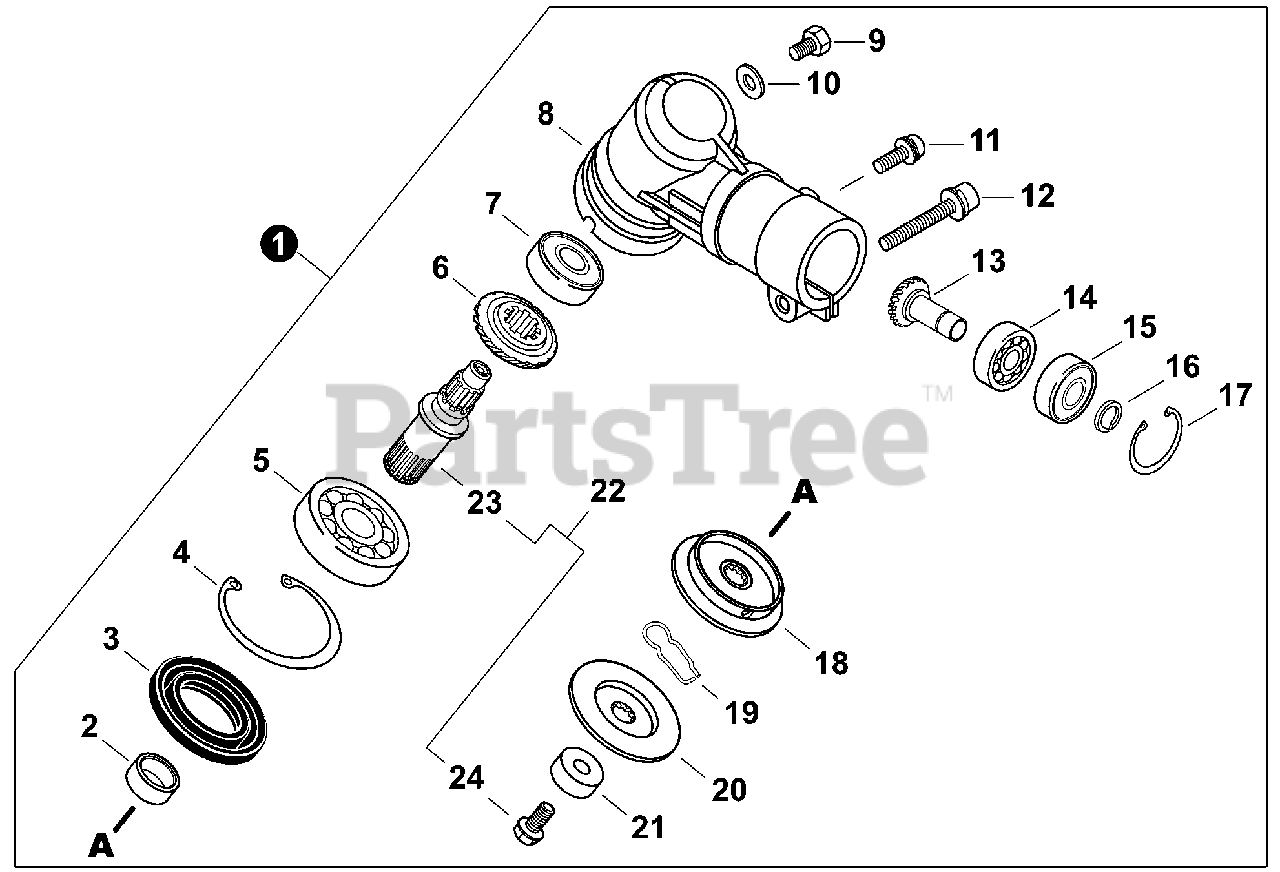

GEAR CASE S/N: (Main Pipe) 36035011 - 36999999 Parts Diagram

  • Title

1

Echo P021048050

GEAR CASE ASSY

Note: Includes ITEMS 2-24

$184.99

$

Usually ships in 2-4 days

0

2

Echo V358000130

COLLAR

$3.99

$

Usually ships in 2-4 days

0

3

Echo V513000000

SEAL, OIL

$4.99

$

Usually ships in 2-4 days

0

4

Echo 9242435000

RING, SNAP Ø35
(Superseded to 90070200035)

$1.99

$

In Stock, Qty 15

0

5

Echo 90081006202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

6

Echo V651000540

GEAR, BEVEL

$27.99

$

Usually ships in 2-4 days

0

7

Echo 90080206000

BEARING, BALL 6000DDU

$13.99

$

In Stock, Qty 20+

0

8

Echo C531000603

HOUSING, GEAR CASE

$33.99

$

In Stock, only 1 left!

0

9

Echo V206000250

BOLT M6×10

$1.49

$

In Stock, Qty 19

0

10

Echo V307000230

WASHER

$0.99

$

In Stock, only 4 left!

0

11

Echo V204000740

BOLT M6×14

$1.99

$

Usually ships in 2-4 days

0

12

Echo V204000410

BOLT M6×28
(Superseded to V204000411)

$

$

Not available

13

Echo V651000550

PINION ASSY, BEVEL

$26.99

$

Usually ships in 2-4 days

0

14

Echo 90080036001

BEARING, BALL 6001

$9.49

$

In Stock, only 3 left!

0

15

Echo 90080406001

BEARING, BALL 6001ZZ

$11.99

$

In Stock, Qty 5

0

16

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 6

0

17

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 19

0

18

Echo C535000770

PLATE, ADAPTOR - UPPER

$35.99

$

Usually ships in 2-4 days

0

19

Echo V641000240

PIN, SLIDE

$2.49

$

In Stock, only 3 left!

0

20

Echo C535000780

PLATE, ADAPTOR - LOWER
(Superseded to C535000781)

$35.99

$

In Stock, Qty 7

0

21

Echo C535000790

GUARD, BOLT

$5.99

$

In Stock, only 1 left!

0

22

Echo P021039360

GEAR SHAFT SET

Note: Includes ITEMS 23-24

$32.99

$

Usually ships in 2-4 days

0

23

Echo C534000920

SHAFT, GEAR

$41.99

$

Usually ships in 2-4 days

0

24

Echo V206000230

BOLT 10×37

$2.49

$

Usually ships in 2-4 days

0
