B 45 LA - Shindaiwa Brush Cutter (SN: T04820001001 - T04820999999) ENGINE Parts Diagram

Brush Cutter

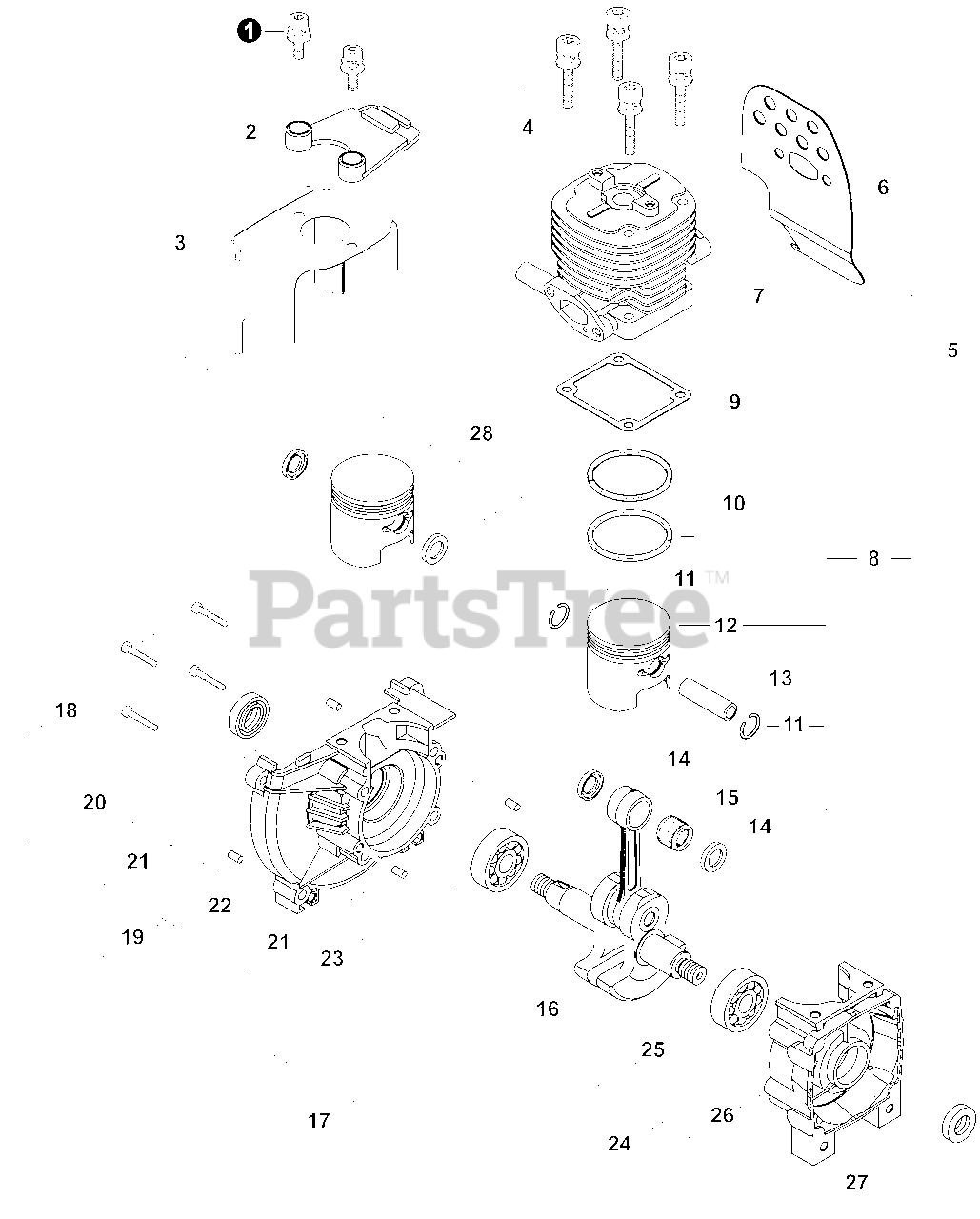

ENGINE Parts Diagram

  • Title
1

Echo V203000540

BOLT M5×18
(Superseded to V203000541)

$1.49

$

In Stock, only 4 left!

0

2

Echo A163000020

STAY, ENGINE COVER

$2.99

$

Usually ships in 2-4 days

0

3

Echo A160002430

COVER, ENGINE

$19.99

$

Usually ships in 2-4 days

0

4

Echo 9112205025

BOLT M5×25

$1.99

$

Usually ships in 2-4 days

0

5

Echo P021027280

REBUILD KIT - ENGINE
(Superseded to P021027281)

Note: Includes ITEMS 6-15

$156.99

$

Usually ships in 2-4 days

0

6

Echo V104001340

HEAT SHIELD, EXHAUST

$7.49

$

Usually ships in 2-4 days

0

7

Echo A130001330

CYLINDER

$59.99

$

Usually ships in 2-4 days

0

8

Echo P021031630

PISTON KIT
(Superseded to P021031631)

Note: Includes ITEMS 9-15

$

$

Not available

9

Echo V100000470

GASKET, CYLINDER

$1.99

$

In Stock, Qty 5

0

10

Echo A101000350

RING, PISTON

$4.99

$

In Stock, Qty 18

0

11

Echo V580000100

RING, SNAP

$0.99

$

In Stock, only 1 left!

0

12

$28.99

$

Usually ships in 2-4 days

0

13

Echo V609000040

PIN, PISTON

$5.49

$

Usually ships in 2-4 days

0

14

Echo V308000060

WASHER, THRUST 11
(Superseded to V308000061)

$5.49

$

Usually ships in 2-4 days

0

15

Echo V556000020

BEARING, NEEDLE 11

$9.99

$

Usually ships in 2-4 days

0

16

Echo A011000810

CRANKSHAFT ASSY

$65.99

$

Usually ships in 2-4 days

0

17

Echo P021033180

CRANKCASE ASSY
(Superseded to P021033182)

Note: Includes ITEMS 18-27

$88.99

$

In Stock, only 1 left!

0

18

Echo 90010505030

BOLT 5×30

$1.49

$

In Stock, only 1 left!

0

19

Echo P021030050

CRANKCASE ASSY, M
(Superseded to P021030051)

Note: Includes ITEMS 20-23

$45.99

$

Usually ships in 2-4 days

0

20

Echo V508000050

SEAL, OIL 16

$7.49

$

In Stock, Qty 12

0

21

Echo 90033050100

PIN, LOCATING 5×10

$0.99

$

Usually ships in 2-4 days

0

22

Echo A120001120

CRANKCASE M

$42.99

$

Usually ships in 2-4 days

0

23

Echo V592000290

BEARING, BALL 6202 C3

$7.49

$

Usually ships in 2-4 days

0

24

Echo P021033430

CRANKCASE ASSY, S
(Superseded to P021033431)

Note: Includes ITEMS 25-27

$26.99

$

In Stock, only 1 left!

0

25

Echo V592000290

BEARING, BALL 6202 C3

$7.49

$

Usually ships in 2-4 days

0

26

Echo A120000082

CRANKCASE S

$42.99

$

Usually ships in 2-4 days

0

27

Echo V508000050

SEAL, OIL 16

$7.49

$

In Stock, Qty 12

0

28

Echo P021031640

PISTON SET

$48.99

$

Usually ships in 2-4 days

0
