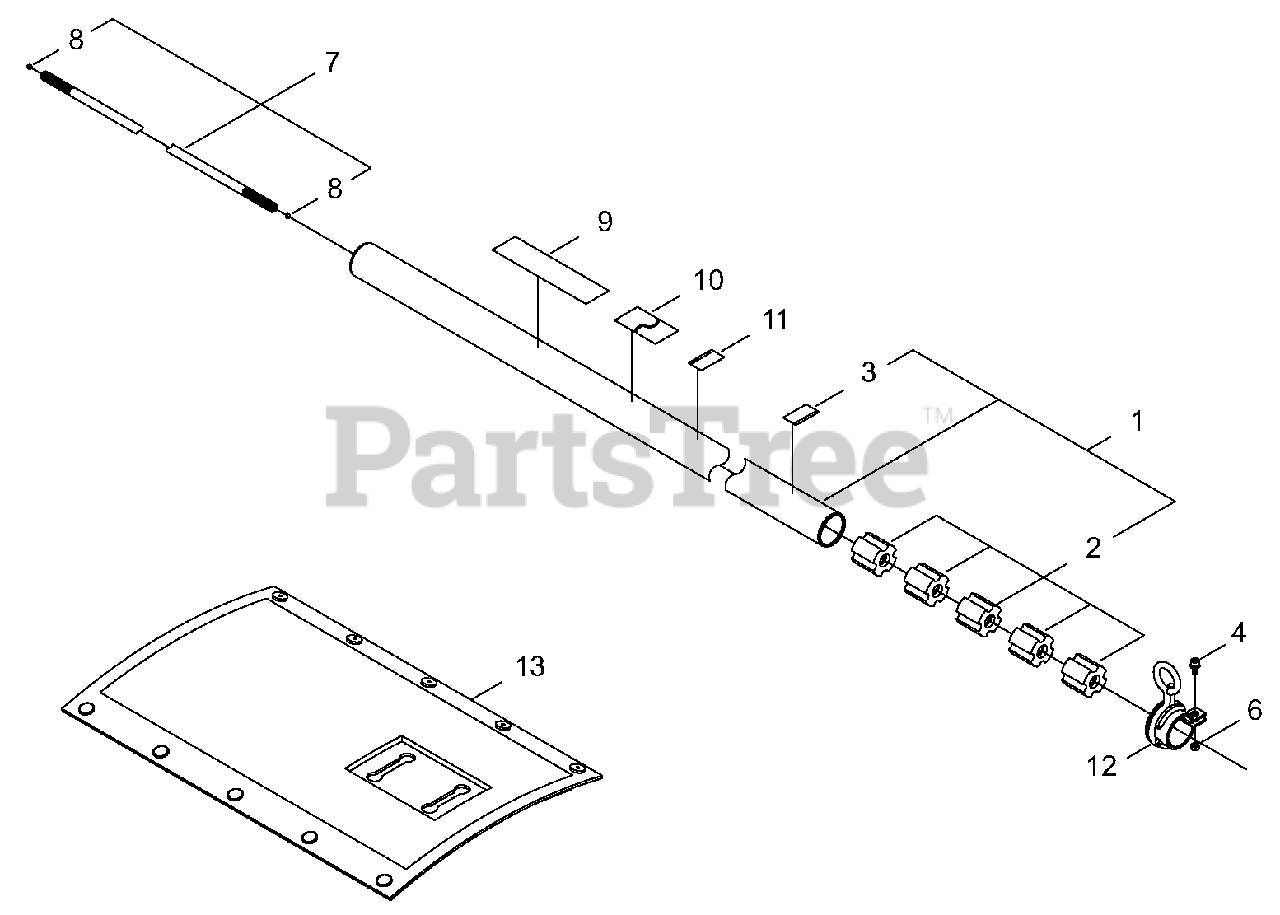

B 45 LA - Shindaiwa Brush Cutter (SN: 09013121 - 09096060) Main Pipe Parts Diagram

Brush Cutter

Main Pipe Parts Diagram

  • Title

1

Echo C050001890

MAIN PIPE ASSY

Note: 63081-62010

$86.99

$

Usually ships in 2-4 days

0

2

Echo C501000080

BUSHING
(Superseded to C501000090)

Note: 22021-12120

$5.49

$

Usually ships in 2-4 days

0

3

Echo X505002860

LABEL - ALIGNMENT
(Superseded to 89015204930)

Note: 72005-12140

$0.99

$

In Stock, Qty 9

0

4

Echo 90010505012

SCREW - 5X12

Note: 01020-05120

$1.49

$

In Stock, Qty 20+

0

5

Echo 90060500005

LOCKWASHER - 5

Note: 01600-05131

$0.99

$

In Stock, Qty 10

0

6

Echo 90050000005

NUT - 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

7

Echo C504000720

DRIVESHAFT ASSY
(Superseded to C504000730)

Note: 22021-12400

$92.99

$

In Stock, only 1 left!

0

8

Echo V585000040

STOPPER

Note: 22021-12420

$0.99

$

Usually ships in 2-4 days

0

9

Echo X504002780

LABEL - SHINDAIWA PROFESSIONAL

Note: 19420-00084

$3.49

$

In Stock, only 2 left!

0

10

Echo X505005890

LABEL - CAUTION

Note: 19422-00029

$5.49

$

Usually ships in 2-4 days

0

11

Echo X505002850

LABEL - HANDLE LOCATION

Note: 19401-00269

$0.99

$

In Stock, only 3 left!

0

12

Echo C063000030

HANGER ASSY

Note: 22017-12210

$9.49

$

Usually ships in 2-4 days

0

13

Echo V420002480

PROTECTOR

Note: 22017-17110

$19.99

$

Usually ships in 2-4 days

0
