B 45 LA - Shindaiwa Brush Cutter (SN: 09013121 - 09096060) Clutch, Crankshaft, Piston Parts Diagram

Brush Cutter

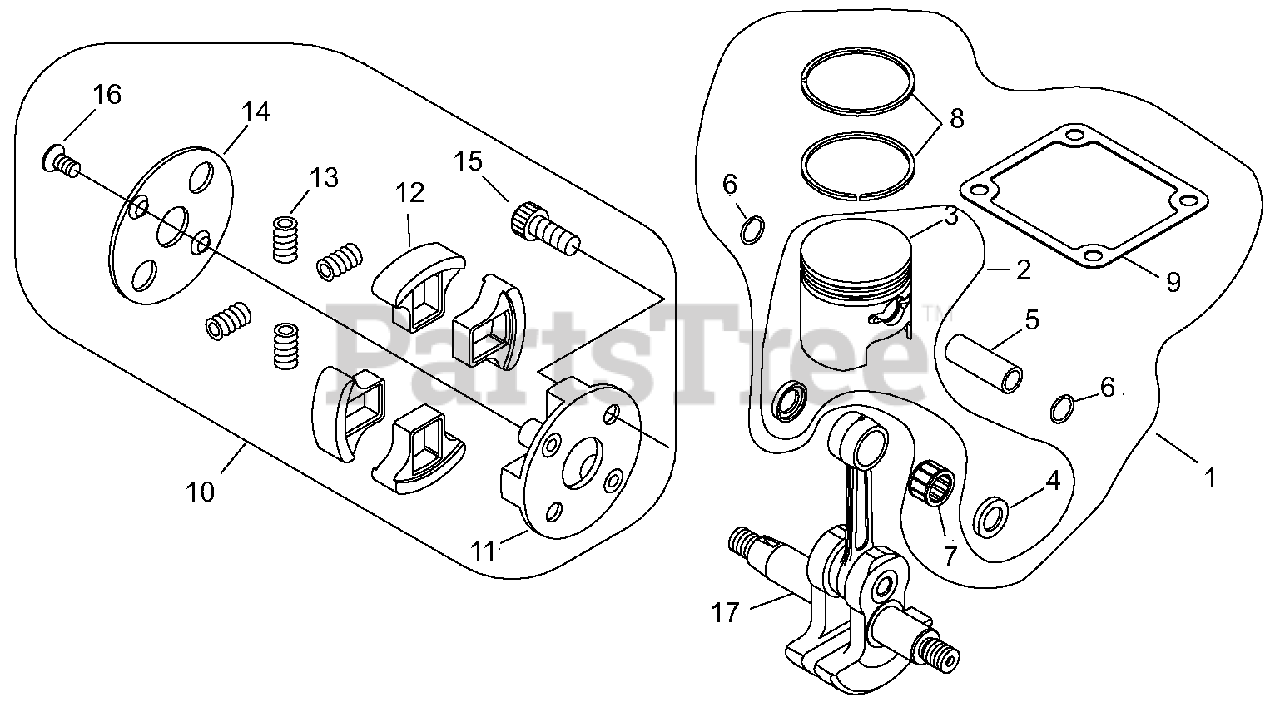

Clutch, Crankshaft, Piston Parts Diagram

  • Title

1

Echo P021031630

PISTON KIT
(Superseded to P021031631)

Note: 72080-98011

$

$

Not available

2

Echo P021031640

PISTON SET

Note: 72080-98310

$48.99

$

Usually ships in 2-4 days

0

3

Echo A100000660

PISTON

Note: 20021-41113

$28.99

$

Usually ships in 2-4 days

0

4

Echo V308000060

SPACER, PISTON
(Superseded to V308000061)

Note: 20021-41342

$5.49

$

Usually ships in 2-4 days

0

5

Echo V609000040

PIN, PISTON

Note: 20021-41311

$5.49

$

Usually ships in 2-4 days

0

6

Echo V580000100

RING, RETAINING

Note: 22152-41231

$0.99

$

In Stock, only 1 left!

0

7

Echo V556000020

BEARING, NEEDLE - 11

Note: 20021-41330

$9.99

$

Usually ships in 2-4 days

0

8

Echo A101000350

RING, PISTON

Note: 20021-41210

$4.99

$

In Stock, Qty 18

0

9

Echo V100000470

GASKET, CYLINDER

Note: 20010-12121

$1.99

$

In Stock, Qty 5

0

10

Echo A056000450

CLUTCH ASSY
(Superseded to A056000451)

Note: 70210-51100

$55.99

$

In Stock, only 1 left!

0

11

Echo A552000120

HUB, CLUTCH

Note: 20020-51112

$

$

Currently unavailable

12

Echo A555000130

SHOE, CLUTCH

Note: 20020-51121

$4.49

$

In Stock, only 1 left!

0

13

Echo A566000150

SPRING, CLUTCH
(Superseded to A566000220)

Note: 20020-51131

$1.99

$

In Stock, only 1 left!

0

14

Echo A551000120

PLATE, CLUTCH

Note: 20020-51140

$6.99

$

Usually ships in 2-4 days

0

15

Echo A557000120

BOLT, CLUTCH

Note: 20020-51150

$2.49

$

In Stock, only 2 left!

0

16

Echo V203000880

SCREW

Note: 70210-51160

$0.99

$

In Stock, Qty 9

0

17

Echo A011000810

CRANKSHAFT ASSY

Note: 20021-42002

$65.99

$

Usually ships in 2-4 days

0
