B 430 R - Shindaiwa Brush Cutter (SN: U08226001001 - U08226999999) GEAR CASE Parts Diagram

Brush Cutter

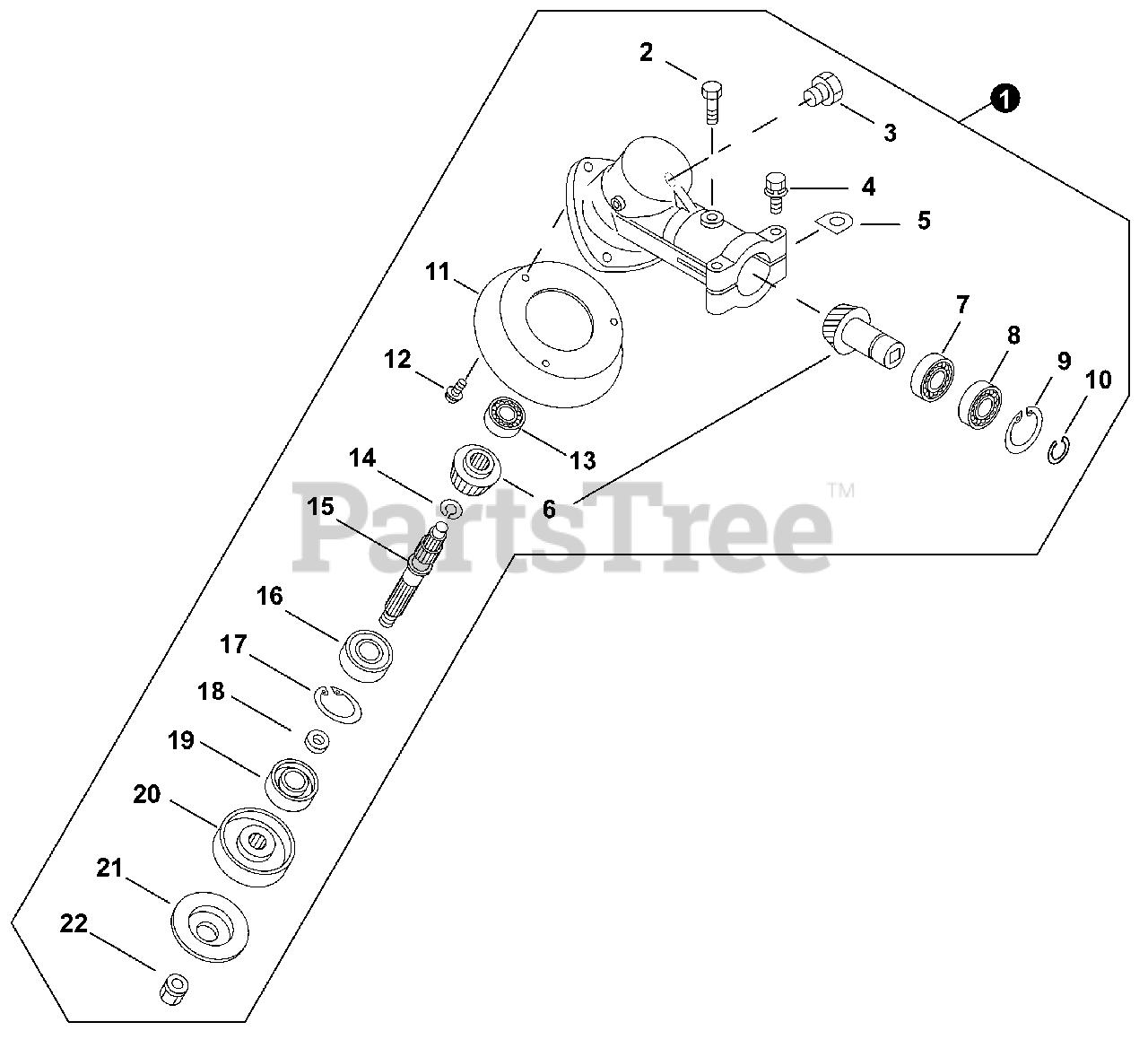

GEAR CASE Parts Diagram

  • Title

1

Echo C051001130

GEAR CASE ASSY

Note: Includes Items 2-22

$288.99

$

Usually ships in 2-4 days

0

2

Echo P022007060

BOLT

$0.99

$

Usually ships in 2-4 days

0

3

Echo 61043450031

BOLT M8×8

$1.99

$

In Stock, Qty 6

0

4

Echo P022007050

BOLT M5×30

$1.49

$

Usually ships in 2-4 days

0

5

Echo 61023904130

D-WASHER

$0.99

$

In Stock, Qty 10

0

6

Echo P022007460

GEAR SET

$100.99

$

Usually ships in 2-4 days

0

7

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$9.49

$

In Stock, only 3 left!

0

8

Echo 90080706001

BEARING, BALL 6001

$11.99

$

In Stock, only 2 left!

0

9

Echo 90070200028

RING, SNAP 28

$1.49

$

In Stock, Qty 13

0

10

Echo 90070100012

RING, SNAP 12

$0.99

$

In Stock, Qty 20+

0

11

Echo C536000030

COVER, GEAR CASE

$12.99

$

Usually ships in 2-4 days

0

12

Echo 90024205020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

13

Echo 90080036000

BEARING, BALL 6000

$11.99

$

Usually ships in 2-4 days

0

14

Echo 90070600012

RING, SNAP Ø12

$1.49

$

In Stock, Qty 6

0

15

Echo 61031005730

SHAFT, GEAR

$37.99

$

Usually ships in 2-4 days

0

16

Echo 9403536201

BEARING, BALL 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 90070200032

RING, SNAP Ø32

$1.99

$

In Stock, Qty 13

0

18

Echo 61031507130

SPACER 11.8×15×9

$3.99

$

In Stock, Qty 5

0

19

Echo 61041307130

SEAL, OIL 22

$5.99

$

In Stock, Qty 11

0

20

Echo 61031307132

PLATE, ADAPTOR - UPPER

$17.99

$

In Stock, Qty 5

0

21

Echo 61031421231

PLATE, ADAPTOR - LOWER

$14.99

$

Usually ships in 2-4 days

0

22

Echo 61032027430

NUT

$1.99

$

Usually ships in 2-4 days

0
