B 430 F - Shindaiwa Brush Cutter (SN: U08226001001 - U08226999999) RECOIL STARTER Parts Diagram

Brush Cutter

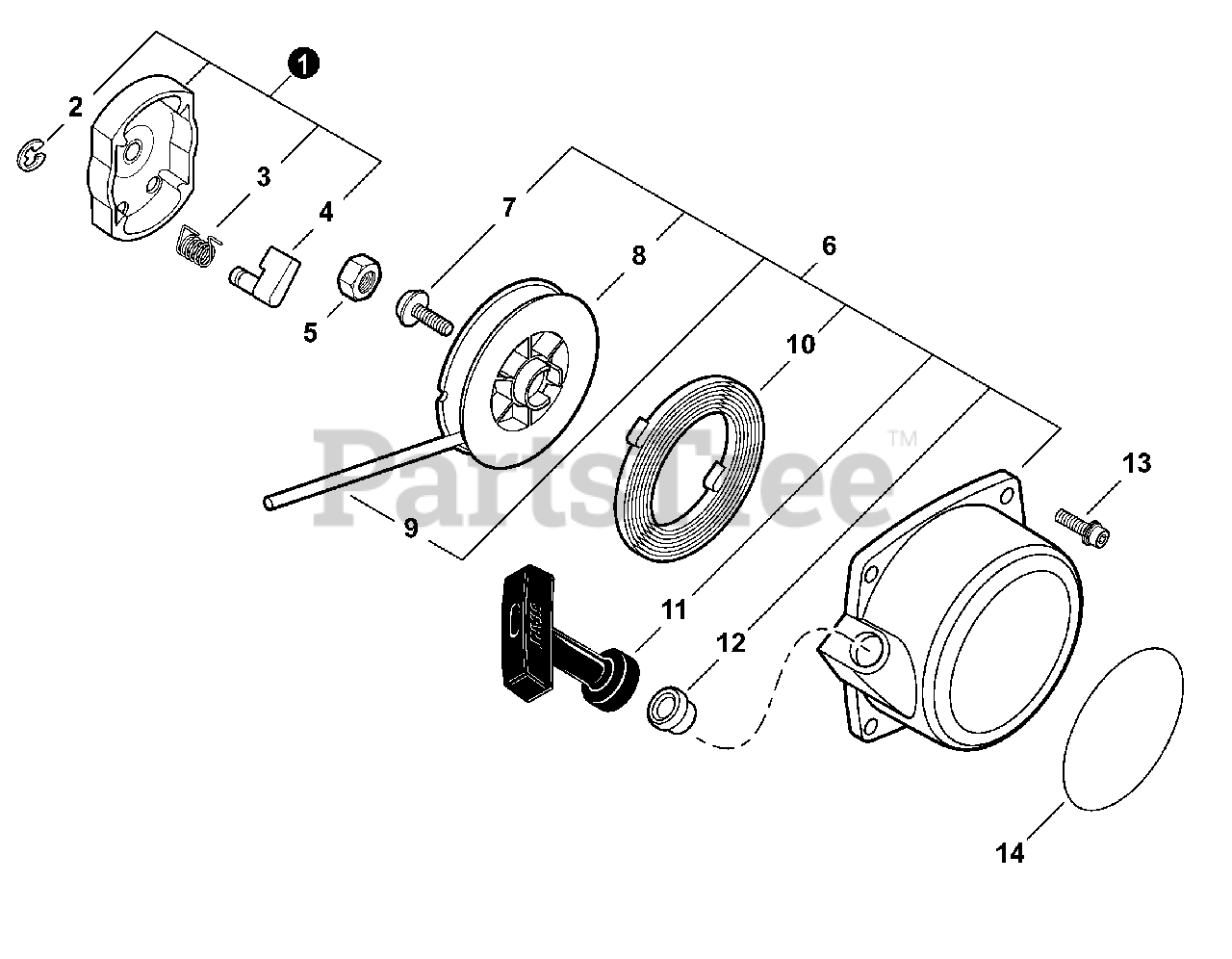

RECOIL STARTER Parts Diagram

  • Title

1

Echo A052000011

PULLEY ASSY, STARTER

Note: Includes Items 2-4

$13.99

$

Usually ships in 2-4 days

0

2

Echo P022002100

E-RING 4

$0.99

$

In Stock, Qty 7

0

3

Echo 17723440630

SPRING, RETURN

$3.49

$

In Stock, only 2 left!

0

4

Echo A514000120

PAWL, STARTER
(Superseded to P022003120)

$3.49

$

In Stock, Qty 8

0

5

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, only 2 left!

0

6

Echo A051000190

STARTER ASSY, RECOIL

Note: Includes Items 7-13

$73.99

$

Usually ships in 2-4 days

0

7

Echo 17723606910

SCREW

$3.49

$

Usually ships in 2-4 days

0

8

Echo P022002080

REEL, ROPE

$15.99

$

Usually ships in 2-4 days

0

9

Echo 17722606310

ROPE, STARTER 3.8×1150

$5.99

$

In Stock, only 4 left!

0

10

Echo 17722006310

SPRING, RECOIL

$15.99

$

Usually ships in 2-4 days

0

11

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

12

Echo P022039320

CASE, STARTER

Note: Includes Item 13

$31.99

$

Usually ships in 2-4 days

0

13

Echo P022045770

GUIDE, ROPE

$3.49

$

In Stock, only 1 left!

0

14

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

15

Echo X562000170

LABEL, STARTER - SHINDAIWA

$2.99

$

Usually ships in 2-4 days

0
