B 40 - Shindaiwa Brush Cutter Ignition System Parts Diagram

Brush Cutter

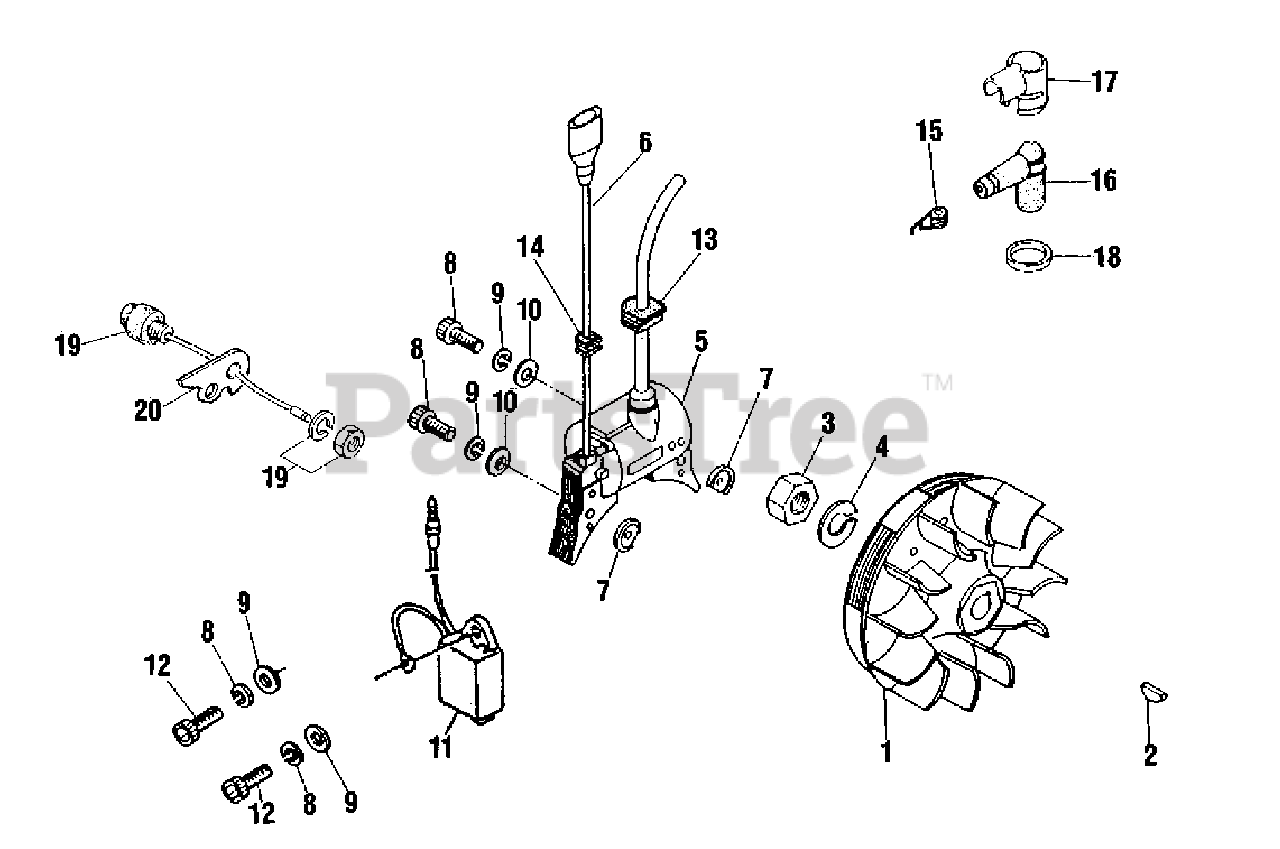

Ignition System Parts Diagram

  • Title

1

Echo 20010-71200

FLYWHEEL

$

$

Currently unavailable

2

Echo 22100-43210

KEY - 3X10
(Superseded to 12408-03100)

$1.99

$

In Stock, only 2 left!

0

3

Echo 01511-10061

NUT - 10
(Superseded to 90050300010)

$1.49

$

Usually ships in 2-4 days

0

4

Echo 01600-10251

LOCKWASHER - 10
(Superseded to 90060500010)

$0.99

$

In Stock, Qty 8

0

5

Echo 20020-71610

IGNITION COIL ASSY
(Superseded to Discontinued)

$

$

Not available

6

Echo 99900-02456

WIRE
(Superseded to Discontinued)

$

$

Not available

7

Echo 20010-71631

INSULATOR
(Superseded to V352000140)

$1.99

$

In Stock, only 1 left!

0

8

Echo 01020-04260

SCREW - 4X26
(Superseded to Discontinued)

$

$

Not available

9

Echo 01600-04101

LOCKWASHER - 4
(Superseded to 90060500004)

$0.99

$

In Stock, Qty 20+

0

10

Echo 20010-71650

WASHER
(Superseded to V302000010)

$0.99

$

In Stock, Qty 6

0

11

Echo 72920-71711

UNIT, ELECTRONIC
(Superseded to A416000000)

$59.99

$

Usually ships in 2-4 days

0

12

Echo 11024-04120

SCREW - 4X12
(Superseded to V202000180)

$0.99

$

In Stock, Qty 20+

0

13

Echo 20011-72110

GROMMET
(Superseded to V135000080)

$1.99

$

Usually ships in 2-4 days

0

14

Echo 20011-72120

GROMMET
(Superseded to V136000060)

$0.99

$

Usually ships in 2-4 days

0

15

Echo 20000-72230

TERMINAL, SPARK PLUG CAP
(Superseded to A426000050)

$1.49

$

In Stock, Qty 6

0

16

Echo 20010-72221

CAP, SPARK PLUG
(Superseded to A427000090)

$5.99

$

In Stock, only 4 left!

0

17

Echo 20000-72241

CAP, SPARK PLUG
(Superseded to A429000110)

$1.99

$

In Stock, only 4 left!

0

18

Echo 20000-72250

SEAL, DUST
(Superseded to V495001440)

$0.99

$

In Stock, only 4 left!

0

19

Echo 22011-11411

SWITCH, IGNITION
(Superseded to A045000330)

$13.99

$

Usually ships in 2-4 days

0

20

Echo 22011-74120

BRACKET

$

$

Currently unavailable
