B 3000 - Swisher Brushcutter Outer Tube, Hanger Parts Diagram

Brushcutter

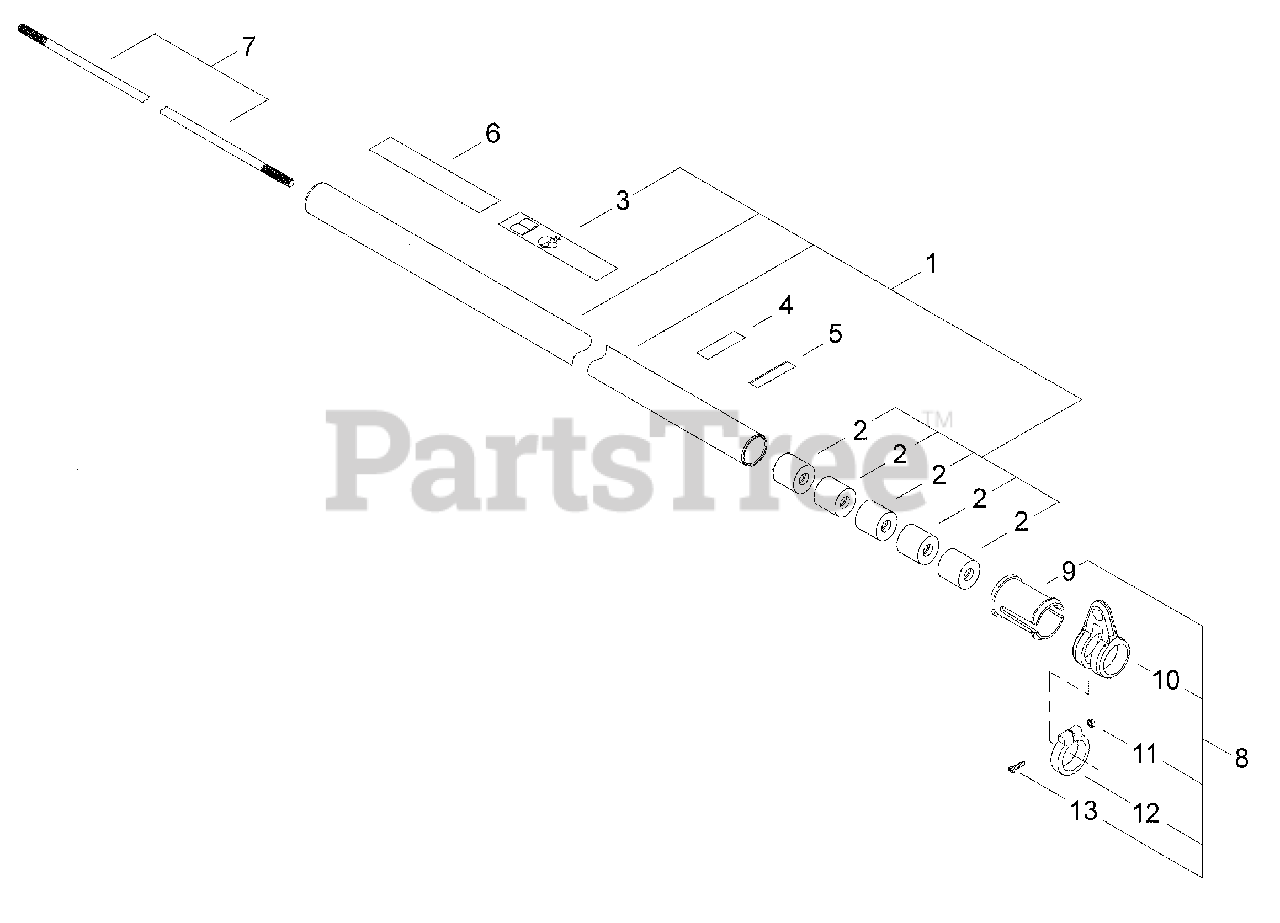

Outer Tube, Hanger Parts Diagram

  • Title
1

OUTER TUBE ASSY

$

$

Not available

2

Echo 22035-12121

BUSHING
(Superseded to C501000010)

$4.49

$

In Stock, Qty 6

0

3

Echo 19422-00029

LABEL - CAUTION
(Superseded to X505005890)

$5.49

$

Usually ships in 2-4 days

0

4

Echo 19401-00269

LABEL - INSTRUCTION
(Superseded to X505002850)

$0.99

$

In Stock, only 3 left!

0

5

Echo 72005-12140

LABEL - HANDLE LOCATION
(Superseded to X505002860)

$0.99

$

In Stock, Qty 9

0

6

Echo 63917-91320

LABEL - SWISHER E4
(Superseded to X504002050)

$3.49

$

Usually ships in 2-4 days

0

7

Echo 22070-12410

PIPE, MAIN
(Superseded to C504000500)

$19.99

$

Usually ships in 2-4 days

0

8

Echo 33008-62340

HANGER ASSY
(Superseded to C063000000)

$10.99

$

Usually ships in 2-4 days

0

9

Echo 33008-62321

COLLAR
(Superseded to V363000110)

$2.49

$

Usually ships in 2-4 days

0

10

Echo 33008-62151

HANGER
(Superseded to C670000060)

$4.49

$

Usually ships in 2-4 days

0

11

Echo 01500-04031

NUT - 4
(Superseded to 90054)

$

$

Not available

12

Echo 33008-62311

CLAMP
(Superseded to V495001330)

$2.49

$

Usually ships in 2-4 days

0

13

Echo 11203-04160

SCREW - 4X16
(Superseded to 9157804016)

$0.99

$

Usually ships in 2-4 days

0
