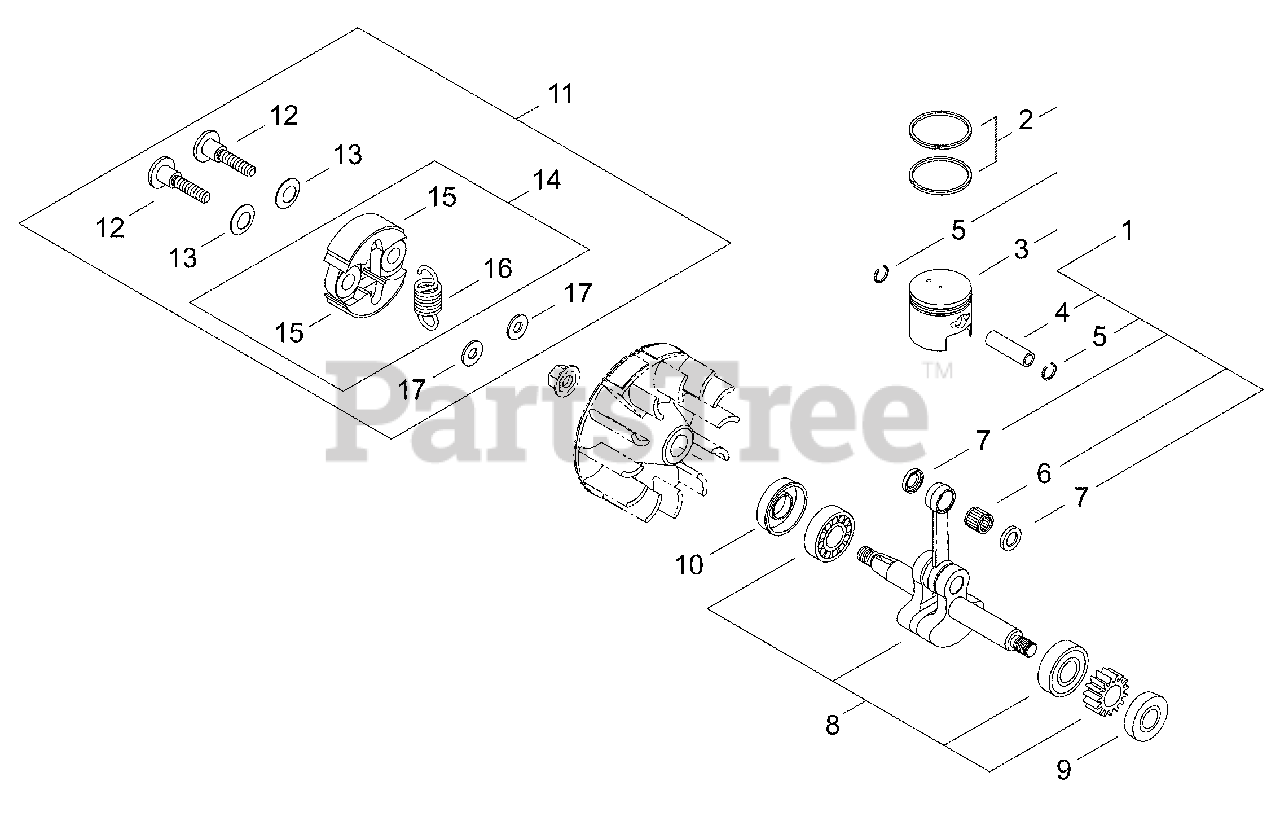

B 3000 - Swisher Brushcutter Clutch Shoe, Piston Parts Diagram

Brushcutter

Clutch Shoe, Piston Parts Diagram

  • Title

1

Echo 62902-41310

PISTON KIT
(Superseded to P021033930)

$61.99

$

In Stock, only 1 left!

0

2

Echo 62902-41120

RING, PISTON
(Superseded to A101000390)

$4.49

$

Usually ships in 2-4 days

0

3

Echo 62902-41110

PISTON
(Superseded to A100000710)

$34.99

$

In Stock, only 1 left!

0

4

Echo 62901-41210

PIN, PISTON
(Superseded to V607000040)

$4.49

$

Usually ships in 2-4 days

0

5

Echo 20000-41320

RING, RETAINING
(Superseded to V580000090)

$5.49

$

In Stock, only 2 left!

0

6

Echo 62901-41230

BEARING, NEEDLE
(Superseded to V554000010)

$6.49

$

In Stock, only 2 left!

0

7

Echo V392000020

SPACER - 9

$2.49

$

In Stock, Qty 10

0

8

Echo 62902-42020

CRANKSHAFT ASSY
(Superseded to A011000630)

$119.99

$

Usually ships in 2-4 days

0

9

Echo 62901-42260

SEAL, OIL - 12
(Superseded to V505000020)

$6.49

$

In Stock, only 2 left!

0

10

Echo 62901-42270

SEAL, OIL - 12
(Superseded to V505000120)

$26.99

$

In Stock, only 1 left!

0

11

Echo 62901-51011

CLUTCH SHOE SET
(Superseded to A056000520)

$42.99

$

In Stock, Qty 15

0

12

Echo 20087-51210

BOLT, CLUTCH
(Superseded to A557000040)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 20087-51231

WASHER - SPRING
(Superseded to V346000040)

$0.99

$

Usually ships in 2-4 days

0

14

Echo 62901-51021

CLUTCH ASSY
(Superseded to A056000530)

$42.99

$

In Stock, Qty 15

0

15

Echo 70140-51113

SHOE, CLUTCH
(Superseded to A553000060)

$18.99

$

In Stock, only 4 left!

0

16

Echo 70140-51220

SPRING, CLUTCH
(Superseded to A566000200)

$2.49

$

In Stock, only 3 left!

0

17

Echo 22100-71430

WASHER - 6
(Superseded to V304000150)

$0.99

$

Usually ships in 2-4 days

0
