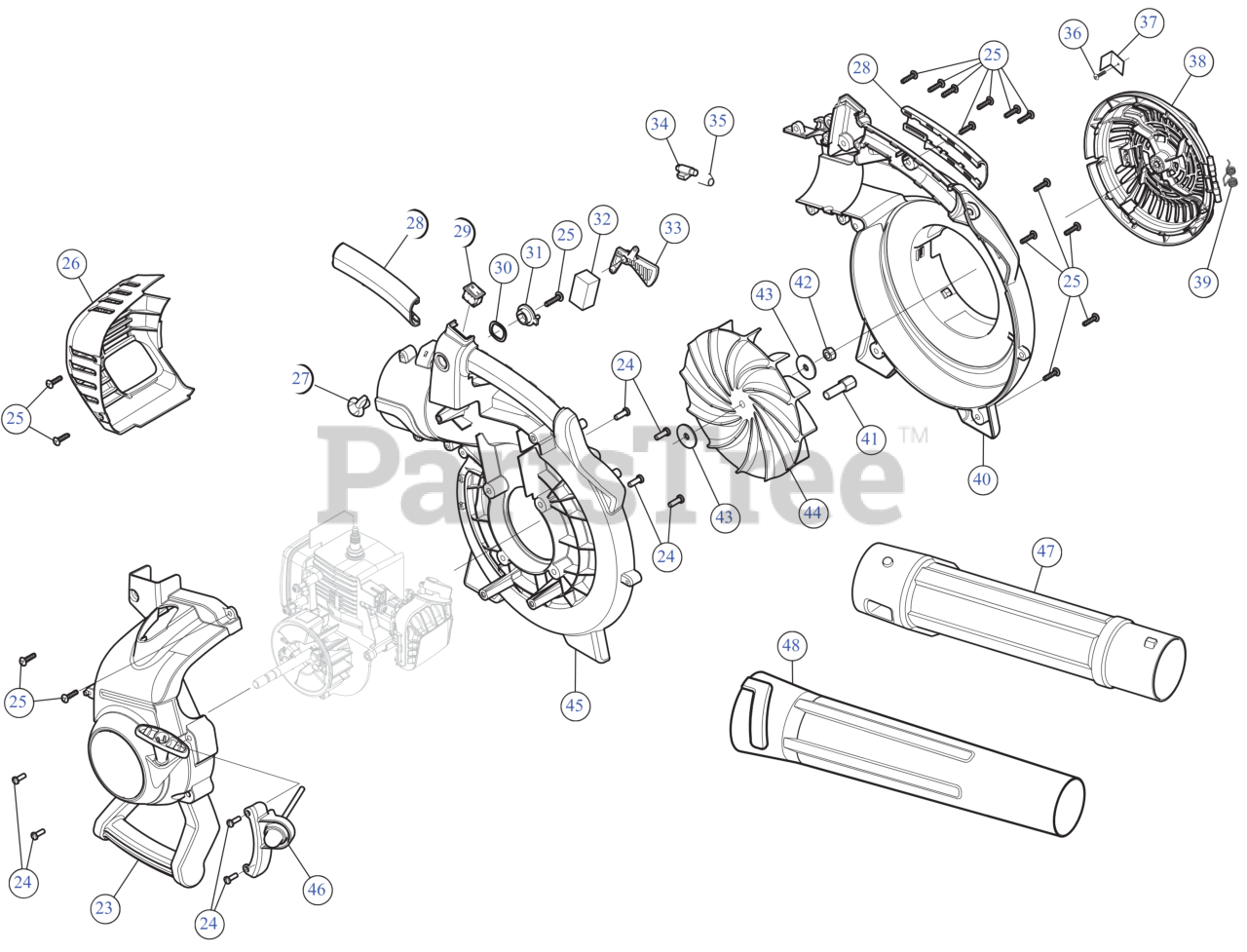

B 235 (CMXGAAMR27AB) (41AR27AB791) - Craftsman Handheld Blower General Assembly Parts Diagram

Handheld Blower

General Assembly Parts Diagram

  • Title
23

MTD 753-09244

STARTER HOUSING ASSEMBLY

Note: (Incl. 24 & 25)

$28.99

$

In Stock, only 4 left!

0

24

MTD 791-181862

SCREW:10-32X.562:#8P
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

25

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

26

MTD 753-06694

MUFFLER COVER

Note: (Incl. 25)

$

$

Not available

27

MTD 753-05932

TRIGGER LOCK OTR

$2.99

$

Usually ships in 3-6 days

0

28

MTD 753-05919

ANDLE GRIP ASSEMBLY

$6.49

$

Usually ships in 3-6 days

0

29

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

30

MTD 753-05925

WASHER WAVEY
(Superseded to 736-04353)

$6.49

$

Usually ships in 3-6 days

0

31

MTD 753-05924

TRIGGER LOCK INR

$2.99

$

Usually ships in 3-6 days

0

32

MTD 753-05254

AIR FILTER

$5.99

$

In Stock, Qty 6

0

33

MTD 753-05930

THROTTLE TRIGGER

$

$

Not available

34

MTD 753-05926

LATCH TUBE

$2.99

$

Usually ships in 3-6 days

0

35

MTD 753-05939

SPRING LATCH

$2.99

$

In Stock, only 1 left!

0

36

MTD 1755

SCREW-10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

37

MTD 753-06696

DOOR LOCK SC

$2.99

$

Usually ships in 3-6 days

0

38

MTD 753-06678

INTAKE COVER

$3.99

$

Usually ships in 3-6 days

0

39

MTD 753-05918

SPRING

$2.99

$

Usually ships in 3-6 days

0

40

MTD 753-06679

IMPELLER HOUSING OTR

$20.99

$

In Stock, only 1 left!

0

41

MTD 753-06700

ADAPTER STARTER

$5.49

$

In Stock, Qty 7

0

42

MTD 912-0237

HEX NUT CENTER
(Superseded to 712-0237)

$

$

Not available

43

MTD 753-05928

WASHER FLAT

$2.99

$

In Stock, Qty 20+

0

44

MTD 753-05929

IMPELLER

$13.99

$

In Stock, Qty 20+

0

45

MTD 753-06693

IMPELLER HOUSING INR

$17.99

$

In Stock, only 1 left!

0

46

MTD 753-09024

REMOTE PRIMER BRACKET

$4.99

$

Usually ships in 3-6 days

0

47

MTD 753-05936

UPPER TUBE

$19.99

$

Usually ships in 3-6 days

0

48

MTD 753-05937

LOWER TUBE

$18.99

$

Usually ships in 3-6 days

0
