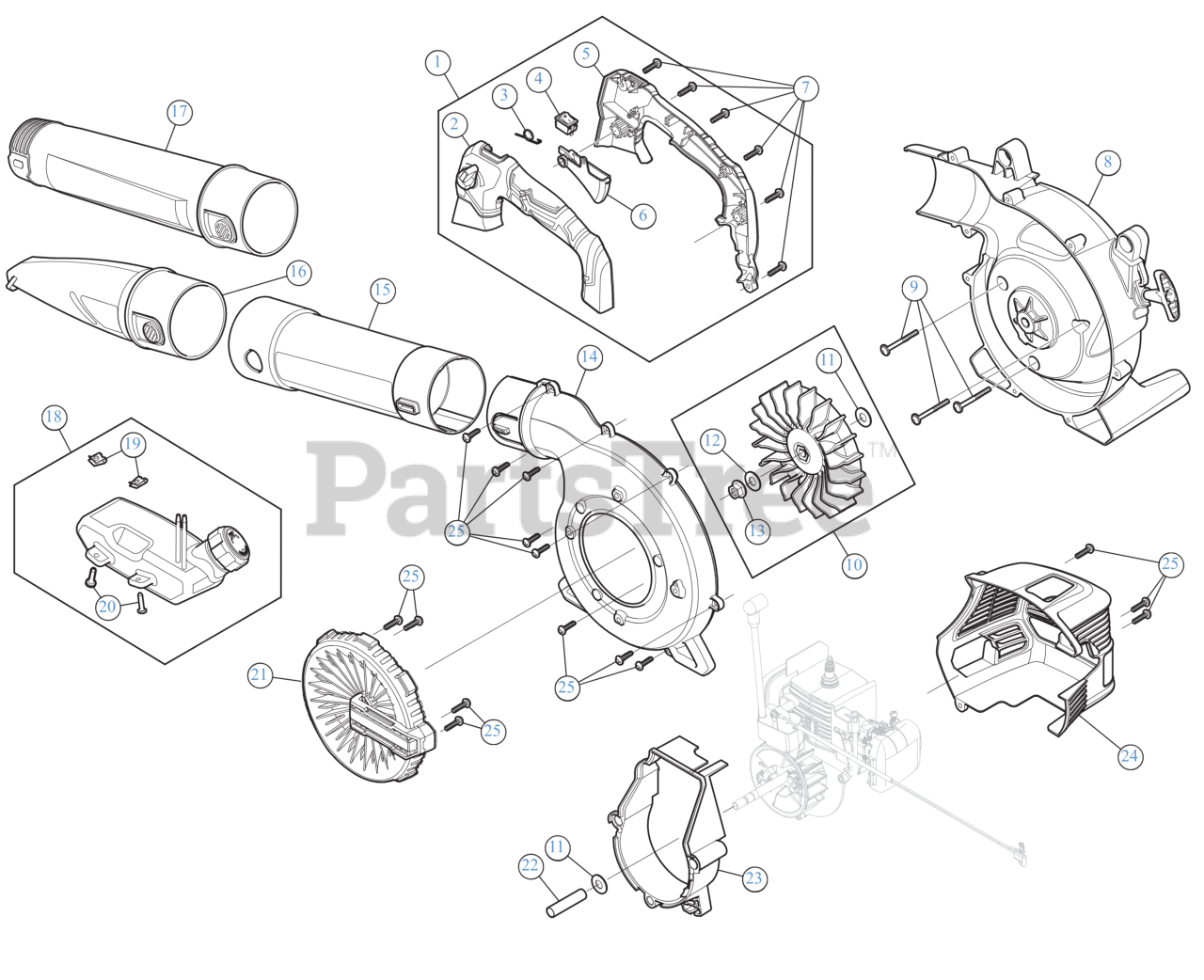

B 2200 (CMXGAAMRBL25) (41BRBL25793) - Craftsman Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title
1

MTD 753-11133

HANDLE ASSEMBLY

Note: (Incl. 1 - 7)

$8.49

$

Usually ships in 3-6 days

0

2

MTD 841-015663S

HANDLE (LH)

$4.99

$

Usually ships in 3-6 days

0

3

MTD 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

4

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

5

MTD 731-26367

HANDLE (RH)

$

$

Currently unavailable

6

MTD 731-26366

THROTTLE TRIGGER

$

$

Currently unavailable

7

MTD 710-06915

SCREW M5X1.8

$3.49

$

Usually ships in 3-6 days

0

8

MTD 753-11134

IMPELLER HOUSING (RH)

Note: (Incl. 9)

$25.99

$

In Stock, only 1 left!

0

9

MTD 710-06341

SCREW 10/32

$3.49

$

In Stock, only 2 left!

0

10

MTD 753-08491

IMPELLER ASSEMBLY

Note: (Incl. 11 - 13)

$7.99

$

In Stock, Qty 20+

0

11

MTD 736-05080

FLAT WASHER

$3.49

$

Usually ships in 3-6 days

0

12

MTD 736-04110A

LOCK WASHER

$5.49

$

In Stock, only 1 left!

0

13

MTD 712-04137

NUT 3/8-24

$6.99

$

In Stock, only 1 left!

0

14

MTD 753-09185

IMPELLER HOUSING ASSEMBLY (OUTER)

Note: (Incl. 25)

$12.99

$

Usually ships in 3-6 days

0

15

MTD 731-10598

TUBE UPPER

$7.49

$

In Stock, only 1 left!

0

16

MTD 731-11154

NOZZLE

$5.49

$

In Stock, only 4 left!

0

17

MTD 841-051361S

LOWER BLOWER TUBE

$8.99

$

Usually ships in 3-6 days

0

18

MTD 753-08508

FUEL TANK ASSEMBLY

Note: (Incl. 19 & 20)

$21.99

$

In Stock, only 2 left!

0

19

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

20

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

21

MTD 753-11135

INTAKE COVER

Note: (Incl. 25)

$3.99

$

Usually ships in 3-6 days

0

22

MTD 750-06367

SPACER

$3.49

$

Usually ships in 3-6 days

0

23

MTD 753-08496

ENGINE ADAPTER

Note: (Incl. 9)

$7.49

$

Usually ships in 3-6 days

0

24

MTD 753-08510

ENGINE COVER

Note: (Incl. 25)

$22.99

$

Usually ships in 3-6 days

0

25

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0
