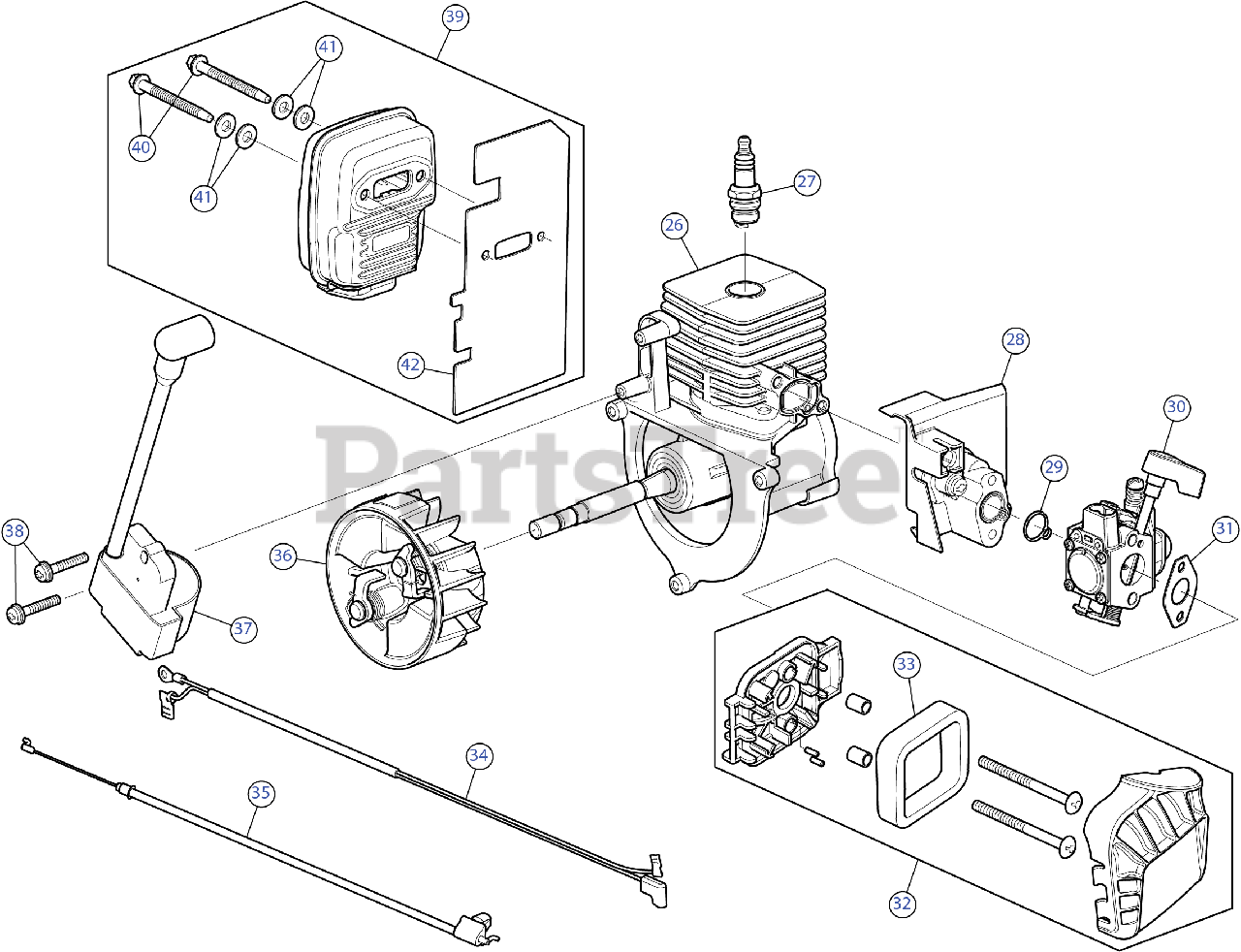

B 215 (CMXGAAMA25BL) (41AR25BL791) - Craftsman Handheld Blower Engine Assembly Parts Diagram

Handheld Blower

Engine Assembly Parts Diagram

  • Title

26

MTD 753-09204

SHORT BLOCK

$54.99

$

In Stock, only 1 left!

0

27

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

28

MTD 753-06189

INTAKE ASSEMBLY

$7.99

$

In Stock, only 3 left!

0

29

MTD 753-06185

O-RING

$3.49

$

In Stock, Qty 20+

0

30

MTD 753-06288

CARBURETOR

$37.99

$

In Stock, only 2 left!

0

31

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

32

MTD 753-08507

AIRCLEANER ASSEMBLY

Note: (Incl. 33)

$8.99

$

In Stock, Qty 6

0

33

MTD 791-181757

AIR FILTER

$3.99

$

In Stock, Qty 20+

0

34

MTD 725-06313

WIRE LEAD

$3.49

$

In Stock, only 1 left!

0

35

MTD 746-05226

THROTTLE CABLE

$4.99

$

In Stock, only 1 left!

0

36

MTD 753-08490

FLYWHEEL ASSEMBLY

$15.99

$

In Stock, only 1 left!

0

37

MTD 753-08489

MODULE

$17.99

$

In Stock, Qty 20+

0

38

MTD 710-06301

SCREW 8-32X.750

$3.49

$

Usually ships in 3-6 days

0

39

MTD 753-08488

MUFFLER ASSEMBLY

Note: (Incl. 40 - 42)

$29.99

$

In Stock, only 3 left!

0

40

MTD 753-06294

MUFFLER SCREW

$2.99

$

Usually ships in 3-6 days

0

41

MTD 791-182568

WASH, FLAT .480X.1

$4.49

$

Usually ships in 3-6 days

0

42

MTD 721-04801

GASKET

$3.49

$

In Stock, only 1 left!

0
