B-12 (2025072) - Allis-Chalmers Garden Tractor, 12hp FRAME HOOD, GRILL, INST. PANEL & STEERING POST - Mfg Nos. 990308 thru 990400 Parts Diagram

Garden Tractor, 12hp

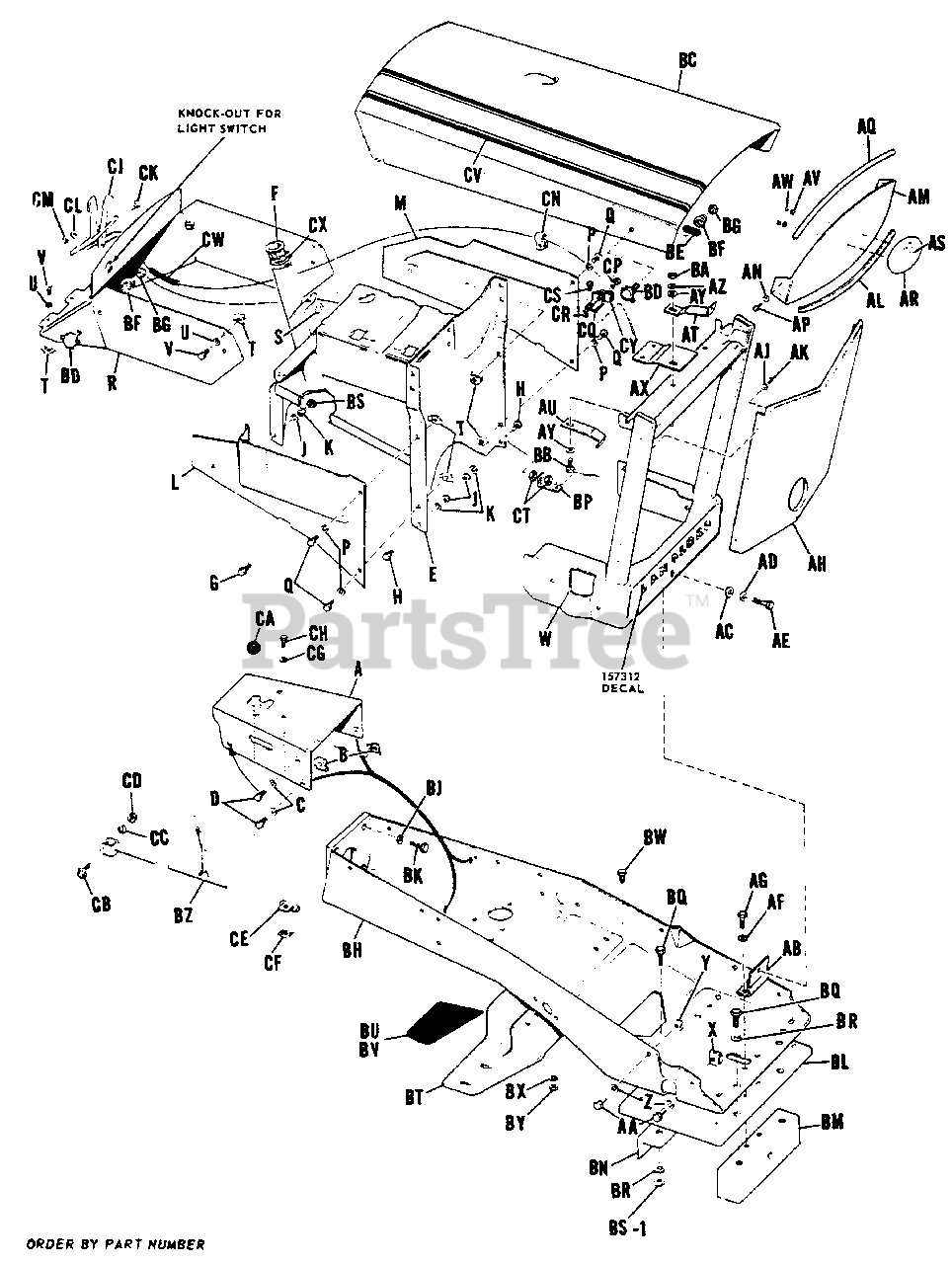

FRAME HOOD, GRILL, INST. PANEL & STEERING POST - Mfg Nos. 990308 thru 990400 Parts Diagram

  • Title

A

Simplicity 157092

Frame Cover

$

$

Not available

B

Simplicity 2718032

Retainer Nut

$

$

Not available

C

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

D

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8" lg.

$

$

Not available

E

Simplicity 157068

Support Assembly, Fuel Tank & Steering Post

$

$

Not available

F

Simplicity 2157077SM

Bushing, Steering

$140.99

$

Usually ships in 2-12 days

0

G

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

H

Simplicity 2705012

Hex Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

J

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

K

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

L

Simplicity 157082

Panel, R.H. Side

$

$

Not available

M

Simplicity 157058

Panel, L.H. Side

$

$

Not available

P

Simplicity 2720003

Lock Washer, 1/4

$

$

Not available

Q

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8"

$

$

Not available

R

Simplicity 157063

Dash Assembly

$

$

Not available

S

Simplicity 2718033

Nut, Flange, "Whiz-Lock", 5/16"-18

$

$

Not available

T

Simplicity 2718032

Nut Retainer

$

$

Not available

U

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

V

Simplicity 2715018

Hex Capscrew, 1/4"-20 x 5/8" lg. Grade 5

$

$

Not available

W

Simplicity 157477

Cover & Tube Assembly (To Replace Broken Ear Use 157385 Brkt.)

$

$

Not available

X

Simplicity 2718022

Nut Retainer (Front)

$

$

Not available

Y

Simplicity 2718030

Nut Retainer (Rear)

$

$

Not available

Z

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AA

Simplicity 2715048

Hex Capscrew, 5/16"-18 x 3/4" lg. Grade 5

$

$

Not available

AB

Simplicity 157488

Bracket Assembly

$

$

Not available

AC

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AD

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AE

Simplicity 2705019

Hex Capscrew, 5/16"-18 x 1-1/4" lg.

$

$

Not available

AF

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AG

Simplicity 2705018

Hex Capscrew, 5/16"-18 x 1-1/2" lg.

$

$

Not available

AH

Simplicity 157076

Front Grille

$

$

Not available

AJ

Simplicity 2719007

Plain Washer, 3/16

$

$

Not available

AK

Simplicity 2714003

Screw, Self-Tap, Recessed Hex Hd., #10 Dia. x 1/2" lg.

$

$

Not available

AL

Simplicity 157115

Trim, Lower Grille

$

$

Not available

AM

Simplicity 157061

Grille, Top

$

$

Not available

AN

Simplicity 2719007

Plain Washer, 3/16"

$

$

Not available

AP

Simplicity 2714003

Self-Tap, Recessed Hex Hd., #10 Dia. x 1/2" lg.

$

$

Not available

AQ

Simplicity 157114

Trim, Upper Grille

$

$

Not available

AR

Simplicity 157071

Support Assembly, Emblem

$

$

Not available

AS

Simplicity 157074

Film, Front Emblem

$

$

Not available

AT

Simplicity 157111

Brace, Upper Grille (Top)

$

$

Not available

AU

Simplicity 157112

Brace, Upper Grille (Bottom)

$

$

Not available

AV

Simplicity 720007

Lock Washer, #12

$

$

Not available

AW

Simplicity 2717023

Nut, Full, Hex, #10-24

$

$

Not available

AX

Simplicity 157104

Bracket, Grille (157480 for 399 & 400)

$

$

Not available

AY

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

AZ

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BA

Simplicity 2717005

Nut, Full, Hex, 1/4"-20

$

$

Not available

BB

Simplicity 2715051

Hex Capscrew, 1/4'-20 x 1" lg.

$

$

Not available

BC

Simplicity 157064

Hood

$

$

Not available

BD

Simplicity 2156309

Tee Handle Assy.

$

$

Not available

BE

Simplicity 157101

Nut

$

$

Not available

BF

Simplicity 2157127SM

Spring, Conical

$

$

Not available

BG

Simplicity 2717511

Lock Nut, Full, Hex, 5/16"-18

$

$

Not available

BH

Simplicity 157085

Frame Assembly

$

$

Not available

BJ

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

BK

Simplicity 705039

Hex Capscrew, 7/16-14 x 1-1/2"

$6.99

$

In Stock, only 2 left!

0

BL

Simplicity 157057

Weight, Base

$

$

Not available

BM

Simplicity 157060

Support

$

$

Not available

BN

Simplicity 157482

Angle, Frame, Rear

$

$

Not available

BP

Simplicity 2157108

Clamp

$

$

Not available

BQ

Simplicity 2706003

Hex Capscrew, 7/16" 20 x 1-1/2" lg.

$

$

Not available

BR

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

BS

Simplicity 2717511

Hex Locknut, 5/16"-18

$

$

Not available

BS

Simplicity 157146

Film, Decorative

$

$

Not available
