B-12 (2025071) - Allis-Chalmers Garden Tractor, 12hp CLUTCH AND BRAKE GROUP - MFG Nos.990308 thru 990400 Parts Diagram

Garden Tractor, 12hp

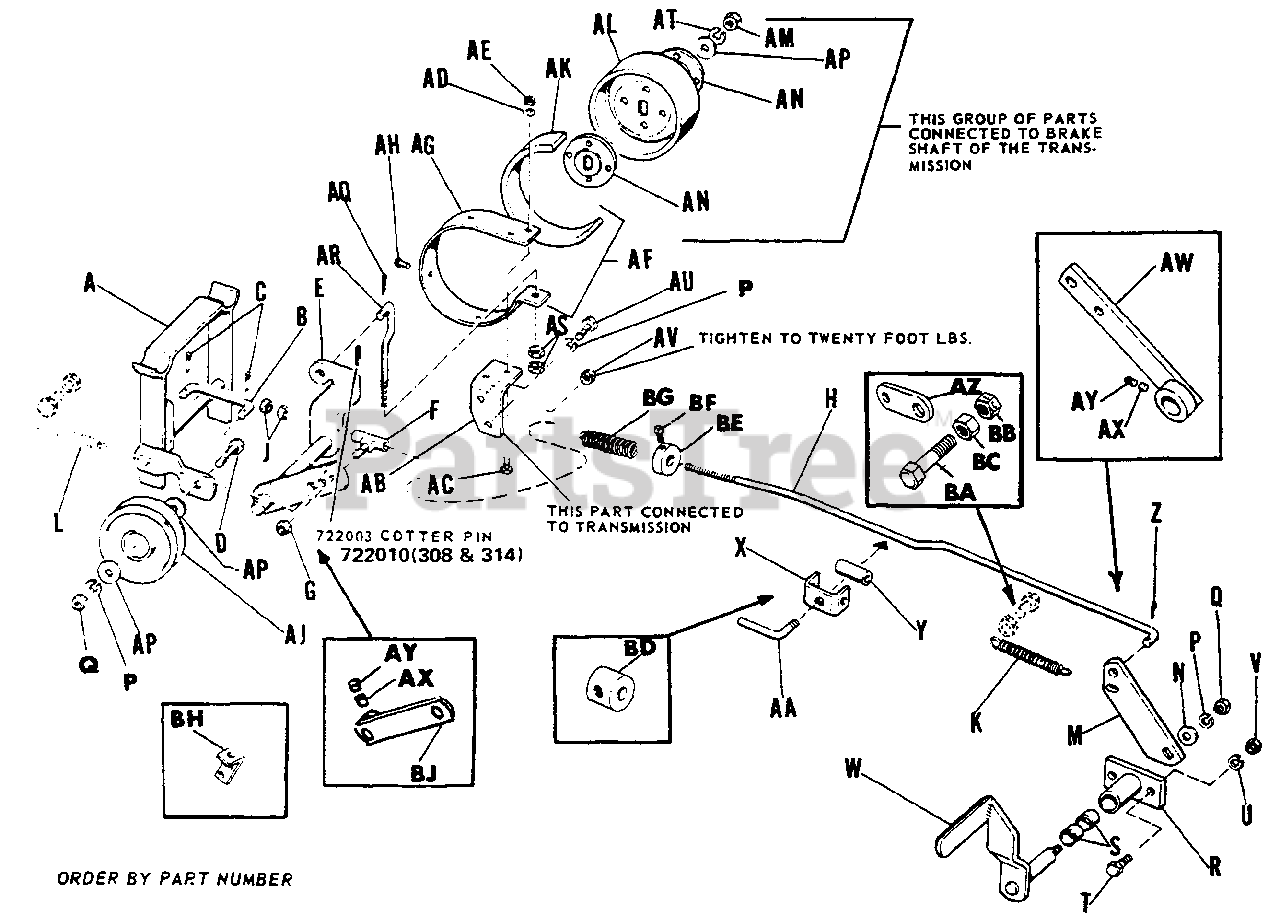

CLUTCH AND BRAKE GROUP - MFG Nos.990308 thru 990400 Parts Diagram

  • Title

A

Simplicity 157034

Support Assembly-Seat

$

$

Not available

B

Simplicity 157039

Clutch Lever Link

$

$

Not available

C

Simplicity 2722001

Cotter Pin

$

$

Not available

D

Simplicity 2705016

Hex. Cap Screw

$

$

Not available

E

Simplicity 157274

Lever Assembly-Pivot (154111)*

$

$

Not available

F

Simplicity 2154117SM

Guide Assembly-Rod

$19.99

$

Usually ships in 2-12 days

0

G

Simplicity 2717511

Full Lock Hex. Nut

$

$

Not available

H

Simplicity 157303

Brake & Clutch Rod (157040)*

$

$

Not available

J

Simplicity 2717001

Full Hex. Nut

$

$

Not available

K

Simplicity 2159106SM

Tension Spring (154369)*
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

L

Simplicity 2156302

Tension Spring (157041)*
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

M

Simplicity 2157300SM

Pedal Foot Arm

$13.99

$

Usually ships in 2-12 days

0

N

Simplicity 2719001

Plain Washer

$

$

Not available

P

Simplicity 2720002

Lock Washer

$

$

Not available

Q

Simplicity 2717003

Full Hex. Nut

$

$

Not available

R

Simplicity 154123

Foot Pedal Bearing Ass'y

$

$

Not available

S

Simplicity 8271027

Bushing

$

$

Not available

T

Simplicity 2705007

Hex. Cap Screw

$

$

Not available

U

Simplicity 2720001

Lock Washer

$

$

Not available

V

Simplicity 2717001

Full Hex Nut

$

$

Not available

W

Simplicity 157280

Foot Pedal Assembly (157043)*

$

$

Not available

X

Simplicity 157277

Bracket Assembly Assembly

$

$

Not available

Y

Simplicity 157287

Spacer

$

$

Not available

Z

Simplicity 2722009

Cotter Pin (72009)*

$

$

Not available

AA

Simplicity 157088

Park Brake Lock

$

$

Not available

AB

Simplicity 154134

Brake Band Bracket

$

$

Not available

AC

Simplicity 2705030

Hex. CapScrew, 1/4"-20 x 3/4"

$

$

Not available

AD

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

AE

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

AF

Simplicity 2164111

Brake Band & Lining Assembly (154132)*

$

$

Not available

AG

Simplicity 1679358SM

Brake Band (154060)*

$

$

Not available

AH

Simplicity 724501

Rivet #7 x 5/16"

$

$

Not available

AJ

Simplicity 2108386SM

Idler Pulley

$

$

Not available

AK

Simplicity 2154133

Brake Lining

$

$

Not available

AL

Simplicity 2157282

Brake Drum (154131)*

$

$

Not available

AM

Simplicity 2717002

Full Hex. Nut, 7/16"-14

$

$

Not available

AN

Simplicity 2158196SM

Special Washer

$5.49

$

Usually ships in 2-12 days

0

AP

Simplicity 2719001

Plain Washer

$

$

Not available

AQ

Simplicity 2722001

Cotter Pin

$

$

Not available

AR

Simplicity 157261

Brake Rod

$

$

Not available

AS

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AT

Simplicity 2720006

Lock Washer 7/16"

$

$

Not available

AU

Simplicity 2705031

Hex. Cap. Screw,

$

$

Not available

AW

Simplicity 157042

Foot Pedal Lever Assy.

$

$

Not available

AX

Simplicity 2713502

Screw, Set, Sock. Hd., Cup Pt. 5/16"-18 x 1/4"

$

$

Not available

AV

Simplicity 2717003

Full Hex. Nut. 3/8"-16

$

$

Not available

AY

Simplicity 2725002

Key

$

$

Not available

AZ

Simplicity 8151036

Spring Holder

$

$

Not available

BA

Simplicity 2705019

Hex Cap Screw, 5/16"-18 x 1-1/4"

$

$

Not available

BB

Simplicity 2717511

Full Lock Hex Nut, 5/16"-18

$

$

Not available

BC

Simplicity 2717001

Full Hex Nut, 5/16"-18

$

$

Not available

BD

Simplicity 157087

Parking Brake Collar

$

$

Not available

BE

Simplicity 1729276SM

Set Collar

$

$

Not available

BF

Simplicity 2713001

Screw, Set, Sq. Hd., 1/4"-20 x 3/8"

$

$

Not available

BG

Simplicity 2157041SM

Compression Spring

$15.99

$

Usually ships in 2-12 days

0

BH

Simplicity 154248

spring Retainer

$

$

Not available

BJ

Simplicity 154114

Clutch & Brake Lever Assy.

$

$

Not available
