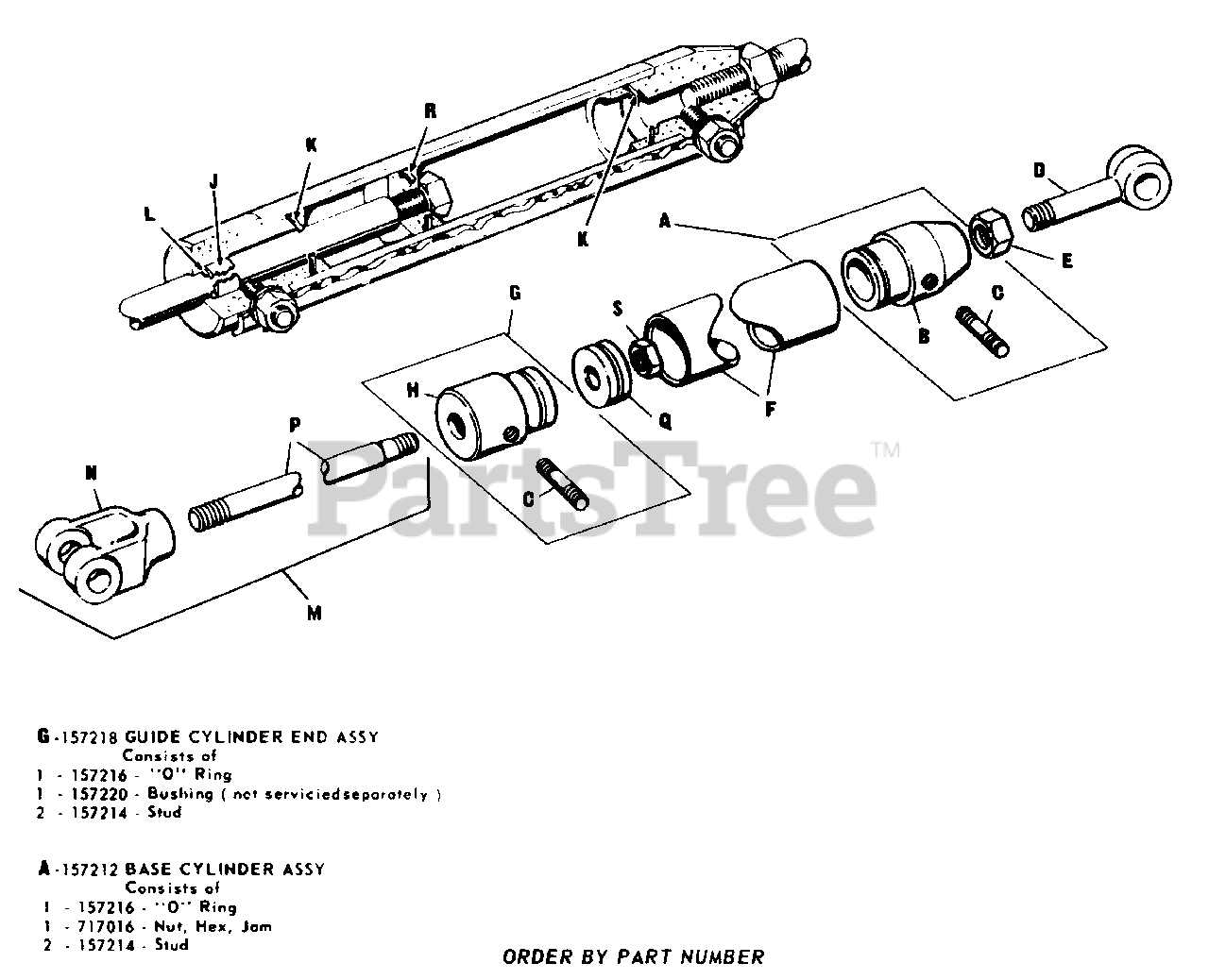

B-112 (2029930) - Allis-Chalmers Garden Tractor, 12hp POWER LIFT GROUP Parts Diagram

Garden Tractor, 12hp

POWER LIFT GROUP Parts Diagram

  • Title
A

Simplicity 157212

Cylinder Base Sub-Assembly

$

$

Not available

B

Simplicity 157213

Cylinder Base

$

$

Not available

C

Simplicity 157214

Stud Bolt 5/16"-18 x 7/8"

$

$

Not available

$

$

Not available

E

Simplicity 2717016

Jam Hex. Nut 1/2"-20

$

$

Not available

F

$

$

Not available

G

Simplicity 157218

Sub Assembly Guide

$

$

Not available

H

Simplicity 157219

Cylinder End Guide

$

$

Not available

J

$

$

Not available

K

$

$

Not available

L

$

$

Not available

M

Simplicity 157222

Yoke & Rod Sub-Assembly

$

$

Not available

$

$

Not available

P

Simplicity 157224

Piston Rod

$

$

Not available

$

$

Not available

R

$

$

Not available

S

Simplicity 717009

Full Hex. Nut

$

$

Not available
