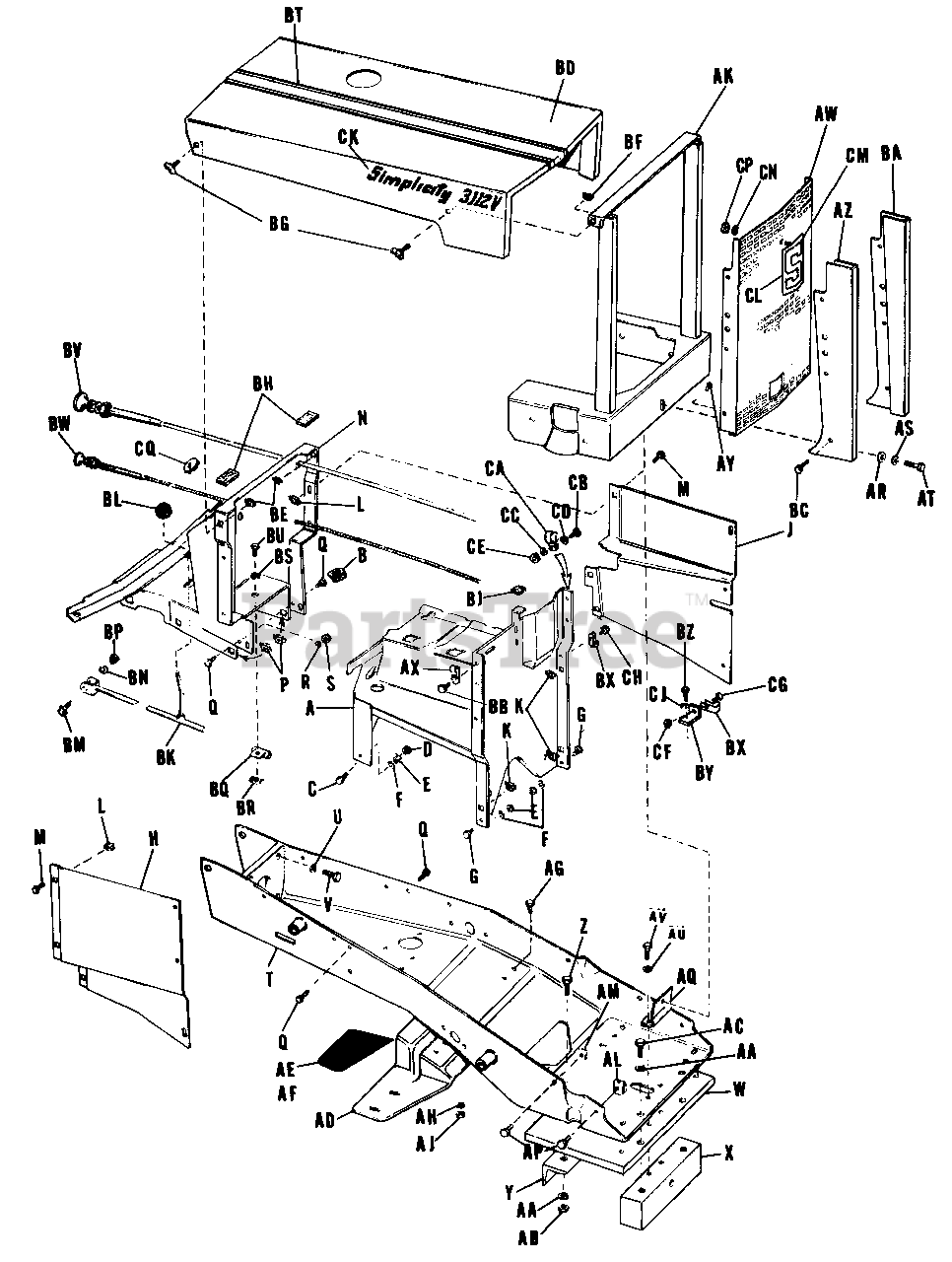

B-112 (2029930) - Allis-Chalmers Garden Tractor, 12hp FRAME, HOOD, GRILL, & INST. PANEL Parts Diagram

Garden Tractor, 12hp

FRAME, HOOD, GRILL, & INST. PANEL Parts Diagram

  • Title

A

Simplicity 164003

Support Assembly, Fuel Tank & Battery

$

$

Not available

B

Simplicity 2157077SM

Steering Bushing

$140.99

$

Usually ships in 2-12 days

0

C

Simplicity 2705019

Hex. Cap Screw, 5/16"-18 x 1-1/4"

$

$

Not available

D

Simplicity 2717511

Full Lock Hex. Nut, 5/16"-18

$

$

Not available

E

Simplicity 2717001

Full Hex. Nut, 5/16"-18

$

$

Not available

F

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

G

Simplicity 2705012

Hex. Cap Screw, 5/16"-18 x 5/8"

$

$

Not available

H

Simplicity 164014

R.H. Side Panel

$

$

Not available

J

Simplicity 164013

L.H. Side Panel

$

$

Not available

K

Simplicity 2718032

Nut Retainer

$

$

Not available

L

Simplicity 2718043

Nut Retainer

$

$

Not available

M

Simplicity 2715018

Hex. Cap Screw, 1/4"-20 x 5/8"

$

$

Not available

N

Simplicity 164232

Inst. Panel Assembly

$

$

Not available

P

Simplicity 2718032

Nut Retainer (Frame Cover)

$

$

Not available

Q

Simplicity 2715018

Hex. Cap Serew, 1/4"-20 x 5/8"

$

$

Not available

R

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

S

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

T

Simplicity 164010

Frame Assembly

$

$

Not available

U

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

V

Simplicity 705039

Hex. Cap Screw, 7/16"-14 x 1-1/2"

$6.99

$

In Stock, only 2 left!

0

W

Simplicity 157057

Base Weight

$

$

Not available

X

Simplicity 157060

Front Support, 1-3/4" x 2-1/2" x 8-5/8"

$

$

Not available

Y

Simplicity 157482

Angle Assembly (Frame Rear)

$

$

Not available

Z

Simplicity 2715080

Hex. Cap Screw, 7/16"-14 x 1-1/2"

$

$

Not available

AA

Simplicity 2720006

Lock Washer, 7/16"

$

$

Not available

AB

Simplicity 2717022

Full Hex. Nut. 7/16"-14

$

$

Not available

AC

Simplicity 2706003

Hex. Cap Screw, 7/16"-20 x 1-1/2"

$

$

Not available

AD

Simplicity 157065

Foot Rest

$

$

Not available

AE

Simplicity 157090

L.H. Foot Rest Pad

$

$

Not available

AF

Simplicity 157089

R.H. Foot Rest Pad

$

$

Not available

AG

Simplicity 2705004

Hex. Cap Screw 3/8"-16 x 3/4"

$

$

Not available

AH

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AJ

Simplicity 2717003

Full Hex. Nut 3/8"-16

$

$

Not available

AK

Simplicity 164008

Cover & Tube Assembly

$

$

Not available

AL

Simplicity 2718022

Retainer Nut, (Front)

$

$

Not available

AM

Simplicity 2718030

Retainer Nut, (Rear)

$

$

Not available

AP

Simplicity 2715082

Hex Screw, Whiz-Lock Flange, 5/16-18 x 3/4

$

$

Not available

AQ

Simplicity 157488

Bracket Assembly

$

$

Not available

AR

Simplicity 2719002

Plain Washer, 5/16"

$

$

Not available

AS

Simplicity 710001

Lock Washer, 5/16"

$

$

Not available

AT

Simplicity 2705019

Hex. Cap Screw 5/16"-18 x 1-1/4"

$

$

Not available

AU

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AV

Simplicity 703018

Hex. Cap Screw, 5/16"-18 x 1-1/2"

$31.99

$

Usually ships in 2-12 days

0

AW

Simplicity 164009

Grille

$

$

Not available

AX

Simplicity 122195

Clamp

$

$

Not available

AY

Simplicity 2714003

Self Tapping Screw, #810 x 1/2"

$

$

Not available

AZ

Simplicity 164028

R.H. Side Plate

$

$

Not available

BA

Simplicity 164027

L.H. Side Plate

$

$

Not available

BB

Simplicity 714005

Self Tapping Screw, #10-24 x 1/2"

$

$

Not available

BC

Simplicity 2714003

Self Tapping Screw #10 x 1/2"

$

$

Not available

BD

Simplicity 164011

Hood

$

$

Not available

BE

Simplicity 2718041

Nut Retainer (Rear)

$

$

Not available

BF

Simplicity 2718024

Nut Retainer (Front)

$

$

Not available

BG

Simplicity 2715037

Thumb Screw

$

$

Not available

BH

Simplicity 164120

Felt Pad

$

$

Not available

BJ

Simplicity 164121

Felt Pad

$

$

Not available

BK

Simplicity 164118

Shifter Rod Assembly

$

$

Not available

BL

Simplicity 1729255SM

Ball

$12.99

$

Usually ships in 2-12 days

0

BM

Simplicity 2705018

Hex Cap Screw, 1/4"-20 x 5/8"

$

$

Not available

BN

Simplicity 2720001

Lock Washer, 1/4"

$

$

Not available

BP

Simplicity 2717001

Full Hex Nut 5/16"-18

$

$

Not available

BQ

Simplicity 157020

Shift Rod Guide Assembly

$

$

Not available

BR

Simplicity 2718032

Retainer Nut

$

$

Not available

BS

Simplicity 2720003

Lock Washer 1/4"

$

$

Not available

BT

Simplicity 164129

Hood Strip

$

$

Not available

BU

Simplicity 2715018

Hex Cap Screw, 1/4"-20 x 5/8"

$

$

Not available

BV

Simplicity 2164042SM

Throttle Control

$106.99

$

Usually ships in 2-12 days

0

BW

Simplicity 164019

Choke Control

$

$

Not available

BX

Simplicity 2158475SM

Bowden Wire Clip

$5.49

$

In Stock, only 4 left!

0

BY

Simplicity 157315

Throttle Cable Bracket

$

$

Not available

BZ

Simplicity 2714021

Self Tapping Screw, 1/4"-20 x 5/8"

$

$

Not available

CA

Simplicity 122186

Clamp

$

$

Not available

CB

Simplicity 2705015

Hex. Cap Screw, 1/4"-20 x 5/8"

$

$

Not available

CC

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

CD

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

CE

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

CF

Simplicity 2717007

Full Hex. Nut, #10-32

$

$

Not available

CG

Simplicity 710004

Mach. Rd. Hd. Screw, #10-32 x 3/8"

$3.99

$

In Stock, only 1 left!

0

CH

Simplicity 714005

Self Tapping Rd. Hd. Screw, #10-24 x 1/2"

$

$

Not available

CJ

Simplicity 2720003

Lock Washer

$

$

Not available

CK

Simplicity 164276

Simplicity & Number 3112 Film

$

$

Not available

CL

Simplicity 164135

Plate, Assy.

$

$

Not available

CM

Simplicity 164137

Emblem "S"

$

$

Not available

CN

Simplicity 720007

Washer Lock

$

$

Not available

CP

Simplicity 2717023

Hex Nut #10-24

$

$

Not available

CQ

Simplicity 2164191

Plug Button

$

$

Not available
