B-112 (2029929) - Allis-Chalmers Garden Tractor, 12hp ENGINE AND DRIVE SHAFT Parts Diagram

Garden Tractor, 12hp

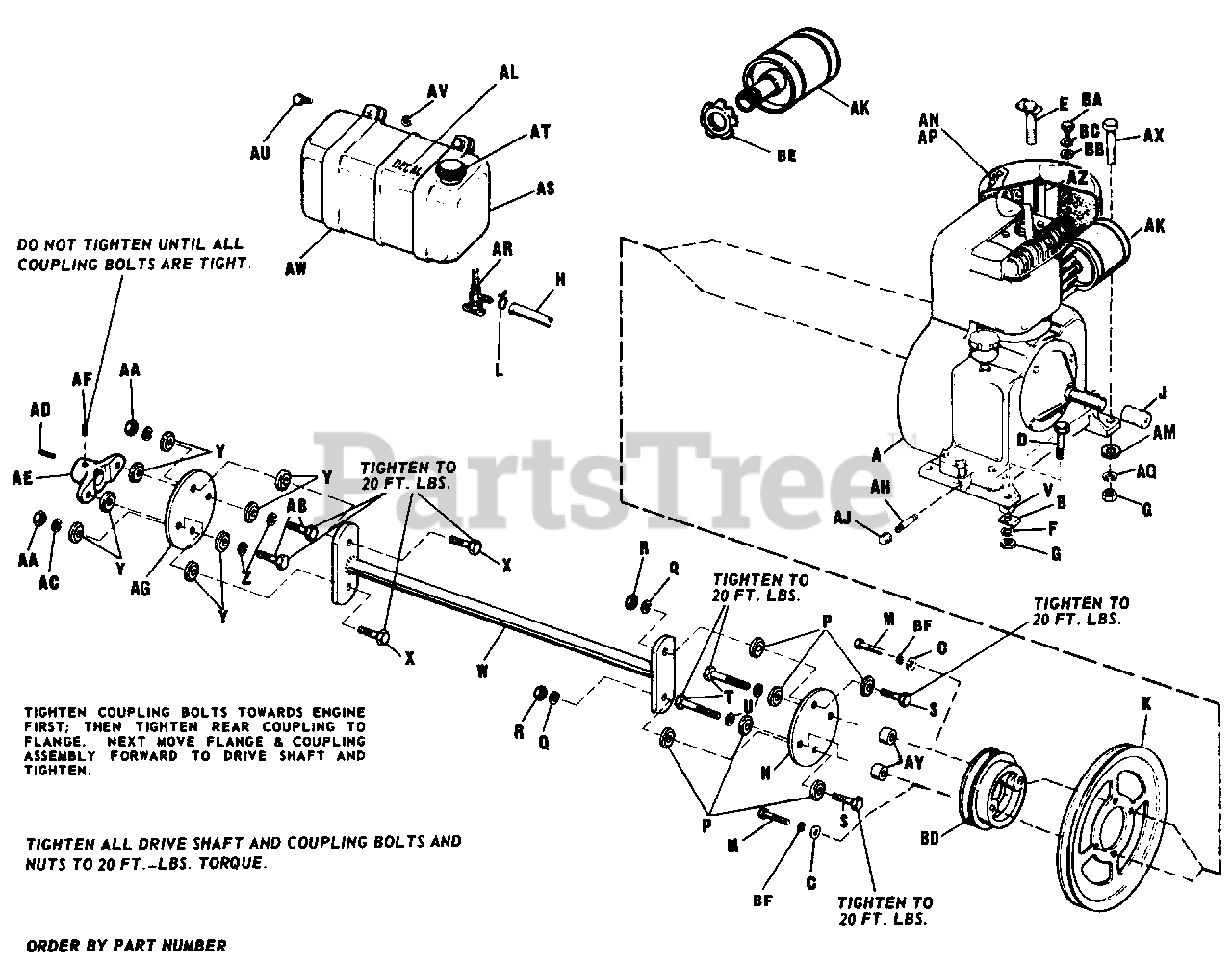

ENGINE AND DRIVE SHAFT Parts Diagram

  • Title

A

ENGINE, Briggs & Stratton

$

$

Not available

B

Simplicity 157144

Stop Axle

$

$

Not available

C

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

D

Simplicity 2705010

Hex. Cap Screw, 3/8"-16 x 1-3/4" lg.

$

$

Not available

E

Simplicity 157556

Screw Assembly, Engine, L.H. Rear

$

$

Not available

F

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

G

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

H

Simplicity 2157316

Fuel Hose (Flexible)

$

$

Not available

J

Simplicity 154327

Crankshaft Extension Guard

$

$

Not available

K

Simplicity 154327

Engine Pulley

$

$

Not available

L

Simplicity 2154372

Hose Clamp (FOR SERVICE ONLY)

$

$

Not available

M

Simplicity 2715068

Hex. Cap Screws 5/16"-18 X 2

$

$

Not available

N

Simplicity 2157422

Coupling

$

$

Not available

P

Simplicity 2157424SM

Special Washer

$7.49

$

In Stock, Qty 5

0

Q

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

R

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

S

Simplicity 2705016

Hex. (Cap Screw, 3/8"-16 x 1-1/4" lg.

$

$

Not available

T

Simplicity 2715043

Hex Capscrew, 3/8-16 x 2-1/2" lg.

$

$

Not available

U

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

V

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

W

Simplicity 2157016

Drive Shaft Assembly

$

$

Not available

X

Simplicity 2705016

Hex. Cap Screw, 3/8"-16 x 1-1/4" lg.

$

$

Not available

Y

Simplicity 2157424SM

Special Washer

$7.49

$

In Stock, Qty 5

0

Z

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AA

Simplicity 2717003

Full Hex. Nut, 3/8"-16

$

$

Not available

AB

Simplicity 2705016

Hex. Capscrew, 3/8"-16 x 1-1/4"

$

$

Not available

AC

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AD

Simplicity 2157427SM

Key

$5.49

$

In Stock, only 1 left!

0

AE

Simplicity 2154198ASM

Drive Shaft Flange

$

$

Not available

AF

Simplicity 2715049

Cup Point Socket Head Set Screw, 3/8"-24 x 5/8"

$

$

Not available

AG

Simplicity 2157422

Coupling

$

$

Not available

AH

Simplicity 157497

Pipe Nipple, 3/8 x 1" lg.

$

$

Not available

AJ

Simplicity 2726501

Pipe Cap, 3/8"

$

$

Not available

AK

Simplicity 2157634SM

Exhaust Muffler

$

$

Not available

AL

Simplicity 2157096

Decal, Fuel Tank

$

$

Not available

AM

Simplicity 2719001

Plain Washer, 3/8"

$

$

Not available

AN

Simplicity 157185

Film, Air Cleaner

$

$

Not available

AP

Simplicity 157131

Film, Air Cleaner

$

$

Not available

AQ

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

AR

Simplicity 2156176SM

Shut-Off Valve

$20.99

$

Usually ships in 2-12 days

0

AS

Simplicity 157006

Fuel Tank

$

$

Not available

AT

Simplicity 2156175SM

Fuel Tank Cap

$31.99

$

In Stock, only 3 left!

0

AU

Simplicity 2705053

Hex. Hd. Capscrew, 1/4"-20 x 1-3/4"

$

$

Not available

AV

Simplicity 2717005

Full Hex. Nut, 1/4"-20

$

$

Not available

AW

Simplicity 162060

Tank Strap

$

$

Not available

AX

Simplicity 2705006

Hex. Hd. Capscrew, 3/8"-16 x 2" lg.

$

$

Not available

AY

Simplicity 2157081SM

Spacer

$8.99

$

In Stock, only 4 left!

0

AZ

Simplicity 157126

Air Cleaner Spacer

$

$

Not available

BA

Simplicity 2715018

Hex. Hd. Capscrew, 1/4"-20 x 5/8"

$

$

Not available

BB

Simplicity 2719006

Plain Washer, 1/4"

$

$

Not available

BC

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

BD

Simplicity 164282

Pulley

$

$

Not available

BE

Simplicity 2154378SM

Lock Nut

$6.99

$

Usually ships in 2-12 days

0

BF

Simplicity 2720001

Lock Washer 5/16"

$

$

Not available
