B-112 (2029901) - Allis-Chalmers Garden Tractor, 12hp SEAT AND FENDERS Parts Diagram

Garden Tractor, 12hp

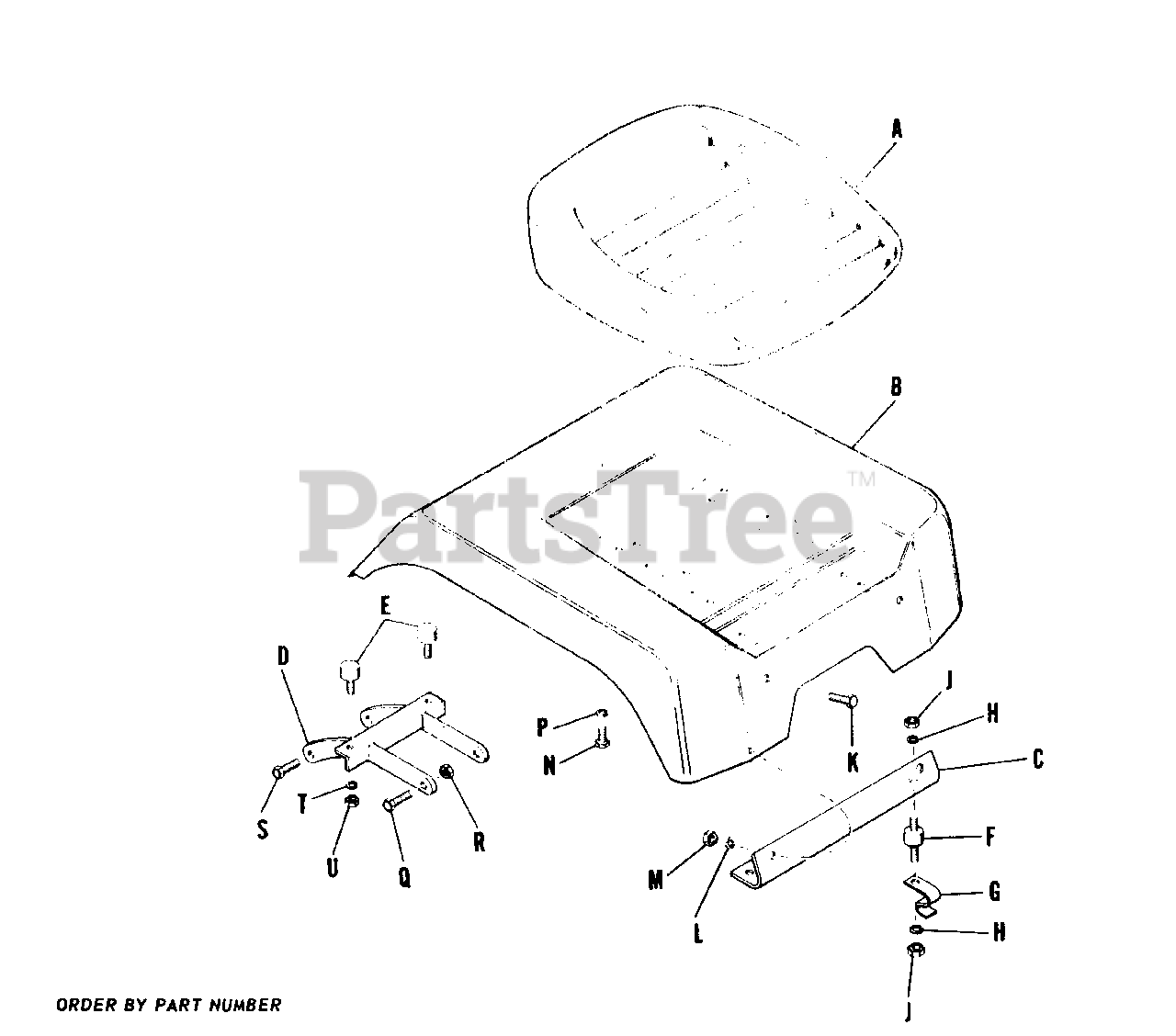

SEAT AND FENDERS Parts Diagram

  • Title

A

Simplicity 2156203

Seat Assembly

$

$

Not available

B

Simplicity 164041

Seat Deck Assemly

$

$

Not available

C

Simplicity 2164029SM

Seat Deck Bracket, Front

$

$

Not available

D

Simplicity 164050

Pivot Arm Assembly

$

$

Not available

E

Simplicity 164018

Sea Deck Connector, Rear

$

$

Not available

F

Simplicity 2159085SM

Cushioin Connector, Front

$10.99

$

In Stock, only 2 left!

0

G

Simplicity 2164145

Spring Clip

$

$

Not available

H

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

J

Simplicity 2717001

Hex Nut, Full, 5/16"-18

$

$

Not available

K

Simplicity 703012

Hex. Head Capscrew, 5/16"18 x 5/8" lg.

$4.99

$

Usually ships in 2-12 days

0

L

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

M

Simplicity 2717001

Hex. Nut. Full, 5/16"-18

$

$

Not available

N

Simplicity 2705012

Hex. Head capscrew, 5/16"18 x 5/8" lg.

$

$

Not available

P

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

Q

Simplicity 2705016

Hex. Head Capscrew, 5/16"-18 x 5/8" lg.

$

$

Not available

R

Simplicity 2717510

Hex. Locknut, Full, 3/8"-16

$

$

Not available

S

Simplicity 2705005

Hex. Head Capscrew, 3/8"-16 x 1"

$

$

Not available

T

Simplicity 2720001

Lockwasher, 5/16"

$

$

Not available

U

Simplicity 2717001

Hex, Nut. Full, 5/16"-18

$

$

Not available
