B-112 (2029901) - Allis-Chalmers Garden Tractor, 12hp CLUTCH AND BRAKE GROUP Parts Diagram

Garden Tractor, 12hp

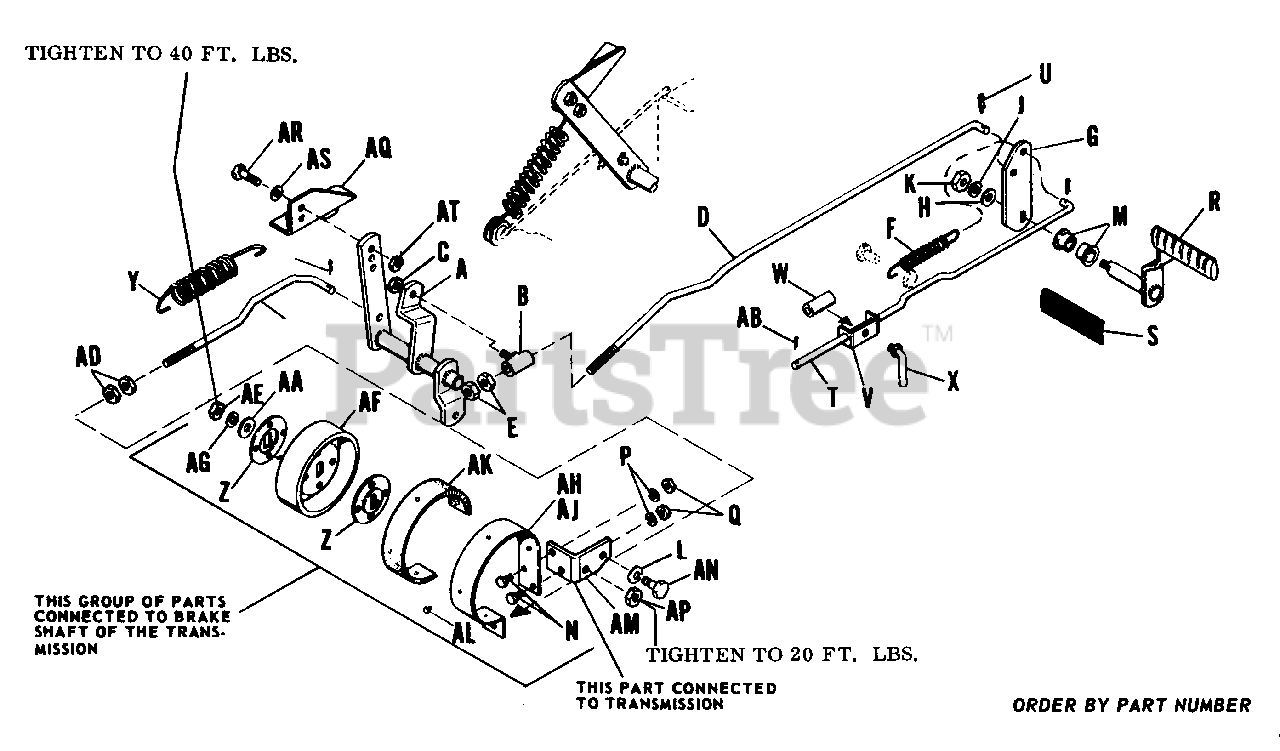

CLUTCH AND BRAKE GROUP Parts Diagram

  • Title

A

Simplicity 164089

Pivot Lever Assembly

$

$

Not available

B

Simplicity 2164094SM

Rod Guide Assembly

$45.99

$

Usually ships in 2-12 days

0

C

Simplicity 2717511

Hex Lock Nut, 5/16"-18

$

$

Not available

D

Simplicity 164096

Brake and Clutch Rod

$

$

Not available

E

Simplicity 2717001

Hex Nut, 5/16"-18

$

$

Not available

F

Simplicity 2159106SM

Tension Spring
(Superseded to 703144)

$5.99

$

In Stock, Qty 6

0

G

Simplicity 2157300SM

Foot Pedal Arm

$13.99

$

Usually ships in 2-12 days

0

H

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

J

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

K

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

L

Simplicity 2720002

Lock Washer, 3/8"

$

$

Not available

M

Simplicity 2108419

Bushing

$

$

Not available

N

Simplicity 2705030

Hex Capscrew, 1/4"-20 x 3/4" lg.

$

$

Not available

P

Simplicity 2720003

Lock Washer, 1/4"

$

$

Not available

Q

Simplicity 2717005

Hex Nut, 1/4"-20

$

$

Not available

R

Simplicity 157280

Foot Pedal Assembly

$

$

Not available

S

Simplicity 162098

Pedal Pad

$

$

Not available

T

Simplicity 164210

Parking Brake Rod

$

$

Not available

U

Simplicity 2722009

Cotter Pin, 1/8" x 3/4" lg.

$

$

Not available

V

Simplicity 164143

Parking Brake Bracket Assy.

$

$

Not available

W

Simplicity 157287

Spacer

$

$

Not available

X

Simplicity 164142

Parking Brake Lock

$

$

Not available

Y

Simplicity 2164213SM

Tension Spring

$32.99

$

Usually ships in 2-12 days

0

Z

Simplicity 2158196SM

Special Washer

$5.49

$

Usually ships in 2-12 days

0

AA

Simplicity 2719001

Washer, Plain, 3/8"

$

$

Not available

AB

Simplicity 2722001

Cotter Pin, 3/32" x 3/4" lg.

$

$

Not available

AC

Simplicity 164189

Brake Rod

$

$

Not available

AD

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

AE

Simplicity 2717022

Hex Nut, 7/16"-14

$

$

Not available

AF

Simplicity 2157282

Brake Drum

$

$

Not available

AG

Simplicity 2720006

Lock Washer, 7/16"-14

$

$

Not available

AH

Simplicity 2164111

Brake Band Assembly

$

$

Not available

AJ

Simplicity 1679358SM

Brake Band

$

$

Not available

AK

Simplicity 2154133

Brake Lining

$

$

Not available

AL

Simplicity 724501

Rivet

$

$

Not available

AM

Simplicity 164113

Brake Band Bracket

$

$

Not available

AN

Simplicity 2705005

Hex Capscrew, 3/8"-16 x 1" lg.

$

$

Not available

AP

Simplicity 2717003

Hex Nut, 3/8"-16

$

$

Not available

AQ

Simplicity 164212

Spring Bracket

$

$

Not available

AR

Simplicity 2705007

Hex Capscrew, 5/16"-18 x 1" lg.

$

$

Not available

AS

Simplicity 2720001

Lock Washer, 5/16"

$

$

Not available

AT

Simplicity 2717001

Hex Nut 5/16"-18

$

$

Not available
