AYP 9120 B59 - Electrolux/AYP Lawn Tractor (1995) MOWER DECK Parts Diagram

Lawn Tractor

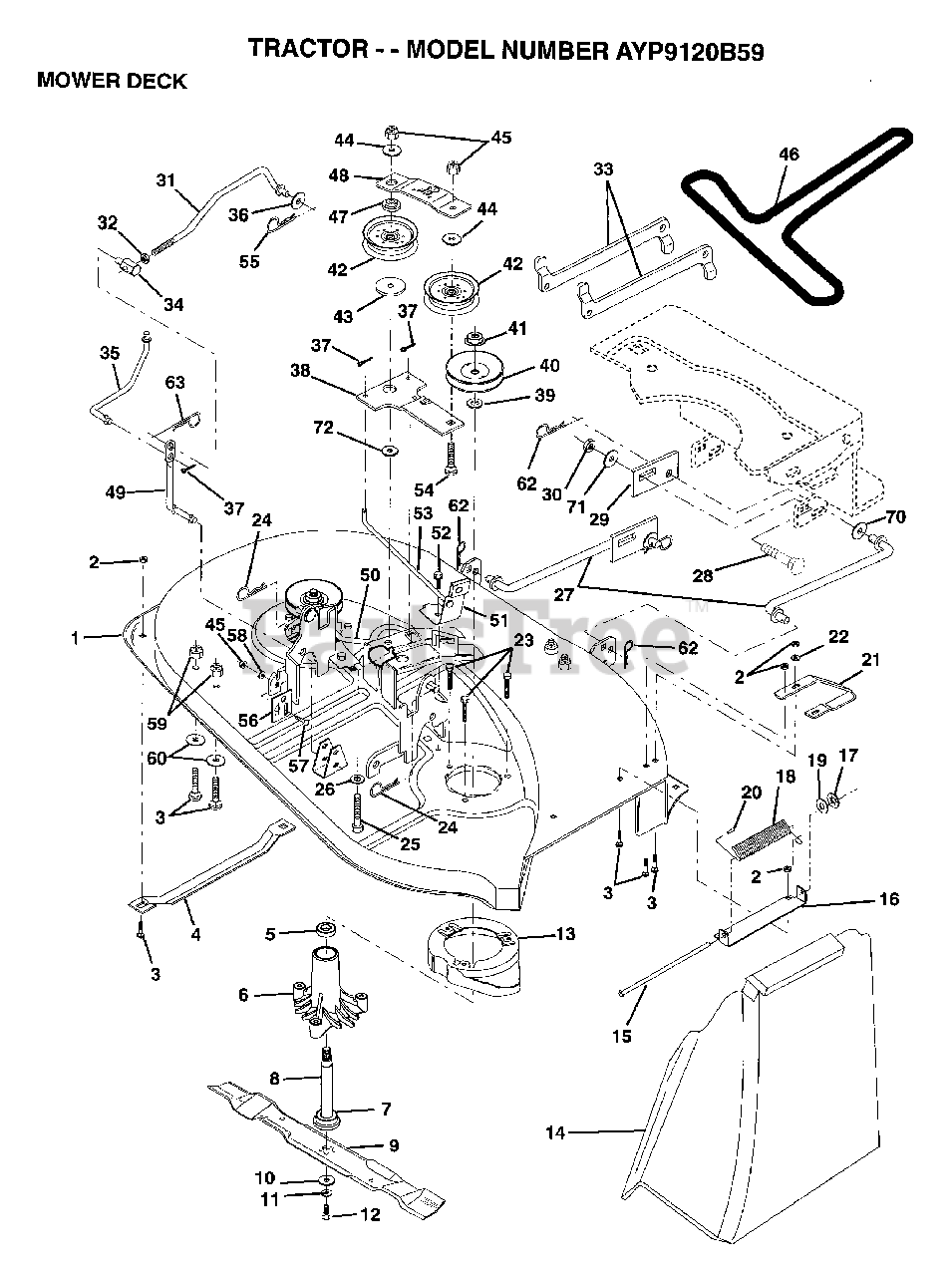

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 142830

MOWER.WELD.LR.38
(Superseded to 532188249)

$303.99

$

Usually ships in 3-10 days

0

2

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 11

0

6

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 134148

"BLADE.38""V.MULCH"
(Superseded to 532134148)

$26.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 140296

WASHER.HARD.BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

12

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 136929

SUB= 140329

$

$

Not available

14

Electrolux/AYP 106736X

DEFLECTOR-SHLD T
(Superseded to 532106736)

$

$

Not available

15

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 137607

BRKT DEFLECTOR
(Superseded to 532137607)

$6.49

$

In Stock, only 2 left!

0

17

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

21

Electrolux/AYP 128772

RUNNER RH
(Superseded to 532128772)

$

$

Not available

22

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 124670X

RERAINER, SPRING

$

$

Not available

25

Electrolux/AYP 74600636

BOLT
(Superseded to 874600636)

$

$

Not available

26

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 139756

"LINK LIFT 38"""
(Superseded to 532139756)

$

$

Not available

28

Murray 72140608

SUB= 72110608

$

$

Not available

29

Electrolux/AYP 139757

PLATE SLIDE LINK
(Superseded to 532139757)

$

$

Not available

30

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 140915

ROD.CLUTCH.PRIM
(Superseded to 532140915)

$14.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

33

Electrolux/AYP 132559

SUSP ARM REAR
(Superseded to 532132559)

$

$

Not available

34

Electrolux/AYP 133604

TRUNNION
(Superseded to 532133604)

$17.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 132554

CLUTCH ROD SEC
(Superseded to 532132554)

$

$

Not available

36

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 133840

IDLER ARM ASSY
(Superseded to 532133840)

$

$

Not available

39

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, Qty 8

0

40

Electrolux/AYP 129206

SUB= 153532
(Superseded to 532129206)

$

$

Not available

41

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

42

Electrolux/AYP 121316X

PULLEY IDLER
(Superseded to 532121316)

$51.99

$

In Stock, only 4 left!

0

43

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 1 left!

0

44

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 126520X

V BELT
(Superseded to 532419271)

$60.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 133502

RETAINER SPACER
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

48

Electrolux/AYP 133503

IDLER ARM STIFF
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 131289

BRAKE ROD LH
(Superseded to 532131289)

$

$

Not available

51

Electrolux/AYP 130840

BRAKE ASM
(Superseded to 532130840)

$12.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 131288

BRAKE ROD RH
(Superseded to 532131288)

$8.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

55

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 136782

PLATE ADJ LINK LH
(Superseded to 532136782)

$2.99

$

Usually ships in 3-10 days

0

57

Murray 72140608

SUB= 72110608

$

$

Not available

58

Electrolux/AYP 19131212

WASHER T
(Superseded to 819131212)

$

$

Not available

59

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 19111112

WASHER.34X.68X16
(Superseded to 819111212)

$3.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

70

Electrolux/AYP 19162016

WASHER 1/2X1 1/4
(Superseded to 819162016)

$

$

Not available

71

Electrolux/AYP 19131610

WASHER PM
(Superseded to 819131610)

$6.49

$

In Stock, Qty 7

0

72

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 142862

"DECK.SERVICE.38"""
(Superseded to 144975)

$

$

Not available

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 5

0
