AYP 8228 A69 - Electrolux/AYP Lawn Tractor (1996) KOHLER ENGINE Parts Diagram

Lawn Tractor

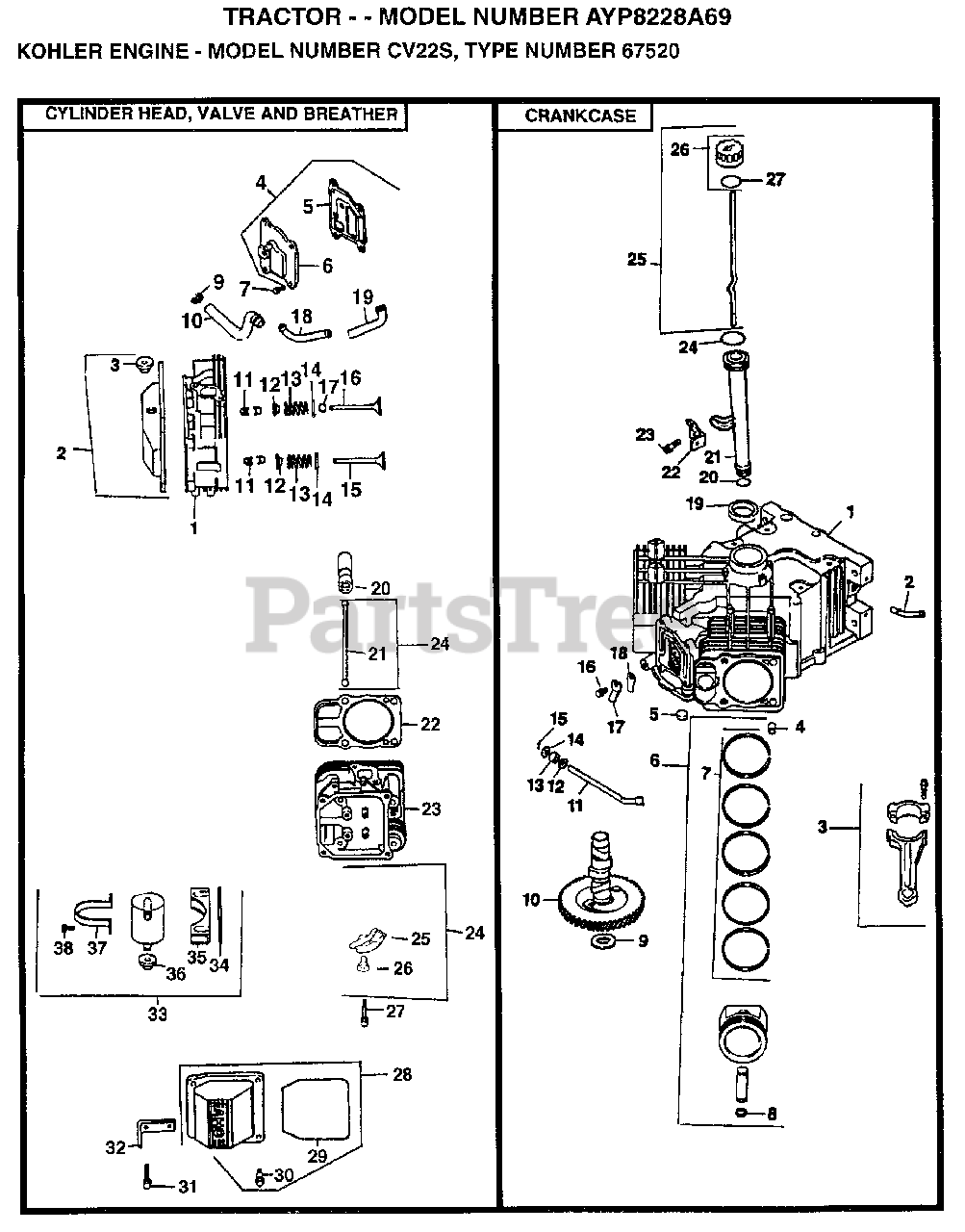

KOHLER ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 24-318-11

HEAD ASSEMBLY

$

$

Not available

2

Electrolux/AYP 24-755-76

KIT, VALVE COVER, BREATHER

$

$

Not available

3

Electrolux/AYP 25-313-02

GROMMET, RUBBER

$

$

Not available

4

Electrolux/AYP 24-033-03

KIT, BREATHER COVER WITH GASKET

$

$

Not available

5

Electrolux/AYP 24-041-23

GASKET, BREATHER

$

$

Not available

6

Electrolux/AYP 24-096-15

COVER, BREATHER

$

$

Not available

7

Electrolux/AYP M-0645020

SCREW HEX FLANGE

$

$

Not available

9

Electrolux/AYP X-426-9

CLAMP, HOSE

$

$

Not available

10

Electrolux/AYP 24-326-14

HOSE, BREATHER

$

$

Not available

11

Electrolux/AYP 12-755-03

KIT, RETAINER

$

$

Not available

12

Electrolux/AYP 12-173-01

CAP, VALVE SPRING

$

$

Not available

13

Electrolux/AYP 24-089-02

SPRING, VALVE

$

$

Not available

14

Electrolux/AYP 235011

RETAINER, SPRING

$

$

Not available

15

Electrolux/AYP 24-016-01

VALVE, EXHAUST, STANDARD SIZE

$

$

Not available

Electrolux/AYP 24-016-02

VALVE, EXHAUST, .25 OVERSIZE

$

$

Not available

16

Electrolux/AYP 24-017-01

VALVE, INTAKE, STANDARD SIZE

$

$

Not available

Electrolux/AYP 24-017-02

VALVE, INTAKE, .25 OVERSIZE

$

$

Not available

17

Electrolux/AYP 24-032-05

SEAL, VALVE STEM

$

$

Not available

18

Electrolux/AYP 24-294-06

FITTING

$

$

Not available

19

Electrolux/AYP 24-326-13

HOSE,BREATHER

$

$

Not available

20

Electrolux/AYP 12-351-01

LIFTER, VALVE

$

$

Not available

21

Electrolux/AYP 24-411-05

ROD, PUSH

$

$

Not available

22

Electrolux/AYP 24-041-08

GASKET, CYLINDER HEAD

$

$

Not available

23

Electrolux/AYP 24-318-12

HEAD ASSEMBLY

$

$

Not available

24

Electrolux/AYP 24-755-66

KIT, VALVE TRAIN

$

$

Not available

25

Electrolux/AYP 25-186-01

ARM, ROCKER

$

$

Not available

26

Electrolux/AYP 24-599-01

PIVOT, ROCKER ARM

$

$

Not available

27

Electrolux/AYP M-0640034

SCREW, ROCKER ARM

$

$

Not available

28

Electrolux/AYP 24-755-74

KIT, VALVE COVER, PLAIN

$

$

Not available

29

Electrolux/AYP 24-153-12

O-RING

$

$

Not available

30

Electrolux/AYP 24-086-32

SCREW

$

$

Not available

31

Electrolux/AYP 12-086-16

SCREW

$

$

Not available

32

Electrolux/AYP 24-455-01

STRAP, LIFTING

$

$

Not available

33

Electrolux/AYP 24-755-57

KIT, BREATHER SEPARATOR

$

$

Not available

34

Electrolux/AYP 24-112-12

SPACER

$

$

Not available

35

Electrolux/AYP 24-126-44

BRACKET, BREATHER SEPARATOR

$

$

Not available

36

Electrolux/AYP 25-313-02

GROMMET, RUBBER

$

$

Not available

37

Electrolux/AYP 24-445-02

STRAP, BREATHER SEPARATOR

$

$

Not available

38

Electrolux/AYP M-0545016

SCREW

$

$

Not available

1

Electrolux/AYP 24-522-05

CYLINDER BLOCK

$

$

Not available

2

Electrolux/AYP 24-294-03

FITTING

$

$

Not available

3

Electrolux/AYP 24-067-05

CONNECTING ROD

$

$

Not available

Electrolux/AYP 24-067-06

CONNECTING ROD

$

$

Not available

4

Electrolux/AYP 12-380-03

PIN, DOWEL LOCATING

$

$

Not available

5

Electrolux/AYP 52-139-09

PLUG, CUP

$

$

Not available

6

Electrolux/AYP 24-874-01

PISTON WITH RING SET

$

$

Not available

Electrolux/AYP 24-874-02

PISTON WITH RING SET

$

$

Not available

Electrolux/AYP 24-874-03

PISTON WITH RING SET

$

$

Not available

7

Electrolux/AYP 24-108-01

RING SET

$

$

Not available

Electrolux/AYP 24-108-02

RING SET

$

$

Not available

Electrolux/AYP 24-108-03

RING SET

$

$

Not available

8

Electrolux/AYP 24-018-01

RETAINER, PISTON PIN

$

$

Not available

9

Electrolux/AYP 12-422-10

SHIM, CAMSHAFT, YELLOW

$

$

Not available

Electrolux/AYP 12-422-09

SHIM, CAMSHAFT,RED

$

$

Not available

Electrolux/AYP 12-422-13

SHIM, CAMSHAFT, BLACK

$

$

Not available

Electrolux/AYP 12-422-07

SHIM, CAMSHAFT, WHITE

$

$

Not available

Electrolux/AYP 12-422-08

SHIM, CAMSHAFT, BLUE

$

$

Not available

Electrolux/AYP 12-422-11

SHIM, CAMSHAFT, GREEN

$

$

Not available

Electrolux/AYP 12-422-12

SHIM, CAMSHAFT, GREY

$

$

Not available

10

Electrolux/AYP 24-010-03

CAMSHAFT

$

$

Not available

11

Electrolux/AYP 24-144-01

SHAFT, GOVERNOR CROSS

$

$

Not available

12

Electrolux/AYP M0631005

WASHER, PLAIN

$

$

Not available

13

Electrolux/AYP 12-032-01

SEAL ,GOVERNOR CROSS SHAFT

$

$

Not available

14

Electrolux/AYP X-25-102

WASHER

$

$

Not available

15

Electrolux/AYP 12-380-04

PIN

$

$

Not available

16

Electrolux/AYP M-0545010

SCREW, MOUNTING

$

$

Not available

17

Electrolux/AYP 24-018-04

RETAINER, REED

$

$

Not available

18

Electrolux/AYP 24-402-05

REED, BREATHER

$

$

Not available

19

Electrolux/AYP 24-032-01

SEAL, OIL, FRONT

$

$

Not available

20

Electrolux/AYP 12-153-01

O-RING, LOWER OIL FILL TUBE

$

$

Not available

21

Electrolux/AYP 12-123-04

TUBE, OIL FILL

$

$

Not available

22

Electrolux/AYP 24-126-19

BRACKET, OIL FILL TUBE

$

$

Not available

23

Electrolux/AYP M-0545016

SCREW

$

$

Not available

24

Electrolux/AYP 12-153-02

O-RING, UPPER OIL FILL TUBE

$

$

Not available

25

Electrolux/AYP 24-038-04

DOPSTICK ASSEMBLY

$

$

Not available

26

Electrolux/AYP 25-755-13

KIT, OIL FILL CAP

$

$

Not available

27

Electrolux/AYP 12-153-03

O-RING, DIPSTICK

$

$

Not available
