AYP 8228 A59 - Electrolux/AYP Lawn Tractor (1995) CHASSIS AND ENCLOSURES Parts Diagram

Lawn Tractor

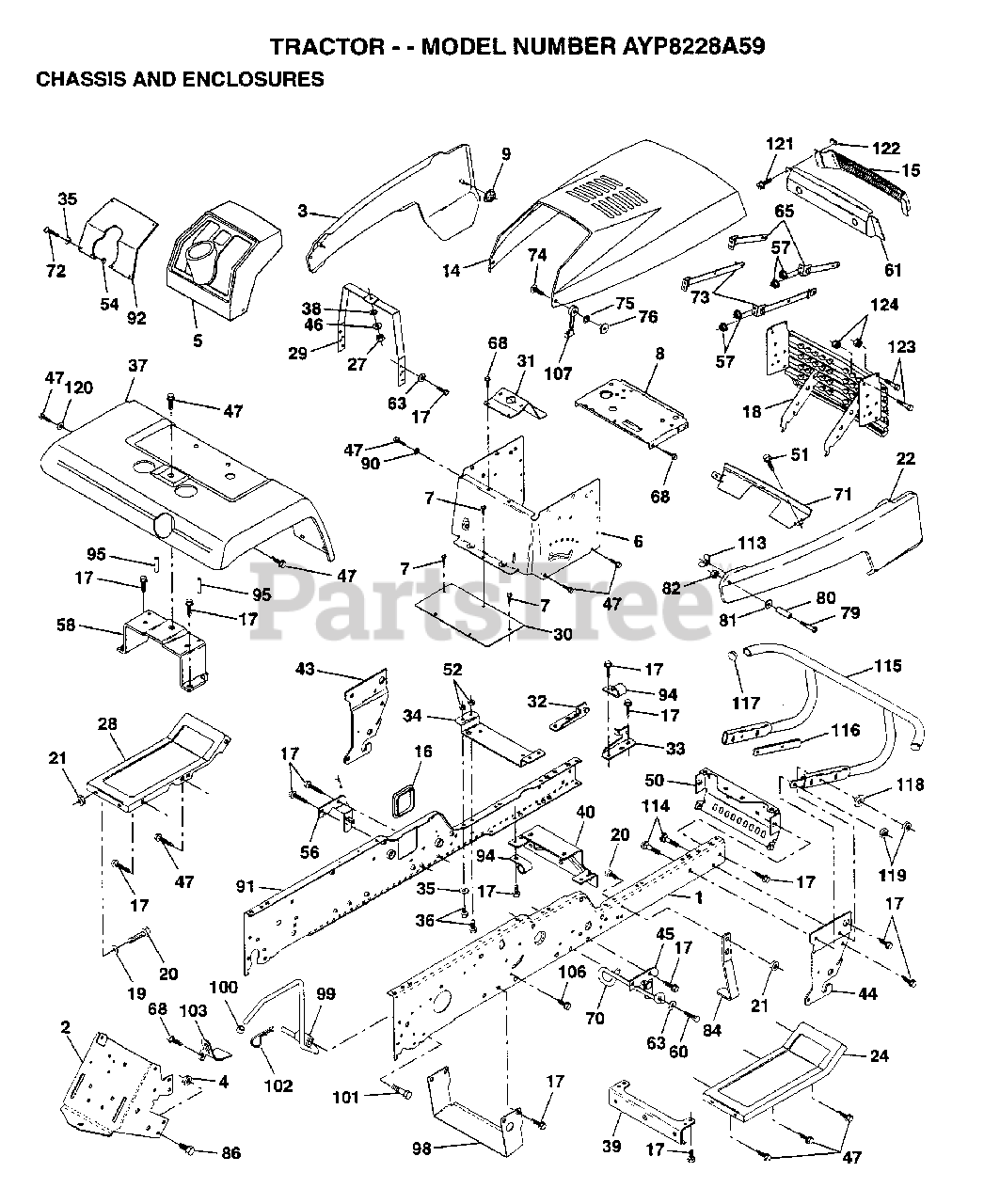

CHASSIS AND ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 144737

SUB= 150383
(Superseded to 532144737)

$

$

Not available

2

Electrolux/AYP 140506

DRAWBAR GT
(Superseded to 175282)

$

$

Not available

3

Electrolux/AYP 140678X418

PANEL SD LH YT/GT

$65.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 73800700

NUT.7/16
(Superseded to 873800700)

$4.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 140398

DASHBOARD BLACK
(Superseded to 584445901)

$21.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 145053

DASH.1PC.LOWER
(Superseded to 532145053)

$84.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 145166

SUPPORT.DASH.BTRY
(Superseded to 532145166)

$

$

Not available

9

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

14

Electrolux/AYP 132635X505

SUB= 150301X505

$

$

Not available

15

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

17

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 140037

SUB= 140037X431

$

$

Not available

19

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 140679X418

PANEL SD RH YT/GT

$

$

Not available

24

Electrolux/AYP 145243X505

FOOTREST.RH.LT/GT
(Superseded to 532181193)

$

$

Not available

27

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 145244X505

FOOTREST.LH.LT/GT
(Superseded to 532181164)

$43.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 145205

DASH.SUPT.YP/HUSQ
(Superseded to 532145205)

$

$

Not available

30

Electrolux/AYP 145052

SADDLE.HYDRO.95
(Superseded to 532145052)

$

$

Not available

31

Electrolux/AYP 145183

BRAKET.SUPT.STEER
(Superseded to 532145183)

$

$

Not available

32

Electrolux/AYP 141315

BRACKET ASM FRAME
(Superseded to 532141315)

$7.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 141314

BRACKET ASM FRAME
(Superseded to 532141314)

$

$

Not available

34

Electrolux/AYP 142131

BRACKET.ENG.SUPT.
(Superseded to 532142131)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

36

Electrolux/AYP 74780512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

37

Electrolux/AYP 140002X505

FENDER.PNT.
(Superseded to 167270X505)

$91.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 136961

BRACKET.AXLE.FRT.
(Superseded to 532175278)

$

$

Not available

40

Electrolux/AYP 142132

SUB= 156111
(Superseded to 532156111)

$9.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 136939

BRACKET.SUS.FT.LH
(Superseded to 532136939)

$

$

Not available

44

Electrolux/AYP 136940

BRACKET.SUS.FT.RH
(Superseded to 532136940)

$

$

Not available

45

Electrolux/AYP 138460

SUB= 155887
(Superseded to 532155887)

$

$

Not available

46

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 136575

BRACKET.CHASSIS.
(Superseded to 532136575)

$

$

Not available

51

Electrolux/AYP 17580408

SCREW CRT
(Superseded to 817580408)

$

$

Not available

52

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

$2.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 138461

SUB= 155886
(Superseded to 532138461)

$

$

Not available

57

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

58

Electrolux/AYP 137113

BRKT.ASM.FENDER
(Superseded to 532183569)

$14.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

61

Electrolux/AYP 124392X417

SUB= 147717
(Superseded to 583678801)

$

$

Not available

63

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

65

$

$

Not available

68

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 137159

GUIDE.BELT.MID.SP
(Superseded to 532177679)

$9.99

$

Usually ships in 3-10 days

0

71

$

$

Not available

72

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

73

$

$

Not available

75

Electrolux/AYP 74191008

SCREW
(Superseded to 871191008)

$6.49

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 10071000

LOCKWASHER
(Superseded to 810071000)

$4.99

$

In Stock, Qty 11

0

76

Electrolux/AYP 2029J

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

79

Electrolux/AYP 74981020

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 9

0

80

Electrolux/AYP 7206J

SPACER LT
(Superseded to 532007206)

$7.49

$

In Stock, Qty 6

0

81

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 142992

STOP.OVER.CENTER
(Superseded to 532142992)

$6.49

$

Usually ships in 3-10 days

0

86

Electrolux/AYP 74760716

BOLT
(Superseded to 874780716)

$4.99

$

Usually ships in 3-10 days

0

90

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 144735

SUB= 151630
(Superseded to 532144735)

$

$

Not available

92

Electrolux/AYP 140299X012

PLATE SLKSCR YP

$7.49

$

Usually ships in 3-10 days

0

94

Electrolux/AYP 100207K

CLIP GTV
(Superseded to 532100207)

$4.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 140503

BRACKET SKID CHAS
(Superseded to 175847)

$

$

Not available

99

Electrolux/AYP 140871

ROD BYPASS
(Superseded to 532140871)

$

$

Not available

$

$

Not available

101

Electrolux/AYP 17490628

SCREW LT
(Superseded to 817490628)

$3.49

$

Usually ships in 3-10 days

0

102

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

103

Electrolux/AYP 142273

LOCK BYPASS BRKT
(Superseded to 532142273)

$

$

Not available

106

Electrolux/AYP 138776

SUB= 157722
(Superseded to 584953901)

$4.99

$

In Stock, Qty 16

0

107

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 13

0

113

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

114

Electrolux/AYP 72140610

BOLT.3/8-14X1.25
(Superseded to 595901101)

$4.99

$

Usually ships in 3-10 days

0

115

Electrolux/AYP 141460

BUMPER.ASM.W/PY
(Superseded to 170311)

$

$

Not available

116

Electrolux/AYP 141461

BRACKET.EXT.BUMP.
(Superseded to 170310)

$2.99

$

Usually ships in 3-10 days

0

117

Electrolux/AYP 143679

PLUG.PLASTIC
(Superseded to 532143679)

$2.99

$

Usually ships in 3-10 days

0

118

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

119

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 19131616

WASHER HYT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

$2.49

$

Usually ships in 3-10 days

0

122

Electrolux/AYP 104755X

"""J"" FASTENER LT"

$2.99

$

Usually ships in 3-10 days

0

123

$

$

Not available

124

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available
