AYP 8228 A59 - Electrolux/AYP Lawn Tractor (1995) CARBURETOR Parts Diagram

Lawn Tractor

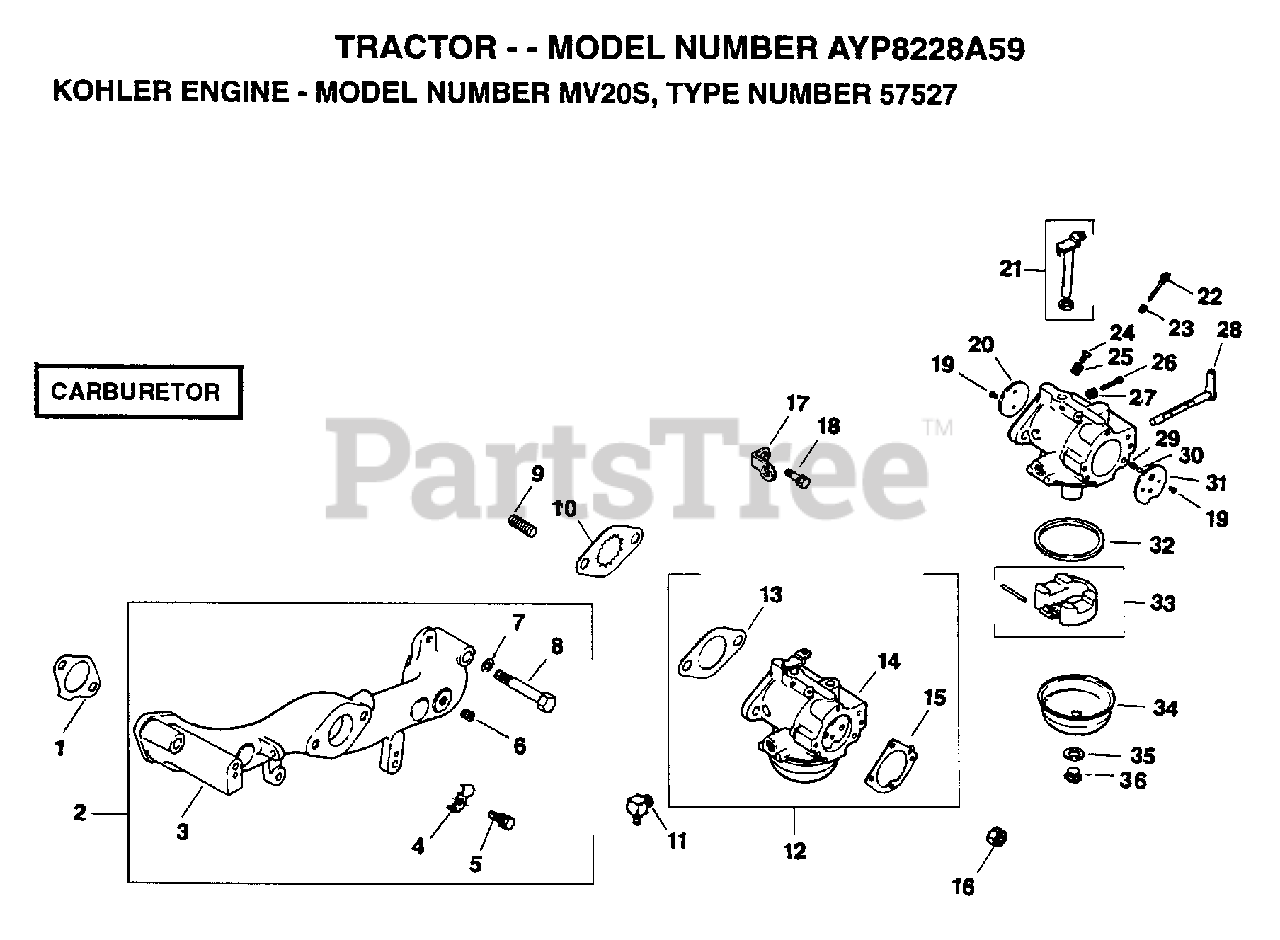

CARBURETOR Parts Diagram

  • Title

1

Electrolux/AYP 52-041-09

GASKET

$

$

Not available

2

Electrolux/AYP 52-755-91

KIT

$

$

Not available

3

Electrolux/AYP 52-164-15

MANIFOLD

$

$

Not available

4

Kohler 235778

CLAMP
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

5

Kohler X-67-97

SCREW
(Superseded to 25 086 109-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler X-75-23

PLUG
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

7

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

8

Kohler X-6-29

SCREW, 5/16-18X1-1/4 (4)
(Superseded to X-6-29-S)

$3.49

$

In Stock, only 4 left!

0

9

Electrolux/AYP 41-072-19

STUD

$

$

Not available

10

Electrolux/AYP 52-063-40

BAFFLE

$

$

Not available

11

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

12

Electrolux/AYP 52-853-29

KIT, CARB W/GASKET

$

$

Not available

13

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

14

Electrolux/AYP 52-053-55

CARBURETOR ASSY

$

$

Not available

15

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

16

Kohler X-77-2

NUT
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

17

Kohler 232867

STRAP
(Superseded to 28 445 01-S)

$

$

Not available

18

Kohler X-67-62

SCREW
(Superseded to X-67-62-S)

$3.49

$

Usually ships in 2-5 days

0

19

Electrolux/AYP 25-086-27

SCREW

$

$

Not available

20

Electrolux/AYP 25-146-02

PLATE

$

$

Not available

21

Electrolux/AYP 52-144-16

SHAFT, THROTTLE

$

$

Not available

22

Electrolux/AYP 25-368-01

NEEDLE

$

$

Not available

23

Electrolux/AYP 25-089-02

SPRING

$

$

Not available

24

Electrolux/AYP 25-086-26

SCREW

$

$

Not available

25

Electrolux/AYP 25-089-04

SPRING

$

$

Not available

26

Electrolux/AYP 25-368-03

NEEDLE

$

$

Not available

27

Electrolux/AYP 25-089-02

SPRING

$

$

Not available

28

Electrolux/AYP 52-090-13

LEVER

$

$

Not available

29

Electrolux/AYP 25-089-03

SPRING

$

$

Not available

30

Electrolux/AYP 25-194-01

BALL

$

$

Not available

31

Electrolux/AYP 25-146-03

PLATE, CHOKE

$

$

Not available

32

Electrolux/AYP 25-041-04

GASKET

$

$

Not available

33

Electrolux/AYP 25-757-09

KIT

$

$

Not available

34

Electrolux/AYP 25-104-01

BOWL, FUEL

$

$

Not available

35

Electrolux/AYP 25-041-03

GASKET

$

$

Not available

36

Electrolux/AYP 25-100-05

SCREW, BOWL RETAINER

$

$

Not available

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0
