AYP 8228 A49 - Electrolux/AYP Lawn Tractor (1994) Ignition Parts Diagram

Lawn Tractor

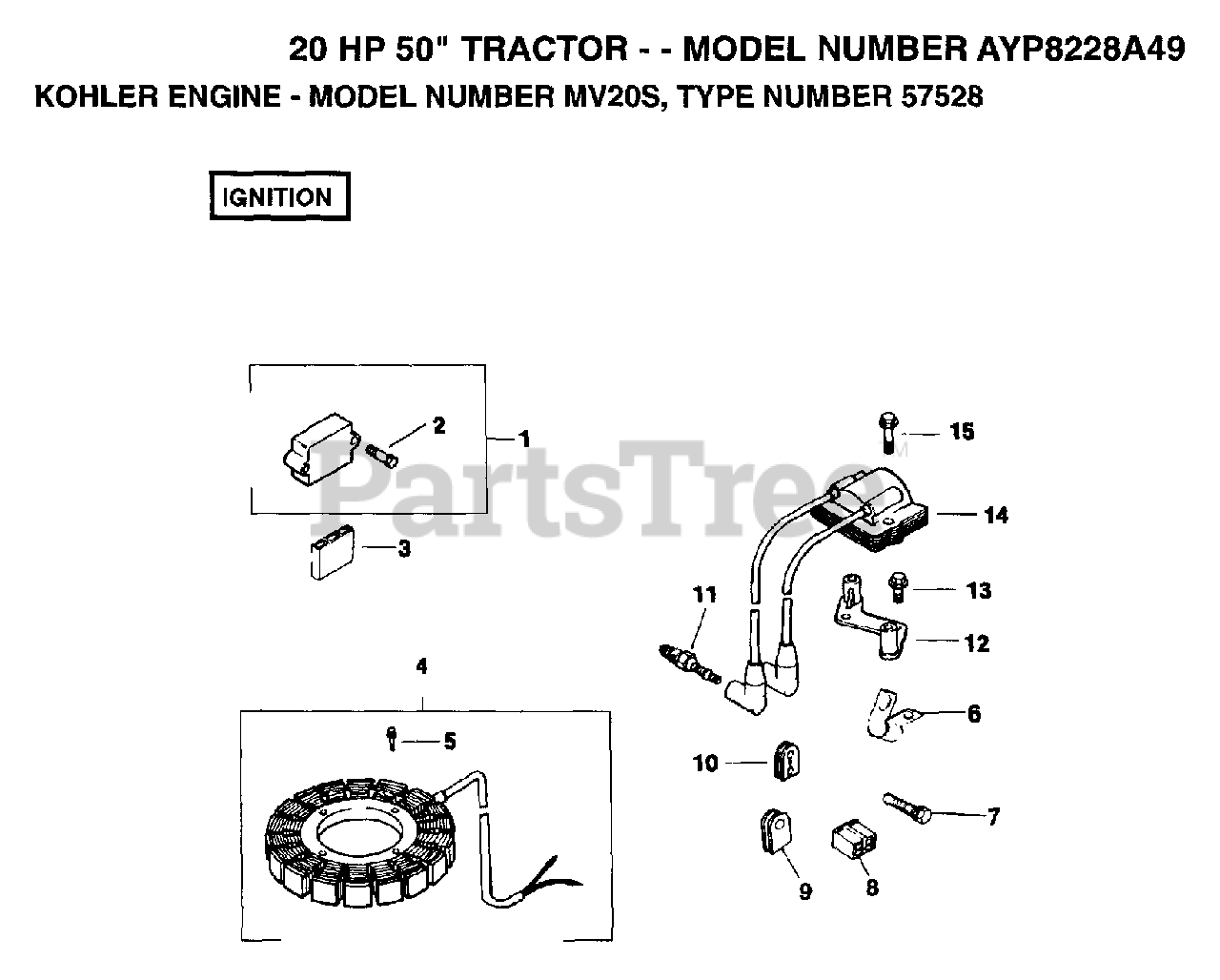

Ignition Parts Diagram

  • Title

1

Electrolux/AYP 25-755-03

KIT

$

$

Not available

2

Kohler X-132-5

SCREW
(Superseded to X-132-5-S)

$3.49

$

In Stock, only 1 left!

0

3

Kohler 236602

CONNECTOR
(Superseded to 236602-S)

$24.99

$

In Stock, only 1 left!

0

4

Kohler 237878

KIT
(Superseded to 237878-S)

$149.99

$

In Stock, Qty 15

0

5

Kohler X-67-51

SCREW
(Superseded to X-67-51-S)

$3.49

$

Usually ships in 2-5 days

0

6

Kohler 210281

CLIP
(Superseded to 210281-S)

$7.49

$

Usually ships in 2-5 days

0

7

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

8

Electrolux/AYP 41-155-02

CONNECTOR

$

$

Not available

9

Kohler 220297

GROMMET
(Superseded to 220297-S)

$6.49

$

Usually ships in 2-5 days

0

10

Electrolux/AYP 52-313-02

GROMMET

$

$

Not available

11

Electrolux/AYP 52-132-02

SPARK PLUG

$

$

Not available

12

Electrolux/AYP 52-126-08

BRKT

$

$

Not available

13

Electrolux/AYP 25-086-15

SCREW, 1/4-20 X 1

$

$

Not available

14

Electrolux/AYP 52-584-02

MODULE

$

$

Not available

15

Electrolux/AYP 25-086-16

SCREW

$

$

Not available

Electrolux/AYP 47-518-33

LEAD, VIOLET RECT. REG.

$

$

Not available
