AYP 8228 A49 - Electrolux/AYP Lawn Tractor (1994) FRAME, FENDER AND DRAWBAR Parts Diagram

Lawn Tractor

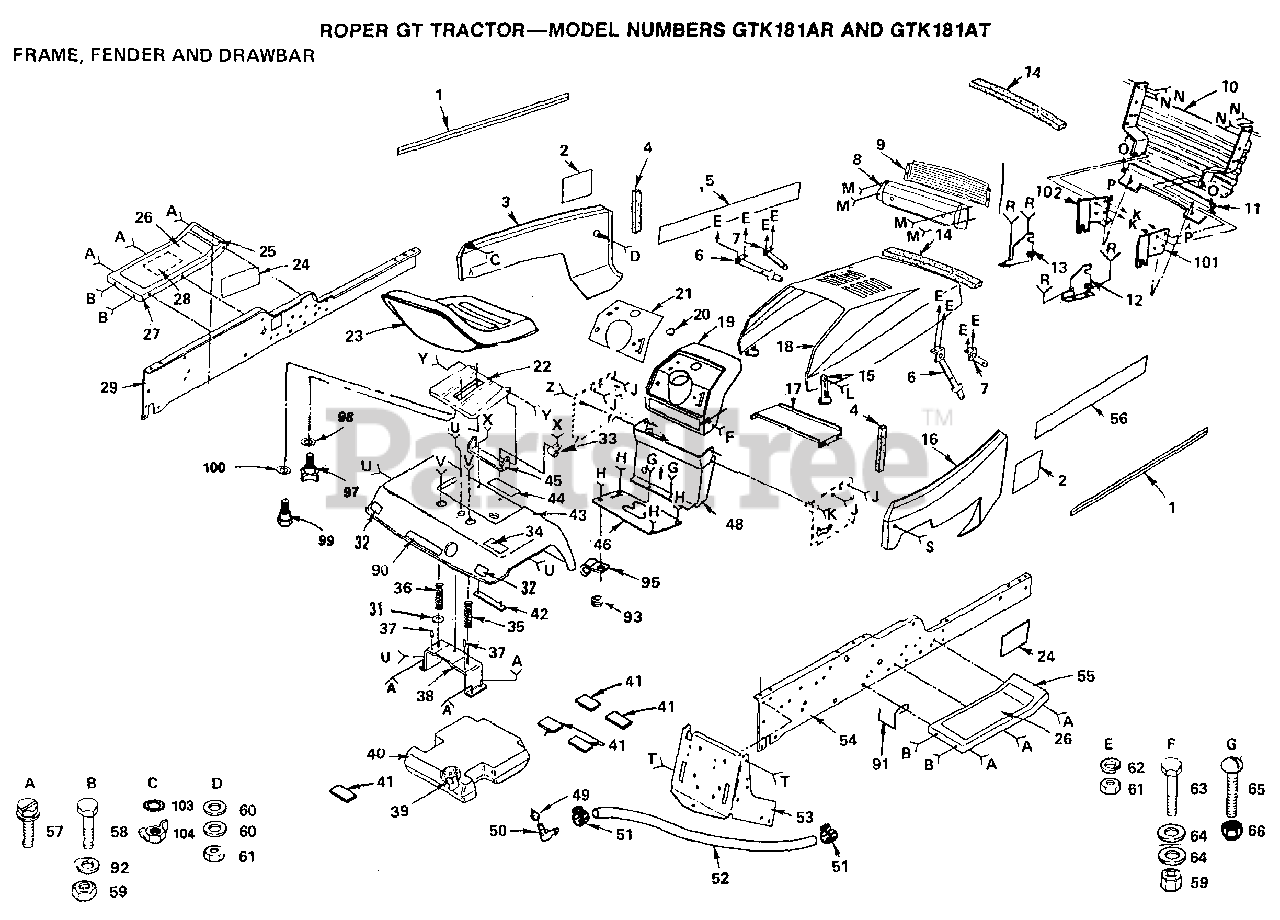

FRAME, FENDER AND DRAWBAR Parts Diagram

  • Title

1

Electrolux/AYP 104646X

NLA

$

$

Not available

2

Electrolux/AYP 104639X

NLA

$

$

Not available

3

Electrolux/AYP 108372X388

SUB= 150302X505

$

$

Not available

4

Electrolux/AYP 106088X

FOAM STRIP T
(Superseded to 532106088)

$

$

Not available

5

Electrolux/AYP 104643X

NLA

$

$

Not available

6

Electrolux/AYP 106784X

SUB= 155013

$

$

Not available

7

Electrolux/AYP 104618X

SUB= 155013

$

$

Not available

8

Electrolux/AYP 104613X

SUB= 147717
(Superseded to 583678801)

$

$

Not available

9

Electrolux/AYP 106395X

LENS LT
(Superseded to 583650801)

$37.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 104628X

GRILL GT

$60.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 105419X388

NLA

$

$

Not available

12

Electrolux/AYP 110853X

SUPPORT RH YTH
(Superseded to 532110853)

$

$

Not available

13

Electrolux/AYP 110852X

SUPPORT LH YTH
(Superseded to 532110852)

$

$

Not available

14

Electrolux/AYP 109458X

FOAM STRIP T
(Superseded to 532109458)

$

$

Not available

15

Electrolux/AYP 109808X

HOOD LATCH T
(Superseded to 532109808)

$6.99

$

In Stock, Qty 14

0

16

Electrolux/AYP 108371X388

SUB= 140679X505

$

$

Not available

17

Electrolux/AYP 7985X

SUPPORT-BATTERY

$

$

Not available

18

Electrolux/AYP 108370X388

SUB= 150301X505

$

$

Not available

19

Electrolux/AYP 106796X

DASHBOARD T

$83.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

21

Electrolux/AYP 110790X

NLA

$

$

Not available

21

Electrolux/AYP 110791X

DECAL-DASHBOARD (GTK181AT ONLY)

$

$

Not available

22

Electrolux/AYP 121069X

SUB= 155925

$

$

Not available

23

Electrolux/AYP 110840X

SUB= 140121

$

$

Not available

24

Electrolux/AYP 104640X

NLA

$

$

Not available

25

Electrolux/AYP 4900J

DECAL T

$

$

Not available

25

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

26

Electrolux/AYP 109864X

SUB= 108256X

$

$

Not available

27

Electrolux/AYP 105465X388

FOOTREST LH YT

$

$

Not available

28

Electrolux/AYP 106868X

DECAL T
(Superseded to 532106868)

$

$

Not available

29

Electrolux/AYP 110893X

SUB= 151630

$

$

Not available

31

Electrolux/AYP 120609X

SHIM WASHER T

$

$

Not available

32

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available

33

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

34

Electrolux/AYP 7178J

DECAL-CAUTION

$

$

Not available

34

Electrolux/AYP 101893X

NLA

$

$

Not available

35

Electrolux/AYP 121O67X

SPRING-COMPRESSION R.H.

$

$

Not available

36

Electrolux/AYP 121068X

SPRING T

$

$

Not available

37

Electrolux/AYP 105531X

NUT-PUSH YT
(Superseded to 532105531)

$2.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 105509X

SUB= 137113

$

$

Not available

39

Electrolux/AYP 109462X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 106020X

SUB= 151346

$

$

Not available

41

Electrolux/AYP 106082X

PAD-SPACER LT
(Superseded to 532106082)

$

$

Not available

42

Electrolux/AYP 105511X

SUB= 140675

$

$

Not available

43

Electrolux/AYP 109593X388

SUB= 121642X417

$

$

Not available

44

Electrolux/AYP 106974X

SUB= 133796

$

$

Not available

44

Electrolux/AYP 108658X

SUB= 120822X

$

$

Not available

45

Electrolux/AYP 105513X

SUB= 140551

$

$

Not available

46

Electrolux/AYP 106042X012

COVER GATE SHIFT

$

$

Not available

46

Electrolux/AYP 106042X013

CVR SHAFT GATE

$

$

Not available

48

Electrolux/AYP 104608X

DASH ASSEMBLY
(Superseded to 532104608)

$

$

Not available

49

Electrolux/AYP 3645J

BUSHING OUTLET T
(Superseded to 532003645)

$4.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 8710J

FUEL TANK STEM GT

$

$

Not available

51

Electrolux/AYP 6999R

SUB= 123487X

$

$

Not available

52

Electrolux/AYP 7834R

SUB= 8542R

$

$

Not available

53

Electrolux/AYP 7982J

SUB= 140506

$

$

Not available

54

Electrolux/AYP 110892X

SUB= 150383

$

$

Not available

55

Electrolux/AYP 105464X388

FOOTREST-R.H.

$

$

Not available

56

Electrolux/AYP 104644X

NLA

$

$

Not available

57

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

58

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

59

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 109091216

WASHER 9/32 X 3/4 X 16 GA..

$

$

Not available

61

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

62

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

63

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 74180512

SCREW
(Superseded to 874180512)

$

$

Not available

66

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

90

Electrolux/AYP 104810X

NLA

$

$

Not available

91

Electrolux/AYP 105500X

BELT RETAINER GT
(Superseded to 532105500)

$

$

Not available

92

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

93

Electrolux/AYP 109641X

GROMMET T
(Superseded to 583657901)

$2.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 4171R

CLIP T

$

$

Not available

97

Electrolux/AYP 120068X

"KNOB 1/2"" YT"
(Superseded to 532166369)

$10.99

$

In Stock, only 1 left!

0

98

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

99

Electrolux/AYP 121094X

BOLT T
(Superseded to 532121094)

$2.99

$

Usually ships in 3-10 days

0

100

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available

101

Electrolux/AYP 110854X

SUPPORT RH YTH

$

$

Not available

102

Electrolux/AYP 110855X

SUPPORT LH YTH
(Superseded to 532110855)

$

$

Not available

103

Electrolux/AYP 11030400

LOCKWASHER GT

$2.49

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 73490400

SUB= 146525

$

$

Not available
