AYP 8228 A49 - Electrolux/AYP Lawn Tractor (1994) Air Intake Parts Diagram

Lawn Tractor

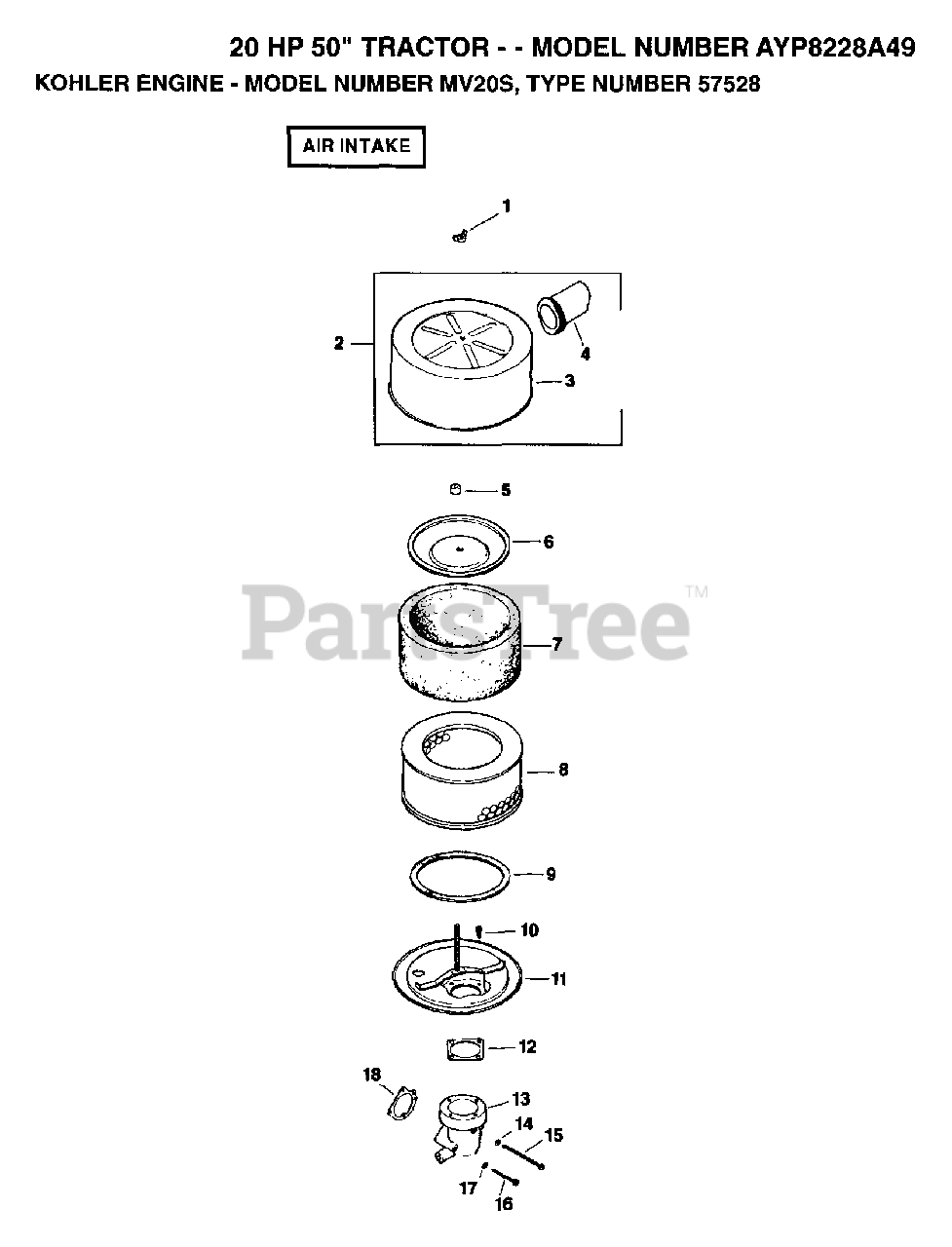

Air Intake Parts Diagram

  • Title

1

Kohler X-276-7

WING NUT
(Superseded to X-276-7-S)

$

$

Not available

2

Electrolux/AYP 52-755-83

KIT

$

$

Not available

3

Electrolux/AYP 52-096-35

COVER AIR CLEANER

$

$

Not available

4

Electrolux/AYP 52-123-21

TUBE AIR INTAKE

$

$

Not available

5

Kohler 231032

SEAL ELEMENT
(Superseded to 231032-S)

$8.49

$

Usually ships in 2-5 days

0

6

Electrolux/AYP 52-082-04

COVER AIR CLEANER ELEMENT

$

$

Not available

7

Electrolux/AYP 45-083-01

PRE-CLEANER

$

$

Not available

8

Electrolux/AYP 45-083-02

ELEMENT

$

$

Not available

9

Kohler 237423

SEAL
(Superseded to 237423-S)

$

$

Not available

10

Kohler X-67-98

SCREW
(Superseded to X-67-98-S)

$3.49

$

Usually ships in 2-5 days

0

11

Electrolux/AYP 52-201-06

BASE

$

$

Not available

12

Kohler 277093

GASKET
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 6

0

13

Electrolux/AYP 52-054-39

ELBOW AIR INTAKE

$

$

Not available

14

Kohler X-25-79

WASHER
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

15

Kohler X-50-37

SCREW
(Superseded to X-50-37-S)

$3.99

$

In Stock, only 4 left!

0

17

Kohler X-22-9

WASHER
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

Electrolux/AYP 25-113-15

DECAL, AIR CLEANER

$

$

Not available

Electrolux/AYP 52-113-30

DECAL

$

$

Not available
