AYP 8208 B39 - Electrolux/AYP Lawn Tractor (1993) KOHLER ENGINE-CRANKCASE/CARBURETOR Parts Diagram

Lawn Tractor

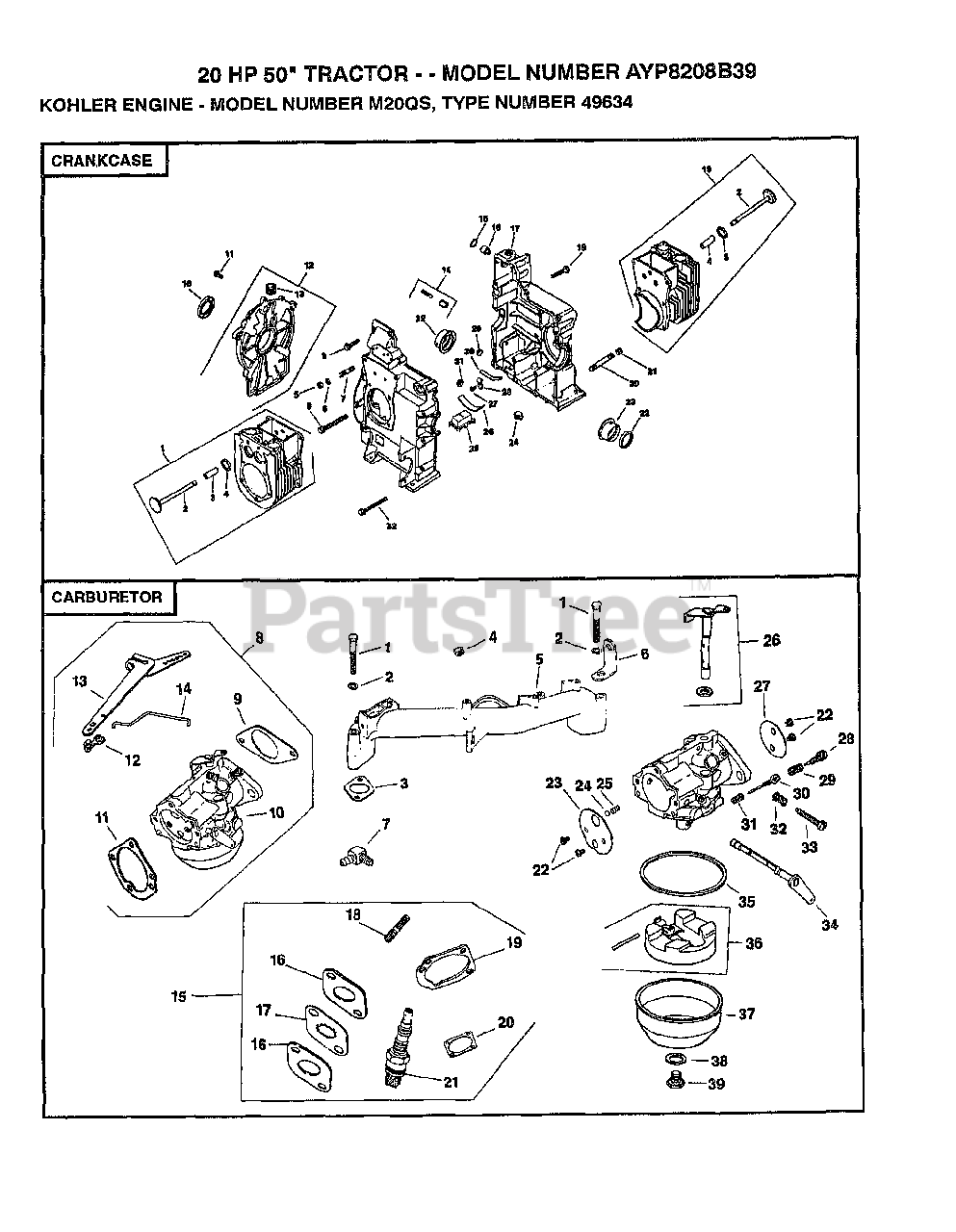

KOHLER ENGINE-CRANKCASE/CARBURETOR Parts Diagram

  • Title

1

Electrolux/AYP 82-755-19

KIT

$

$

Not available

2

Electrolux/AYP 52-016-06

VALVE

$

$

Not available

3

Electrolux/AYP 52-316-06

GUIDE

$

$

Not available

4

Electrolux/AYP 52-031-01

INSERT

$

$

Not available

5

Kohler X-82-2

NUT
(Superseded to 25 100 22-S)

$3.49

$

Usually ships in 2-5 days

0

6

Electrolux/AYP 52-468-12

WASHER

$

$

Not available

7

Electrolux/AYP 52-072-12

STEP STUD

$

$

Not available

8

Electrolux/AYP 25-086-13

SCREW

$

$

Not available

9

Electrolux/AYP 25-086-10

SCREW

$

$

Not available

10

Kohler X-583-5

SEAL
(Superseded to X-583-5-S)

$22.99

$

In Stock, only 1 left!

0

11

Kohler X-802-9

SCREW
(Superseded to X-802-9-S)

$

$

Not available

12

Electrolux/AYP 52-755-57

KIT, CLOSURE PLATE

$

$

Not available

13

Kohler X-75-23

PLUG
(Superseded to X-75-23-S)

$3.49

$

In Stock, only 2 left!

0

14

Electrolux/AYP 52-755-50

KIT

$

$

Not available

15

Kohler X-269-43

RING, RETAINING
(Superseded to X-269-43-S)

$3.99

$

Usually ships in 2-5 days

0

16

Electrolux/AYP 52-078-05

SHAFT

$

$

Not available

18

Electrolux/AYP 25-086-12

SCREW

$

$

Not available

19

Electrolux/AYP 82-755-18

KIT

$

$

Not available

20

Electrolux/AYP 12-136-07

NIPPLE, PIPE

$

$

Not available

21

Electrolux/AYP 12-173-03

CAP, PIPE

$

$

Not available

22

Electrolux/AYP 52-032-10

SEAL

$

$

Not available

23

Electrolux/AYP 52-030-10

BEARING

$

$

Not available

23

Electrolux/AYP 52-030-11

BEARING

$

$

Not available

23

Electrolux/AYP 52-030-12

BEARING

$

$

Not available

24

Kohler X-75-32

PLUG
(Superseded to 25 139 62-S)

$3.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 52-095-03

HOUSING, OIL PICKUP

$

$

Not available

26

Electrolux/AYP 52-237-02

CLAMP, SPRING

$

$

Not available

27

Kohler X-67-64

SCREW
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

28

Electrolux/AYP 52-237-05

CLAMP, TUBE

$

$

Not available

29

Kohler X-702-15

PLUG, CUP
(Superseded to X-702-15-S)

$2.99

$

Usually ships in 2-5 days

0

30

Electrolux/AYP 52-123-10

TUBE, DIPSTICK

$

$

Not available

31

Electrolux/AYP 52-139-08

PLUG

$

$

Not available

32

Electrolux/AYP 52-032-10

SEAL

$

$

Not available

33

Electrolux/AYP 25-086-11

SCREW

$

$

Not available

1

Kohler X-6-8

SCREW
(Superseded to X-6-8-S)

$2.49

$

Usually ships in 2-5 days

0

2

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

3

Electrolux/AYP 52-041-09

GASKET

$

$

Not available

4

Kohler X-77-2

NUT
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

5

Electrolux/AYP 52-164-10

MANIFOLD, INTAKE

$

$

Not available

6

Electrolux/AYP 52-445-02

STRAP, LIFTING

$

$

Not available

7

Electrolux/AYP 25-155-02

CONNECTOR

$

$

Not available

8

Electrolux/AYP 52-853-27

KIT, CARBURETOR WITH GASKET

$

$

Not available

9

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

11

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

12

Electrolux/AYP 25-158-11

BUSHING

$

$

Not available

13

Electrolux/AYP 52-186-06

ARM, GOVERNOR

$

$

Not available

14

Electrolux/AYP 82-755-07

KIT, GOVERNOR LINKAGE

$

$

Not available

15

Electrolux/AYP 82-755-24

KIT, CARBURETOR BAFFLE

$

$

Not available

16

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

17

Electrolux/AYP 52-063-40

BAFFLE

$

$

Not available

18

Electrolux/AYP 41-072-19

STUD

$

$

Not available

19

Electrolux/AYP 25-041-06

GASKET, AIR CLEANER

$

$

Not available

20

Kohler 277093

GASKET
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 6

0

21

Electrolux/AYP 52-132-02

SPARK PLUG

$

$

Not available

22

Electrolux/AYP 25-086-27

SCREW

$

$

Not available

23

Electrolux/AYP 25-146-03

PLATE, CHOKE

$

$

Not available

24

Electrolux/AYP 25-194-01

BALL

$

$

Not available

25

Electrolux/AYP 25-089-03

SPRING

$

$

Not available

26

Electrolux/AYP 52-144-18

SHAFT, THROTTLE WITH LEVER AND SEAL

$

$

Not available

27

Electrolux/AYP 25-146-02

PLATE

$

$

Not available

28

Electrolux/AYP 25-368-01

NEEDLE

$

$

Not available

29

Electrolux/AYP 25-089-02

SPRING

$

$

Not available

30

Electrolux/AYP 25-086-26

SCREW

$

$

Not available

31

Electrolux/AYP 25-089-04

SPRING

$

$

Not available

32

Electrolux/AYP 25-089-02

SPRING

$

$

Not available

33

Electrolux/AYP 25-368-03

NEEDLE

$

$

Not available

34

Electrolux/AYP 52-090-12

LEVER, CHOKE

$

$

Not available

35

Electrolux/AYP 25-041-04

GASKET

$

$

Not available

36

Electrolux/AYP 25-757-09

KIT

$

$

Not available

37

Electrolux/AYP 25-104-01

BOWL, FUEL

$

$

Not available

38

Electrolux/AYP 25-041-03

GASKET

$

$

Not available

39

Electrolux/AYP 25-100-05

SCREW, BOWL RETAINER

$

$

Not available

Electrolux/AYP 25-757-11

KIT, CARB. REPAIR

$

$

Not available
