AYP 8208 A39 - Electrolux/AYP Lawn Tractor (1993) KOHLER ENGINE CARBURETOR Parts Diagram

Lawn Tractor

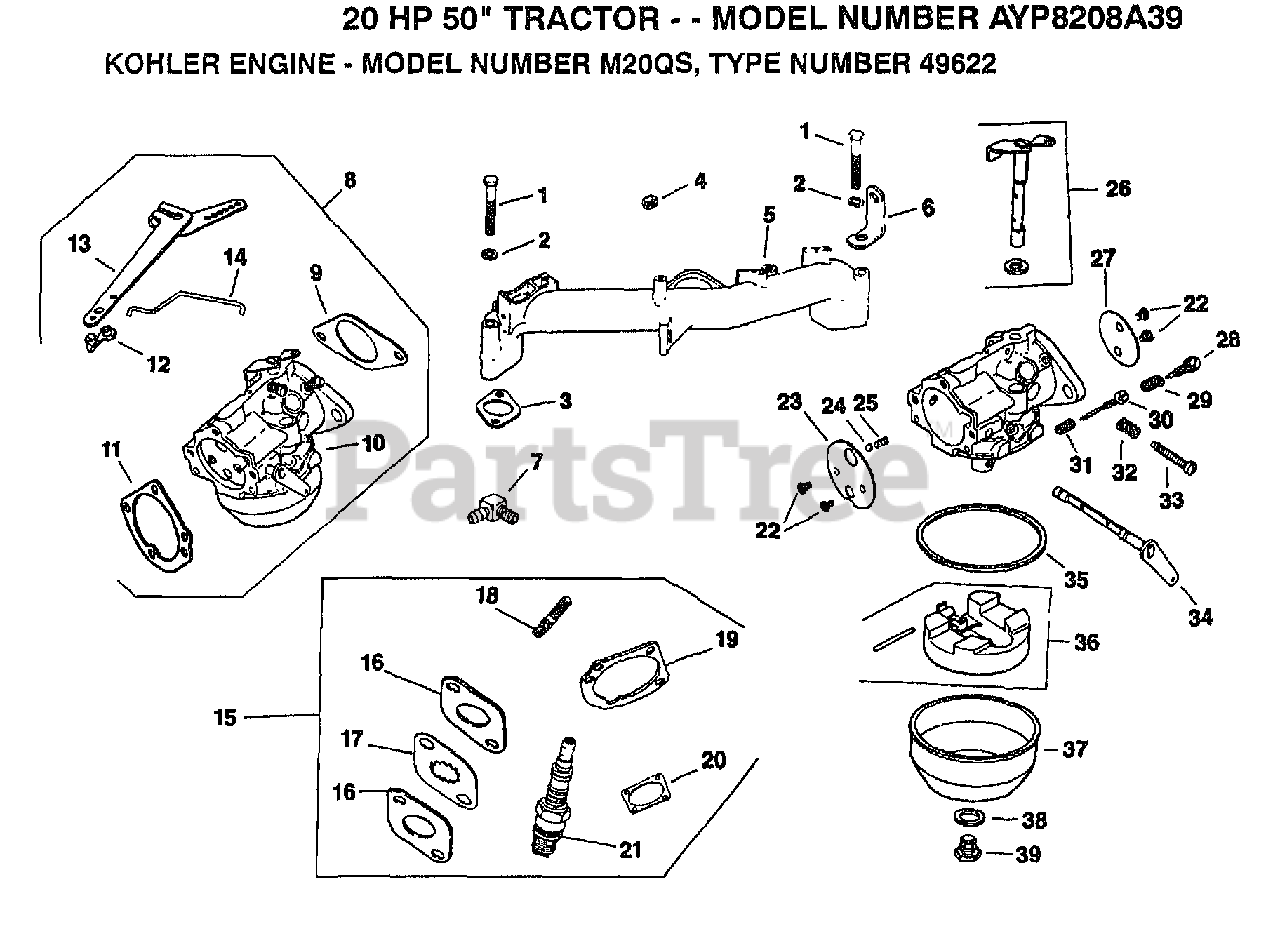

KOHLER ENGINE CARBURETOR Parts Diagram

  • Title

1

Kohler X-6-8

SCREW
(Superseded to X-6-8-S)

$2.49

$

Usually ships in 2-5 days

0

2

Kohler X-21-1

WASHER
(Superseded to X-21-1-S)

$3.99

$

In Stock, only 3 left!

0

3

Electrolux/AYP 5204109

GASKET, INTAKE

$

$

Not available

4

Kohler X-77-2

NUT
(Superseded to X-77-2-S)

$3.49

$

Usually ships in 2-5 days

0

5

Electrolux/AYP 5216410

MANIFOLD, INTAKE

$

$

Not available

6

Electrolux/AYP 5244502

STRAP, LIFTING

$

$

Not available

7

Kohler 2515502

CONNECTOR, HOSE

$

$

Not available

8

Electrolux/AYP 5285327

KIT, CABURETOR WITH GASKET

$

$

Not available

9

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

10

Electrolux/AYP 5205358

CARBURETOR ASSEMBLY

$

$

Not available

10

Electrolux/AYP 5205363

CARBURETOR ASSEMBLY

$

$

Not available

11

Electrolux/AYP 2504106

GASKET, AIR CLEANER ELBOW

$

$

Not available

12

Electrolux/AYP 2515811

BUSHING

$

$

Not available

13

Electrolux/AYP 5218606

ARM, GOVERNOR

$

$

Not available

14

Electrolux/AYP 8275507

KIT, GOVERNOR LINKAGE

$

$

Not available

15

Electrolux/AYP 8275524

KIT, CARBURETOR BAFFLE

$

$

Not available

16

Kohler 271030

GASKET
(Superseded to 271030-S)

$7.49

$

Usually ships in 2-5 days

0

17

Electrolux/AYP 5206340

BAFFLE, CARBURETOR

$

$

Not available

18

Electrolux/AYP 4107219

STUD

$

$

Not available

19

Electrolux/AYP 2504106

GASKET, AIR CLEANER ELBOW

$

$

Not available

20

Kohler 277093

GASKET
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 6

0

21

Electrolux/AYP 5213202

SPARK PLUG

$

$

Not available

22

Electrolux/AYP 2508627

SCREW

$

$

Not available

23

Electrolux/AYP 2514603

PLATE, CHOKE

$

$

Not available

24

Electrolux/AYP 2519401

BALL, CHOKE, FRICTION

$

$

Not available

25

Electrolux/AYP 2508903

SPRING, CHOKE, FRICTION

$

$

Not available

26

Electrolux/AYP 5214418

SHAFT, THROTTLE WITH LEVER AND SEAL

$

$

Not available

27

Electrolux/AYP 2514602

PLATE, THROTTLE

$

$

Not available

28

Electrolux/AYP 2536801

NEEDLE, IDLE FUEL ADJUST

$

$

Not available

29

Electrolux/AYP 2508902

SPRING, IDLE, FUEL

$

$

Not available

30

Electrolux/AYP 2508626

SCREW

$

$

Not available

31

Electrolux/AYP 2508904

SPRING, IDLE SPEED

$

$

Not available

32

Electrolux/AYP 2508902

SPRING, IDLE, FUEL

$

$

Not available

33

Electrolux/AYP 2536803

NEEDLE, MAIN FUEL

$

$

Not available

34

Electrolux/AYP 5209012

LEVER, CHOKE

$

$

Not available

35

Electrolux/AYP 2504104

GASKET, BOWL

$

$

Not available

36

Electrolux/AYP 2575709

KIT, FLOAT

$

$

Not available

37

Electrolux/AYP 2510401

BOWL, FUEL

$

$

Not available

38

Electrolux/AYP 2504103

GASKET, BOWL RETAINER SCREW

$

$

Not available

39

Electrolux/AYP 2510005

SCREW

$

$

Not available

Electrolux/AYP 2575711

KIT, CARBURETOR REPAIR

$

$

Not available
