AYP 8208 A39 - Electrolux/AYP Lawn Tractor (1993) ELECTRICAL Parts Diagram

Lawn Tractor

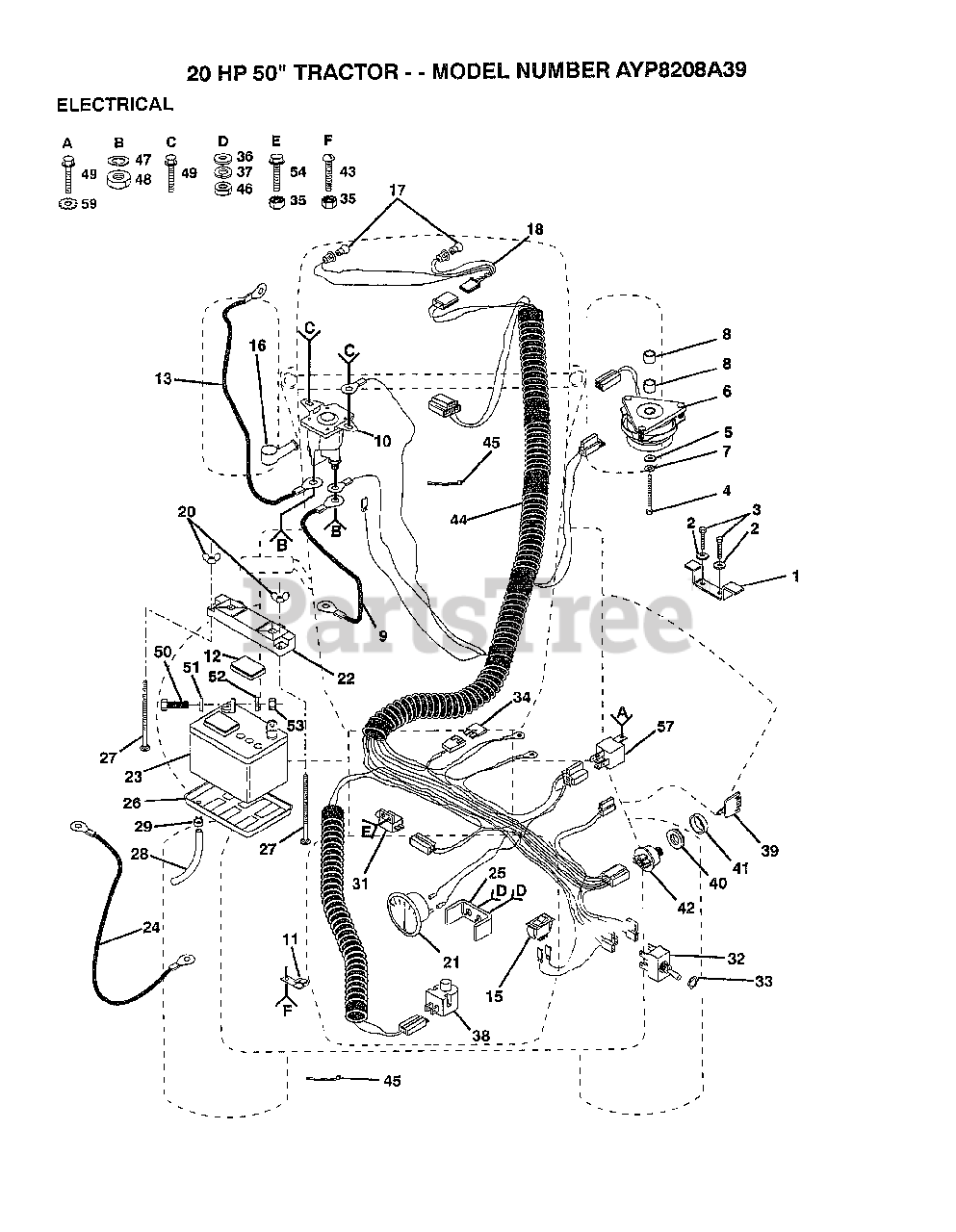

ELECTRICAL Parts Diagram

  • Title

$

$

Not available

2

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 74780612

BOLT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 71130724

SUB= 871130724

$

$

Not available

5

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

6

$

$

Not available

7

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 128224

SPACER-CLUTCH
(Superseded to 582945401)

$11.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

10

Electrolux/AYP 138406

SUB= 146154
(Superseded to 532138406)

$24.99

$

In Stock, only 2 left!

0

$

$

Not available

12

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

13

Electrolux/AYP 129458

"CABLE,STARTER T"
(Superseded to 532185456)

$36.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 4 left!

0

16

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 127441X

SUB= 136850
(Superseded to 136850)

$

$

Not available

20

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

21

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

23

Electrolux/AYP 121537X

SUB= 123899X

$

$

Not available

24

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 131708

SUB= 532131708

$

$

Not available

26

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

28

$

$

Not available

29

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

32

$

$

Not available

33

Electrolux/AYP 4022J

HEX NUT T
(Superseded to 532004022)

$

$

Not available

34

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 73951000

"NUT,KEPS"
(Superseded to 873951000)

$5.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 10101000

SUB= 10071000

$

$

Not available

38

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

39

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

40

Electrolux/AYP 124211X

NUT IGNITION
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

41

Electrolux/AYP 123620X

SUB= 141226
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 4406R

SUB= STD365402

$

$

Not available

43

Electrolux/AYP 74641008

SUB= 71031008

$

$

Not available

44

Electrolux/AYP 135337

HARNESS
(Superseded to 582065001)

$122.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

$

$

Not available

47

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

48

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

49

Electrolux/AYP 17220408

SCREW, HEX WASHER HD. CUTTING 1/4-20X1/2

$

$

Not available

50

CHECK WITH SUPPLIER

$

$

Not available

51

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

53

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

54

Electrolux/AYP 71031008

SCREW
(Superseded to 874641008)

$2.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0
