AYP 8208 A29 - Electrolux/AYP Lawn Tractor (1992) MOWER DECK Parts Diagram

Lawn Tractor

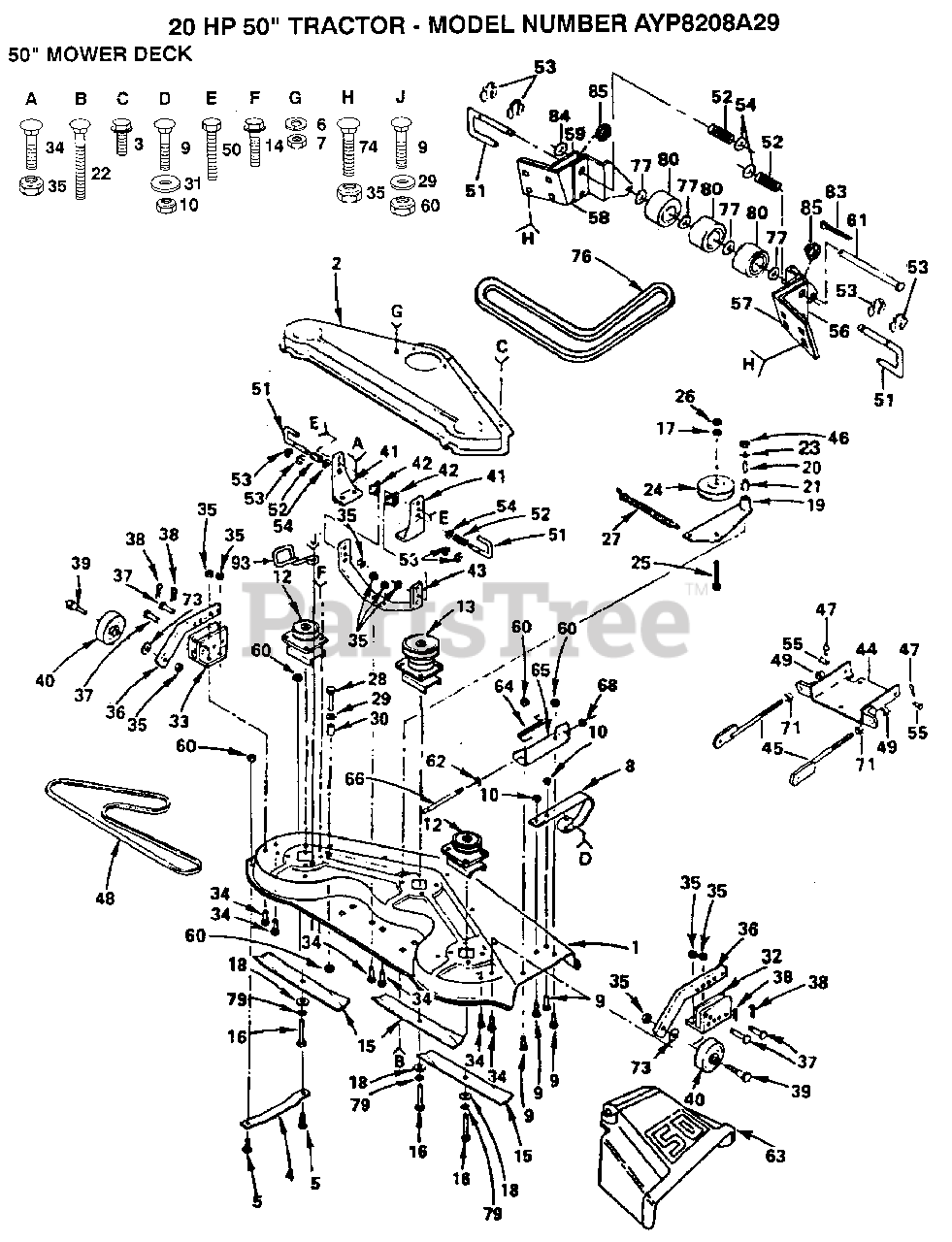

MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 121664X

SUB= 123760X

$

$

Not available

2

Electrolux/AYP 121811X

CVR DRIVE DECK
(Superseded to 532121811)

$70.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 72110505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

8

$

$

Not available

9

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 1685H

SUB= 68478
(Superseded to 532001685)

$

$

Not available

12

$

$

Not available

13

Electrolux/AYP 121657X

JACKSHAFT
(Superseded to 532121657)

$

$

Not available

14

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 121798X

"BLADE.50""STD.LIFT"
(Superseded to 532121798)

$27.99

$

In Stock, only 2 left!

0

16

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

17

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 674A213

ARM ASSY GT
(Superseded to 532124685)

$

$

Not available

20

Electrolux/AYP 7834J

SUB= 674A308

$

$

Not available

21

Electrolux/AYP 7835J

SUB= 674A308

$

$

Not available

22

Electrolux/AYP 72110522

BOLT
(Superseded to 872110522)

$4.99

$

Usually ships in 3-10 days

0

23

$

$

Not available

24

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$39.99

$

In Stock, only 1 left!

0

25

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

27

Electrolux/AYP 104361X

SPRING T
(Superseded to 532104361)

$

$

Not available

28

Electrolux/AYP 74780520

BOLT
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 8438J

SPACER SPLIT LT
(Superseded to 532008438)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

32

Electrolux/AYP 105448X

GUAGE WHL BRKT GT
(Superseded to 532105448)

$

$

Not available

33

Electrolux/AYP 105449X

GUAGE WHL BRKT GT
(Superseded to 532105449)

$

$

Not available

34

Electrolux/AYP 72240606

BOLT
(Superseded to 872240606)

$2.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 105453X

GUAGE WHL BAR GT
(Superseded to 532105453)

$

$

Not available

37

Electrolux/AYP 5565J

SUB= 139031
(Superseded to 532139031)

$6.49

$

Usually ships in 3-10 days

0

38

Murray 4939M

SUB= 85902

$

$

Not available

39

Electrolux/AYP 4898H

BOLT M
(Superseded to 596434402)

$4.99

$

In Stock, only 3 left!

0

40

Electrolux/AYP 105455X

WHEEL.GAGE.BLK.PL
(Superseded to 532105455)

$18.99

$

In Stock, only 2 left!

0

41

Electrolux/AYP 105433X

SUSP BRKT GT
(Superseded to 532105433)

$

$

Not available

42

Electrolux/AYP 110237X

SPACER GT
(Superseded to 532110237)

$3.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 105434X

SUSP BRACE GT
(Superseded to 532105434)

$7.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 109778X

SUB= 140741X431

$

$

Not available

45

Electrolux/AYP 109771X

BRACKET.SUSPEN.AS
(Superseded to 532109771)

$

$

Not available

46

Electrolux/AYP 73350500

JAM NUT TI
(Superseded to 873350500)

$8.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

48

Electrolux/AYP 3703J

V-BELT M
(Superseded to 532003703)

$66.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 73680800

NUT LTV
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

50

Electrolux/AYP 74760622

BOLT
(Superseded to 874760622)

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 105435X

RELEASE PIN GT
(Superseded to 532105435)

$

$

Not available

52

Electrolux/AYP 3720R

SPRING M
(Superseded to 532003720)

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

$2.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 105440X

CLEVIS PIN GT
(Superseded to 532105440)

$

$

Not available

56

Electrolux/AYP 105458X

BRACKET T
(Superseded to 532105458)

$

$

Not available

57

Electrolux/AYP 109773X

BRACKET T
(Superseded to 532109773)

$

$

Not available

58

Electrolux/AYP 110997X

BRACKET T
(Superseded to 532110997)

$

$

Not available

59

Electrolux/AYP 120000X

BRACKET T
(Superseded to 532120000)

$4.99

$

Usually ships in 3-10 days

0

60

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

61

Electrolux/AYP 109776X

PIVOT PIN T
(Superseded to 532109776)

$8.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 110509X

DEFLECTOR
(Superseded to 532110509)

$

$

Not available

64

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

65

Electrolux/AYP 109743X

SUB= 137607
(Superseded to 532109743)

$

$

Not available

66

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$10.99

$

In Stock, only 1 left!

0

68

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 73220800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

73

Electrolux/AYP 19171512

WASHER
(Superseded to 819171512)

$3.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 72240608

BOLT
(Superseded to 872240608)

$4.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 110884X

BELT-V.93.5.MWR
(Superseded to 532110884)

$45.99

$

In Stock, only 3 left!

0

77

Electrolux/AYP 19151610

WASHER T
(Superseded to 819151610)

$

$

Not available

79

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

80

Electrolux/AYP 109729X

ROLLER T
(Superseded to 532109729)

$

$

Not available

83

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

84

Electrolux/AYP 19151616

SUB= 19171616

$

$

Not available

85

Electrolux/AYP 120135X

SPACER T
(Superseded to 532120135)

$

$

Not available

93

Electrolux/AYP 121352X

BELT RETIANER
(Superseded to 532121352)

$

$

Not available

Electrolux/AYP 134765

SUB= 138513

$

$

Not available
